AIR MEDICAL AIRCRAFT CONVERSIONS & COMPLETIONS

Fargo Jet Center has completed numerous air ambulance aircraft conversions on airframes ranging from Cessna Caravans, Citations, Pilatus PC-12s, Beechcraft King Airs, Lear 45s, and Lear 75s. As each client has a different need for their mission, our team of experts is able to provide full custom air medical design and installation solutions to suit those needs.

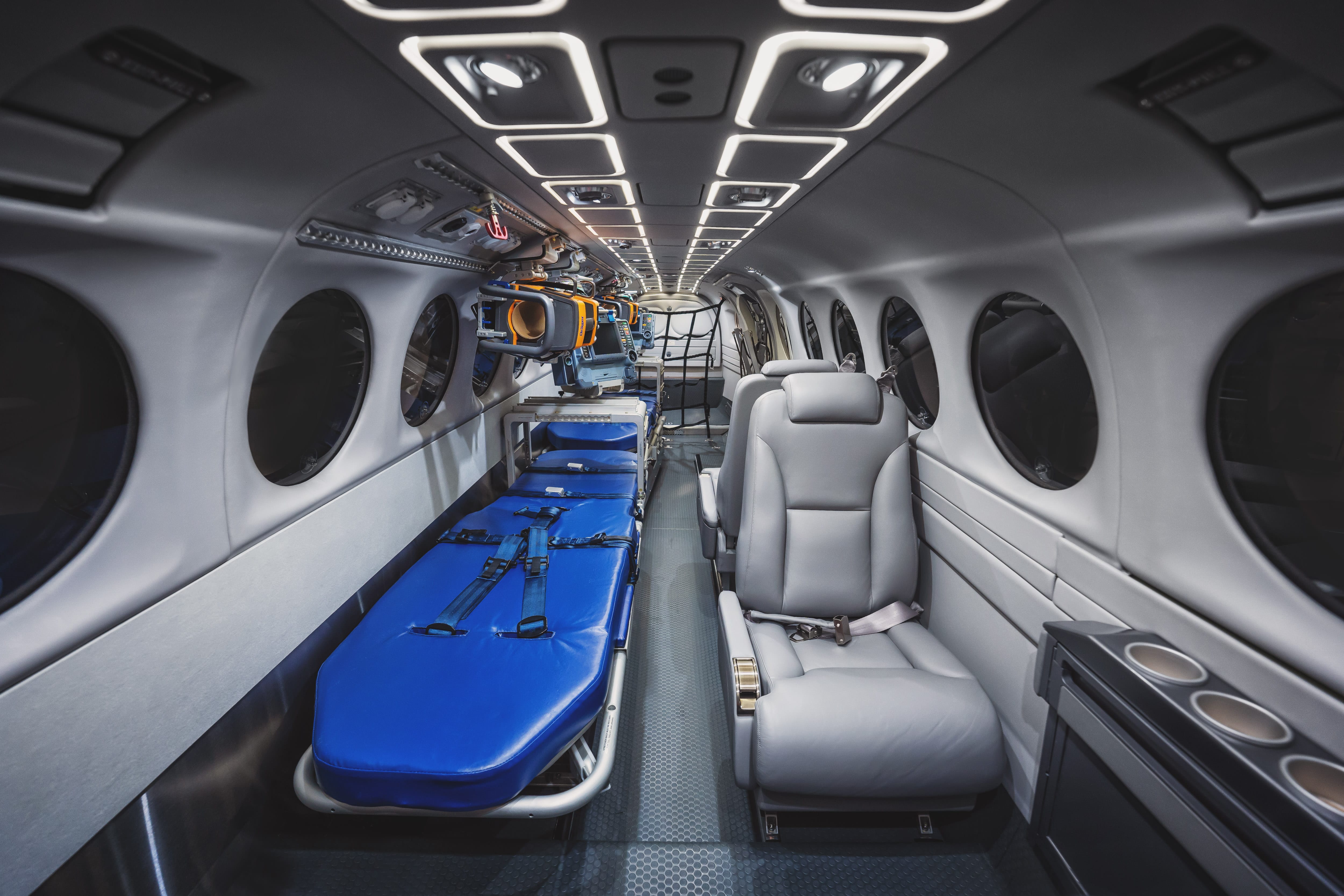

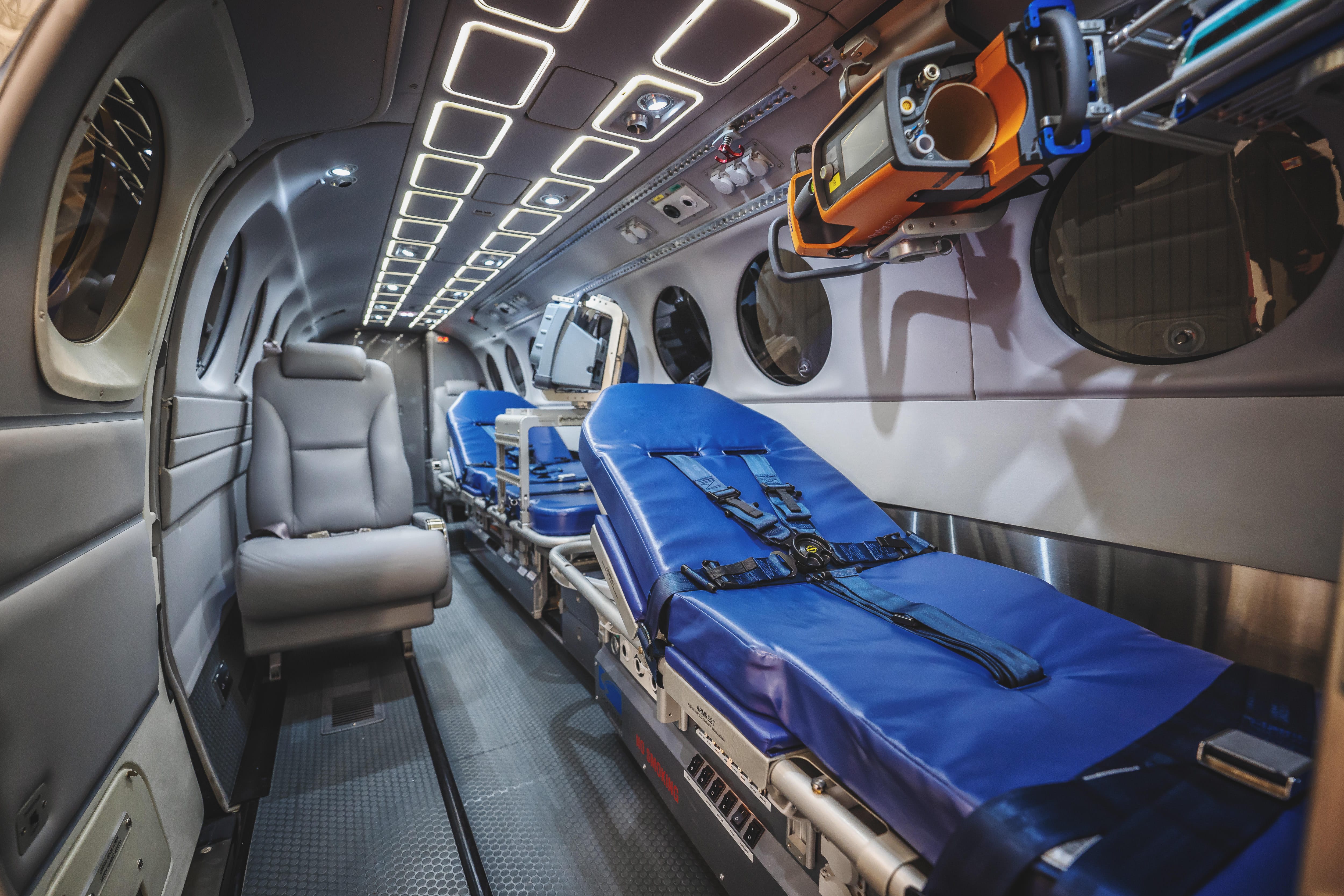

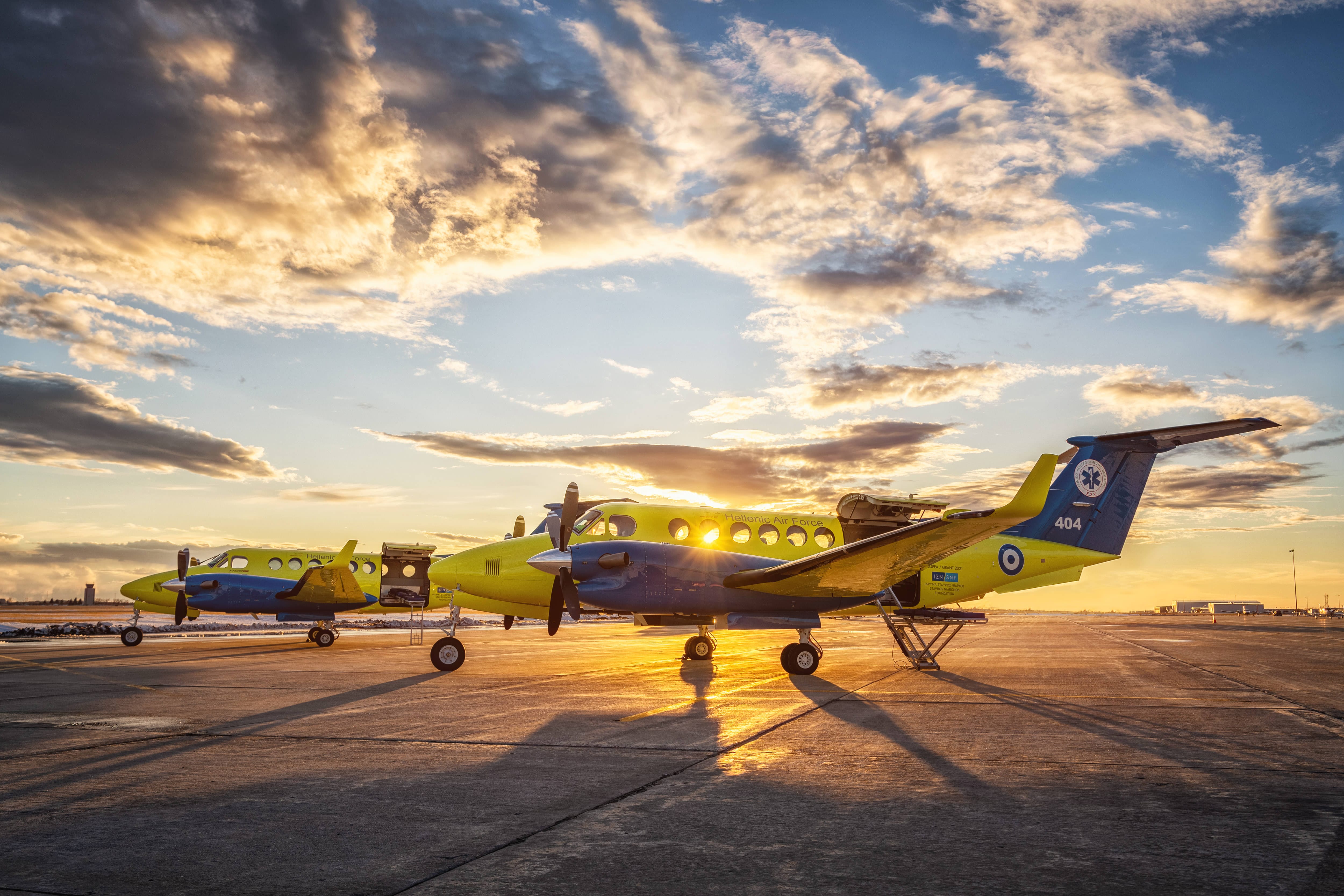

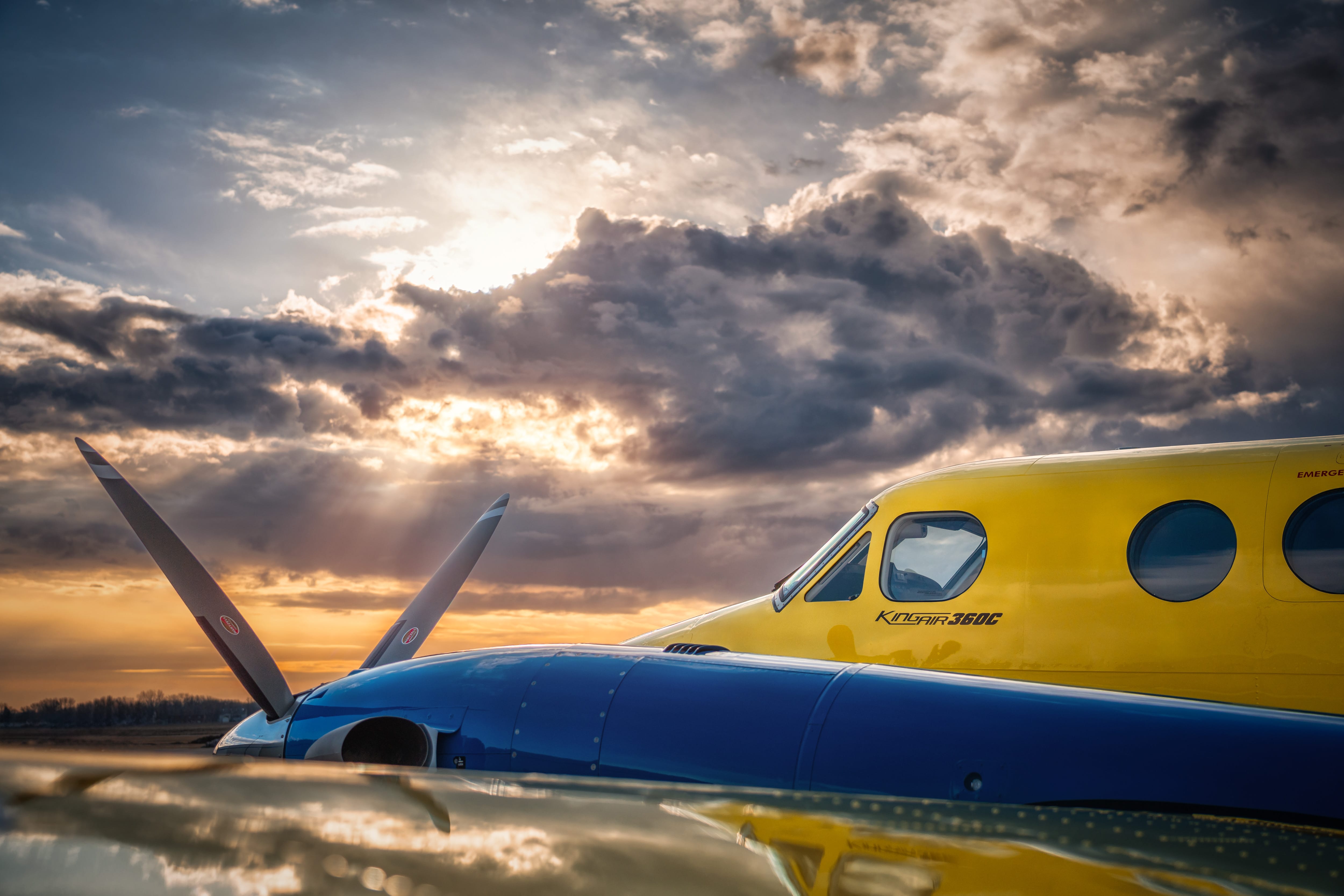

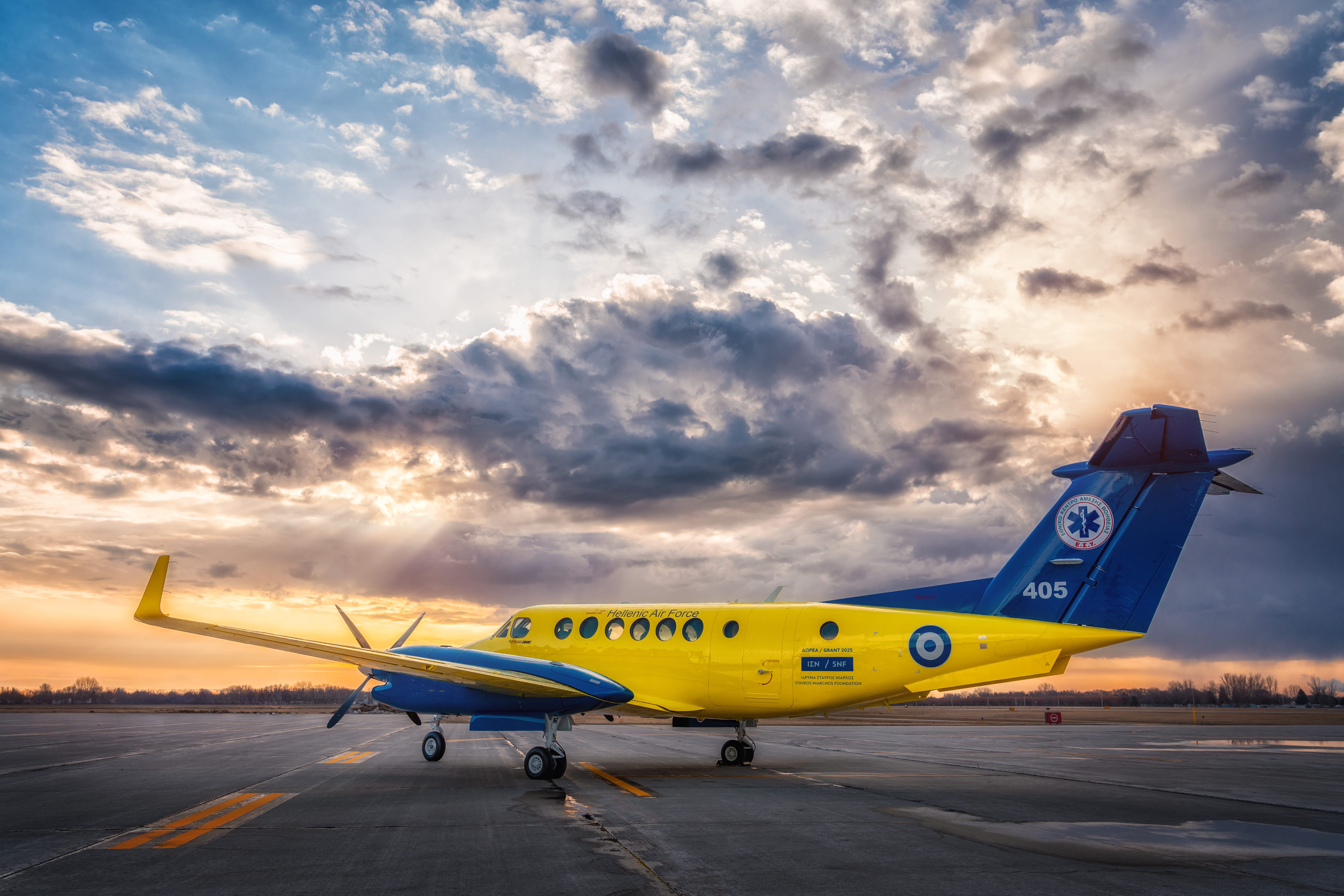

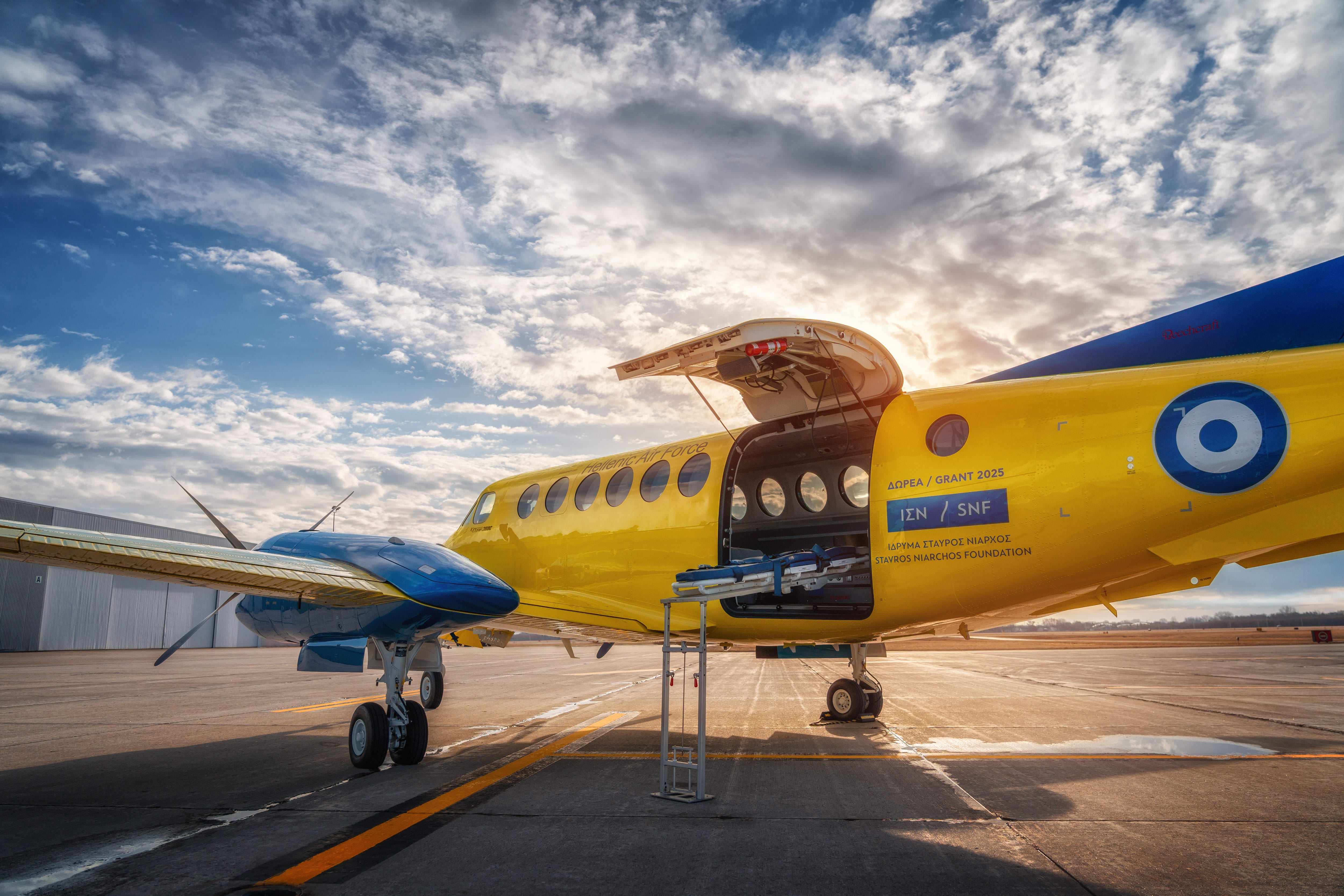

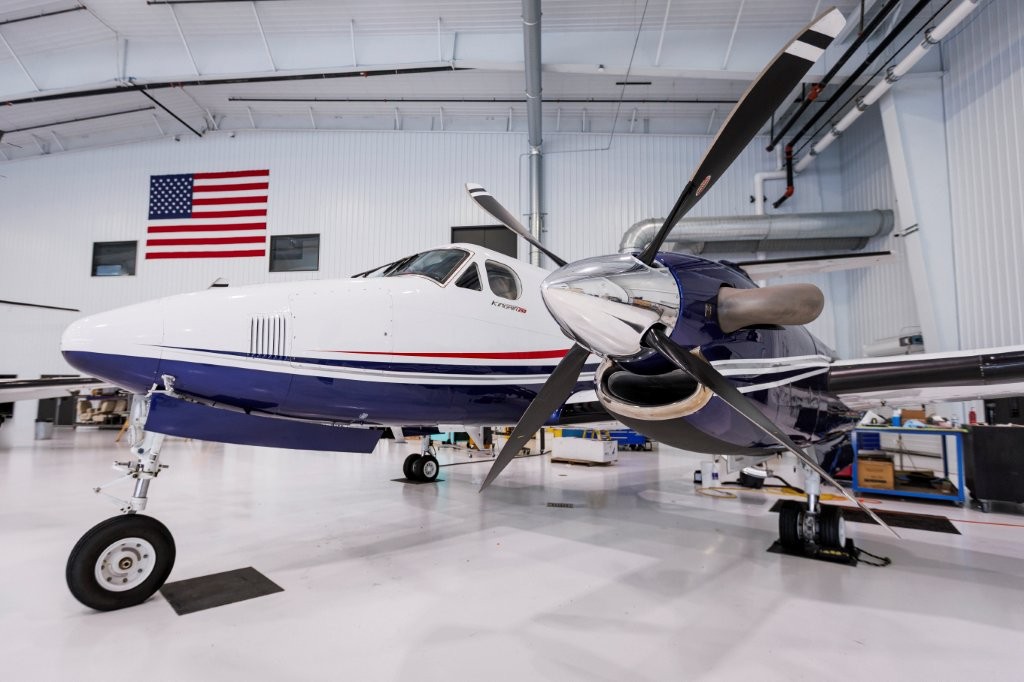

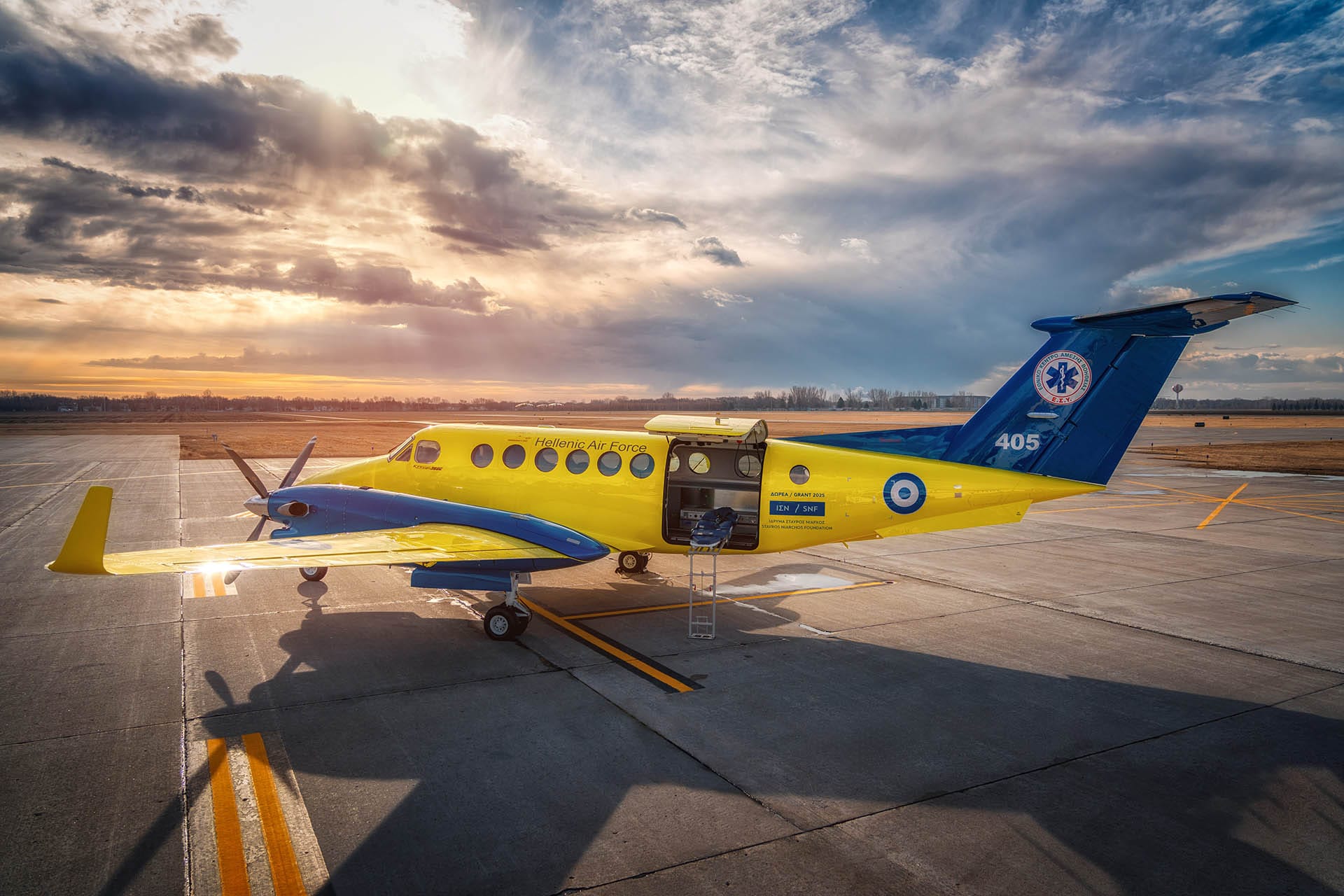

BEECHCRAFT KING AIR 350

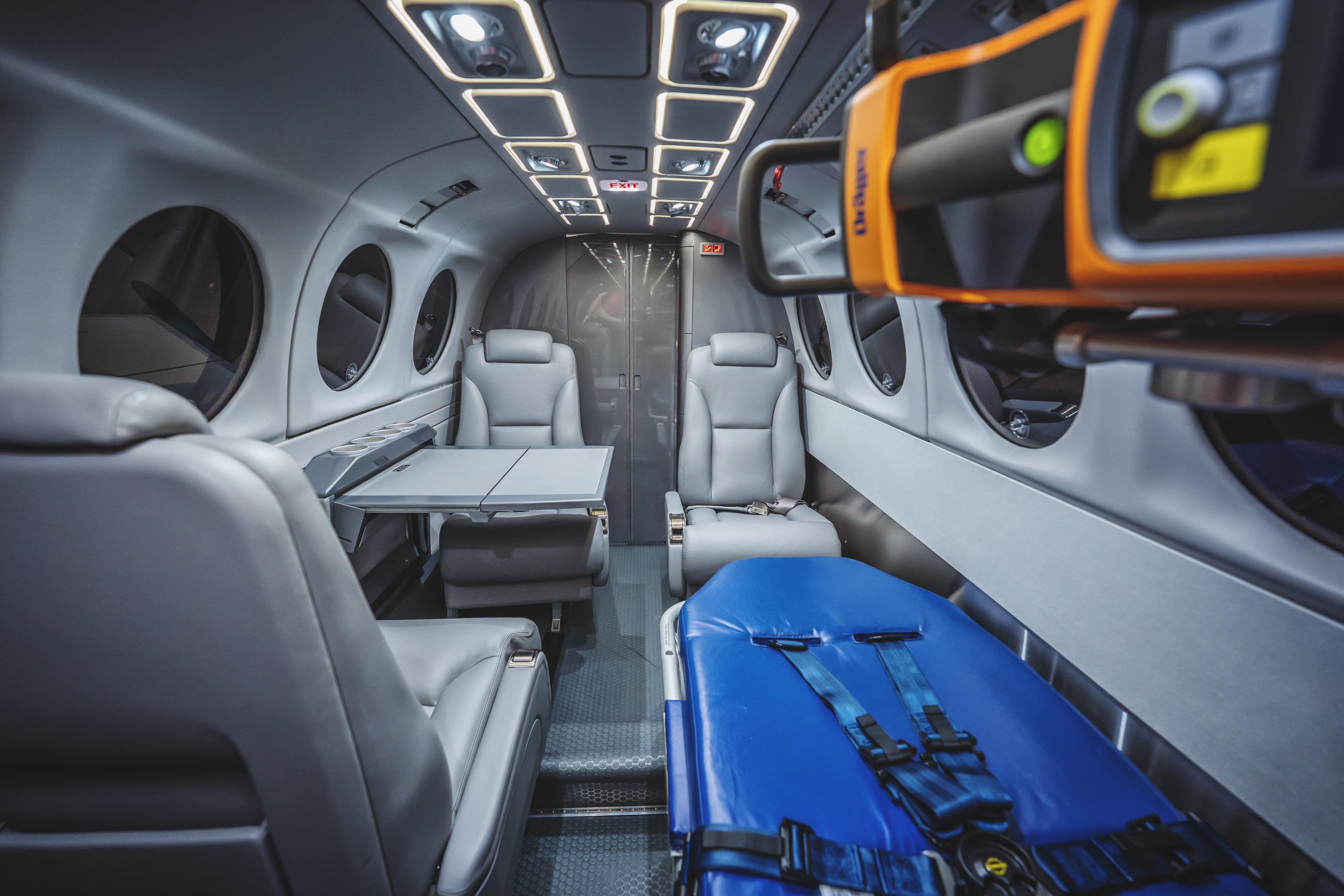

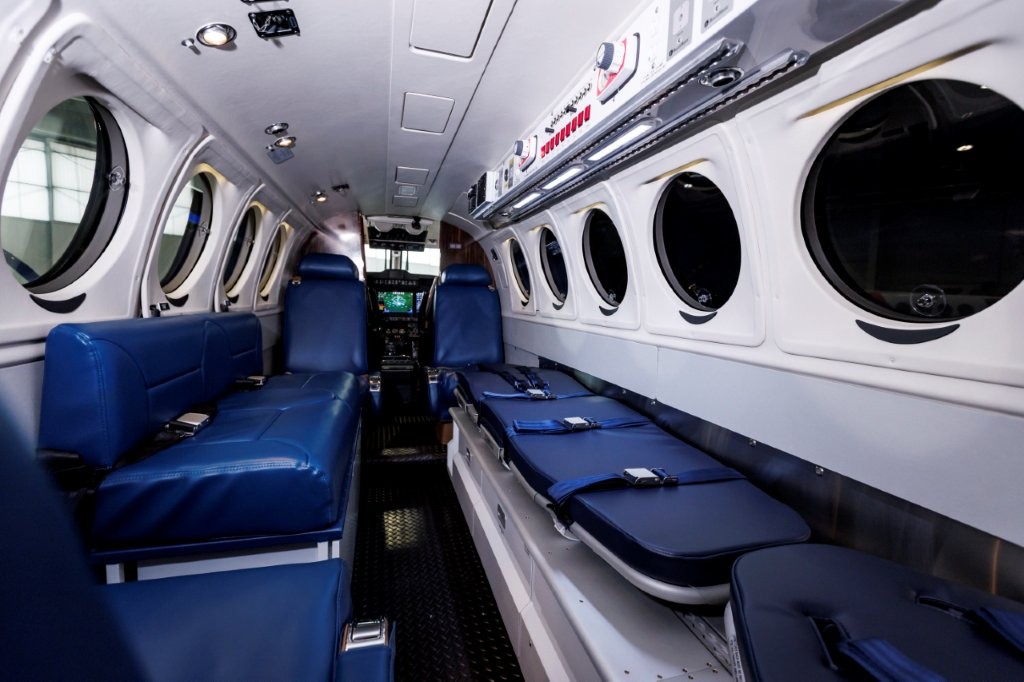

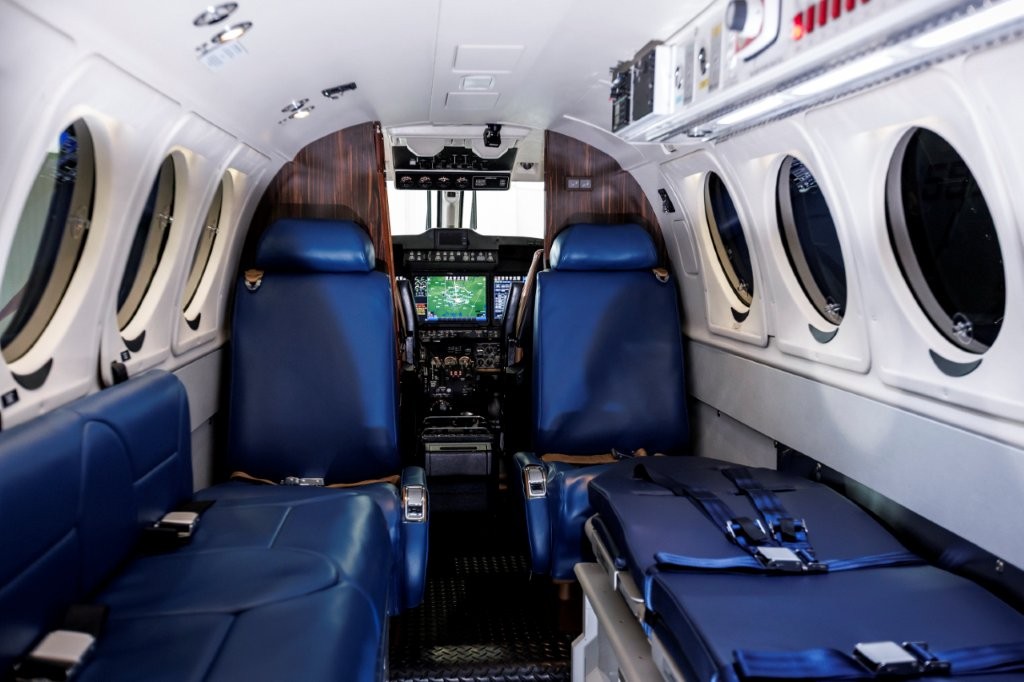

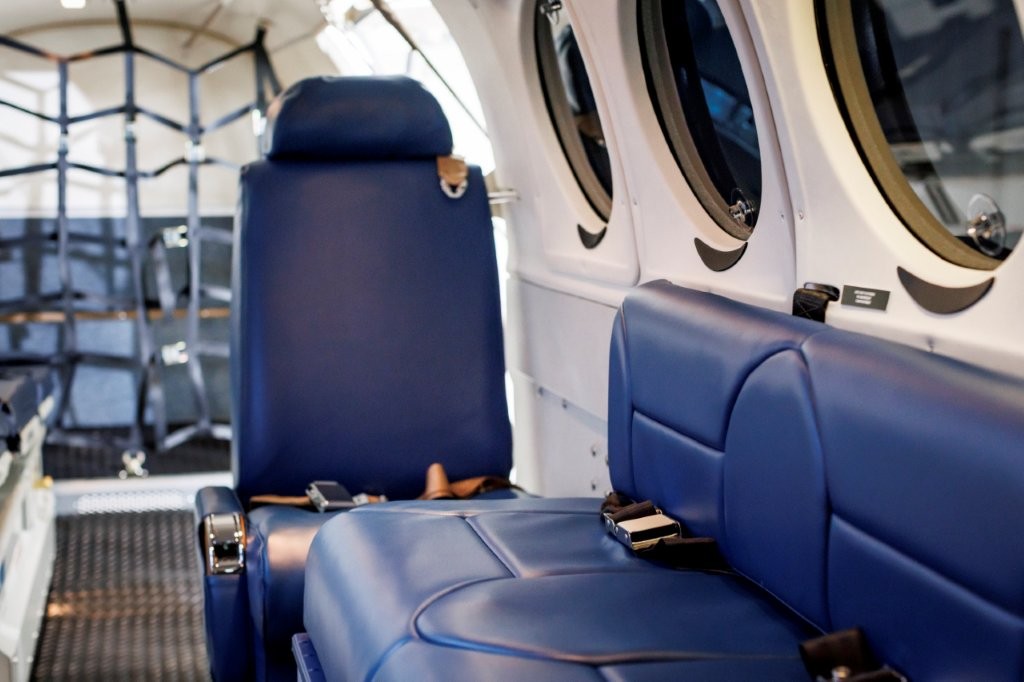

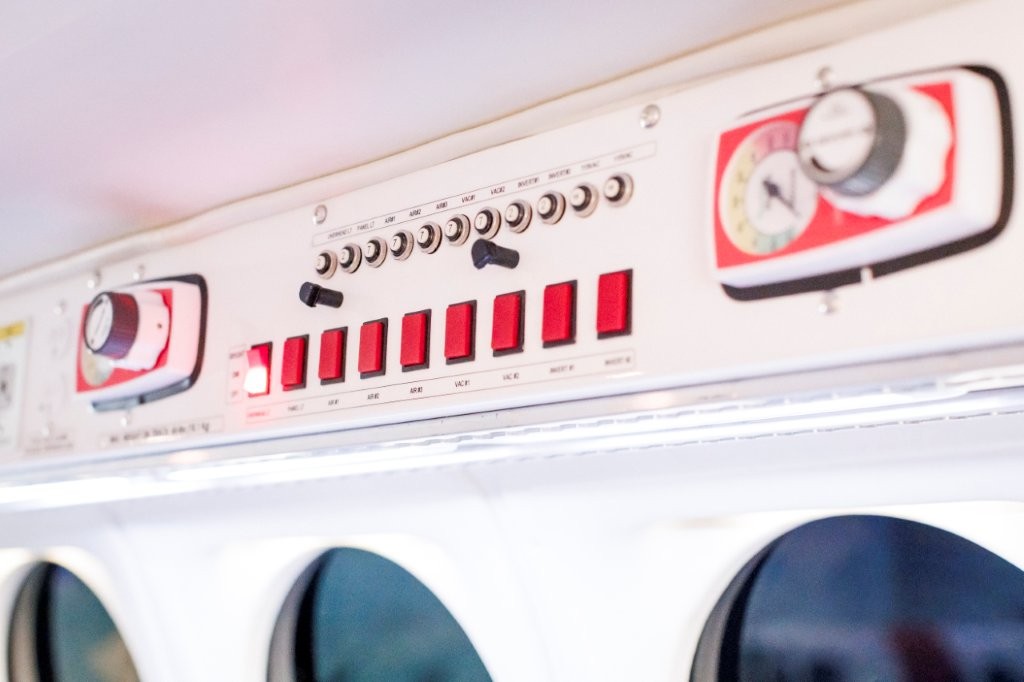

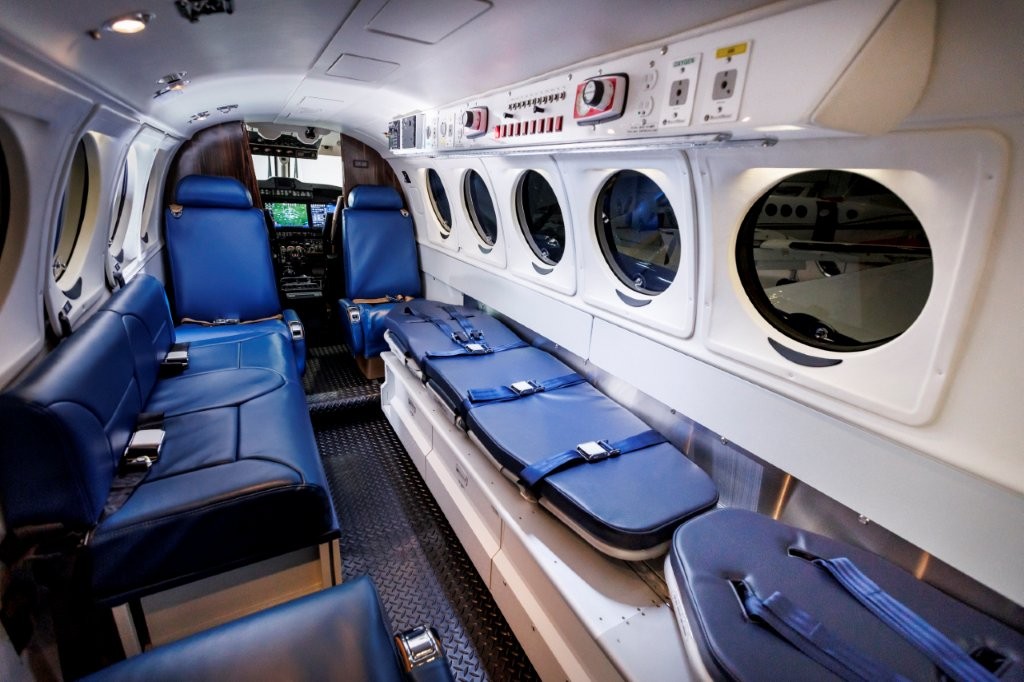

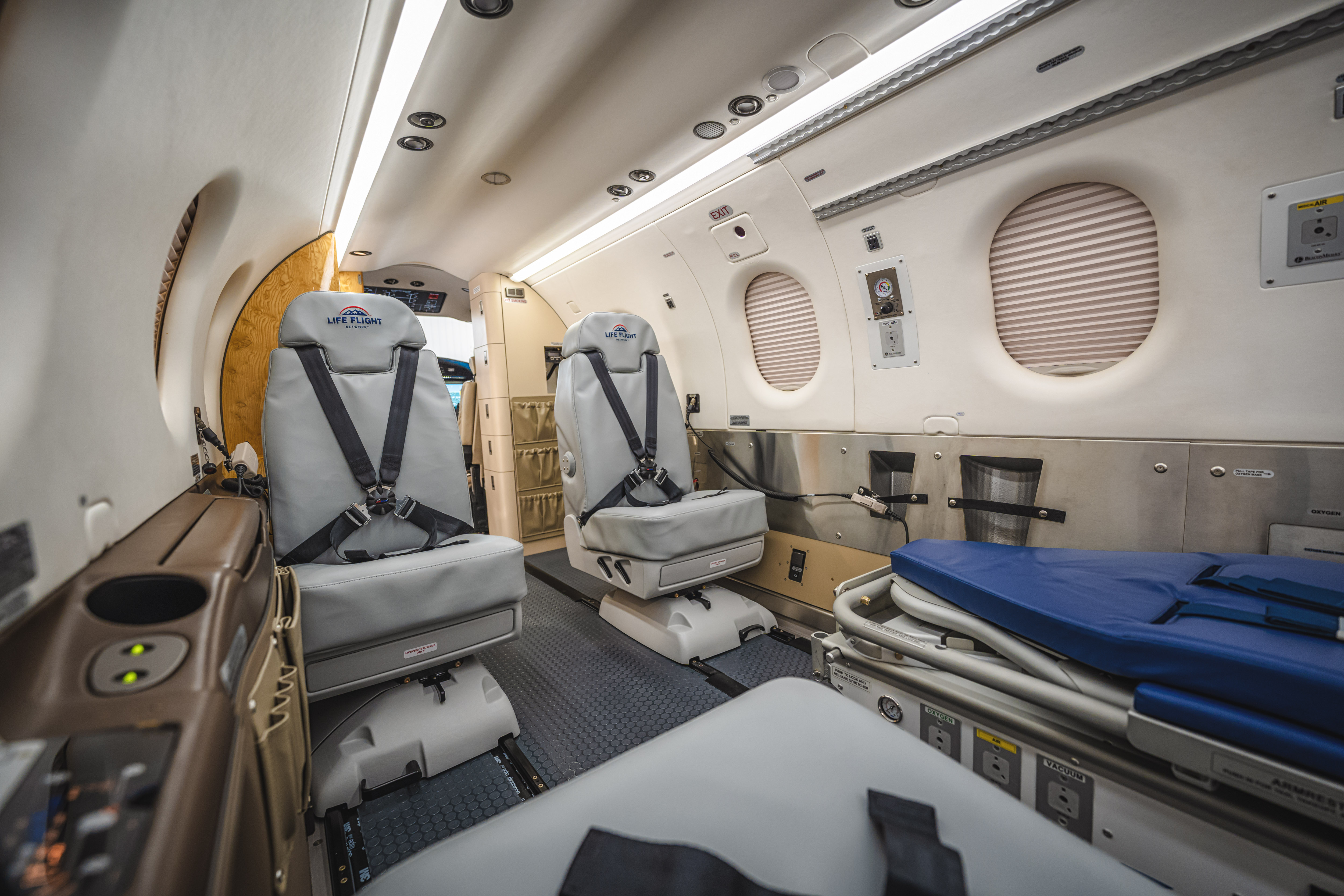

Beechcraft King Air 350/360 Air Medical Configuration - Single Bed

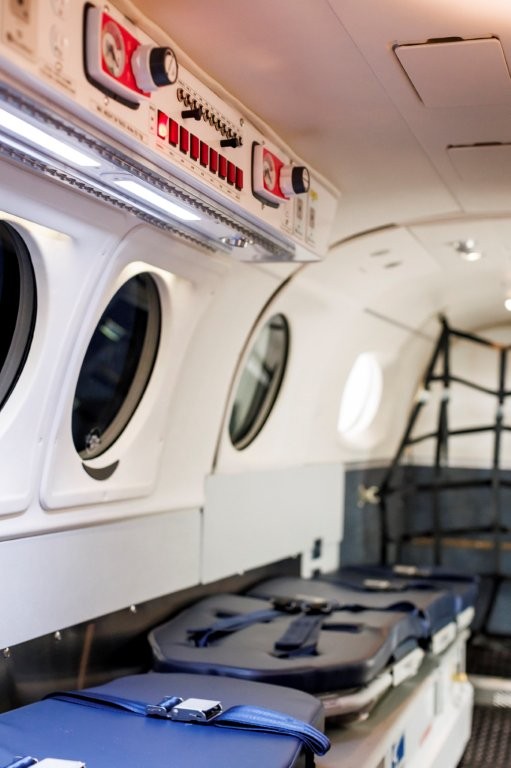

This King Air B350C, equipped with a 52-inch cargo door and heavyweight landing gear, was outfitted with a Proline 21 integrated Max-Viz enhanced vision system and interior/exterior LED lighting conversions. The interior is equipped with the latest medical equipment, essentially making the aircraft an airborne emergency department. The cabin has room for (1) patient and up to (6) medical personnel with an integrated intercom system that has multiple isolation configurations. Both flightcrew and airmed team have the ability to communicate with ground-based EMS and hospital personnel while simultaneously making Iridium phone calls inflight.

Aircraft Modifications & Performance Enhancements

  • Advent’s eABS anti-skid braking system
  • Astronics Max-Viz 1500 Dual Optical Field of View Enhanced Vision System

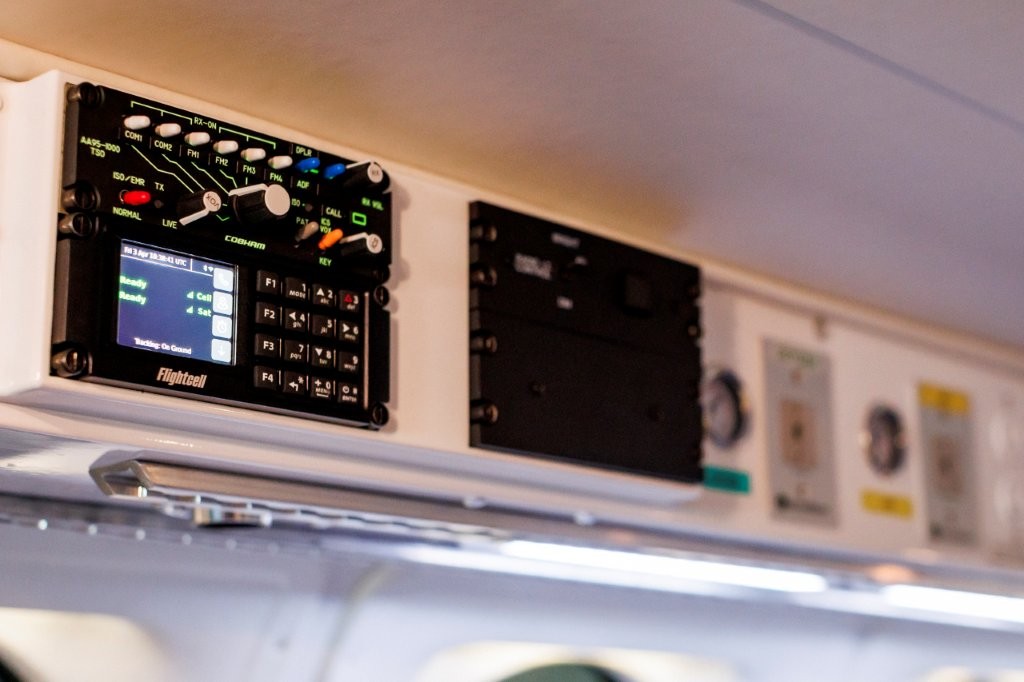

  • Custom Cobham cabin audio/intercom system

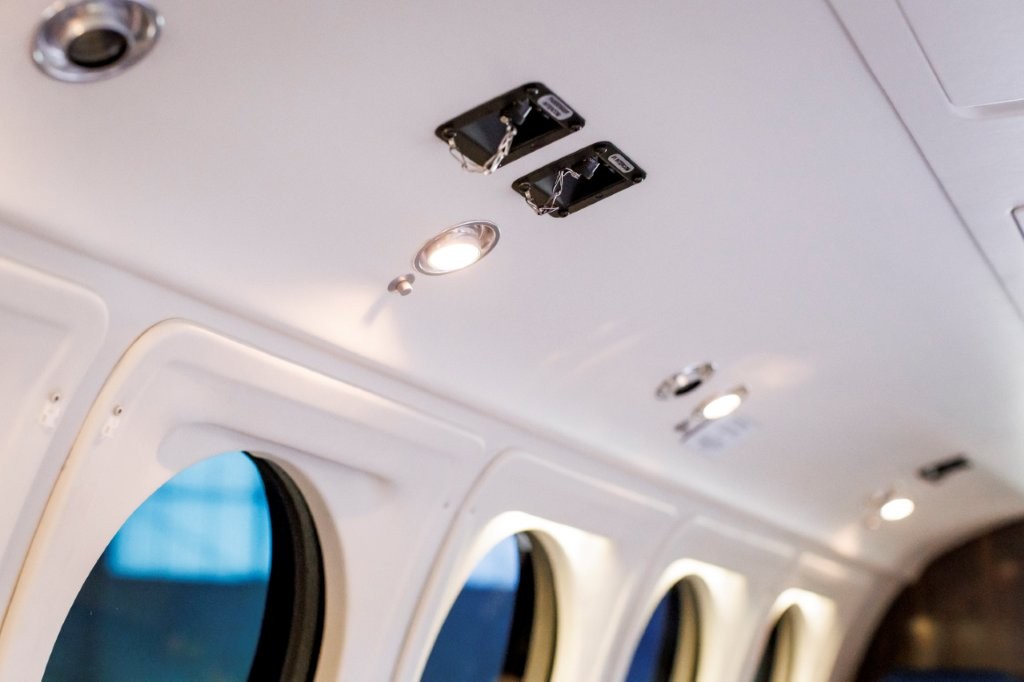

  • Custom LED reading, table, and overhead cabin lighting

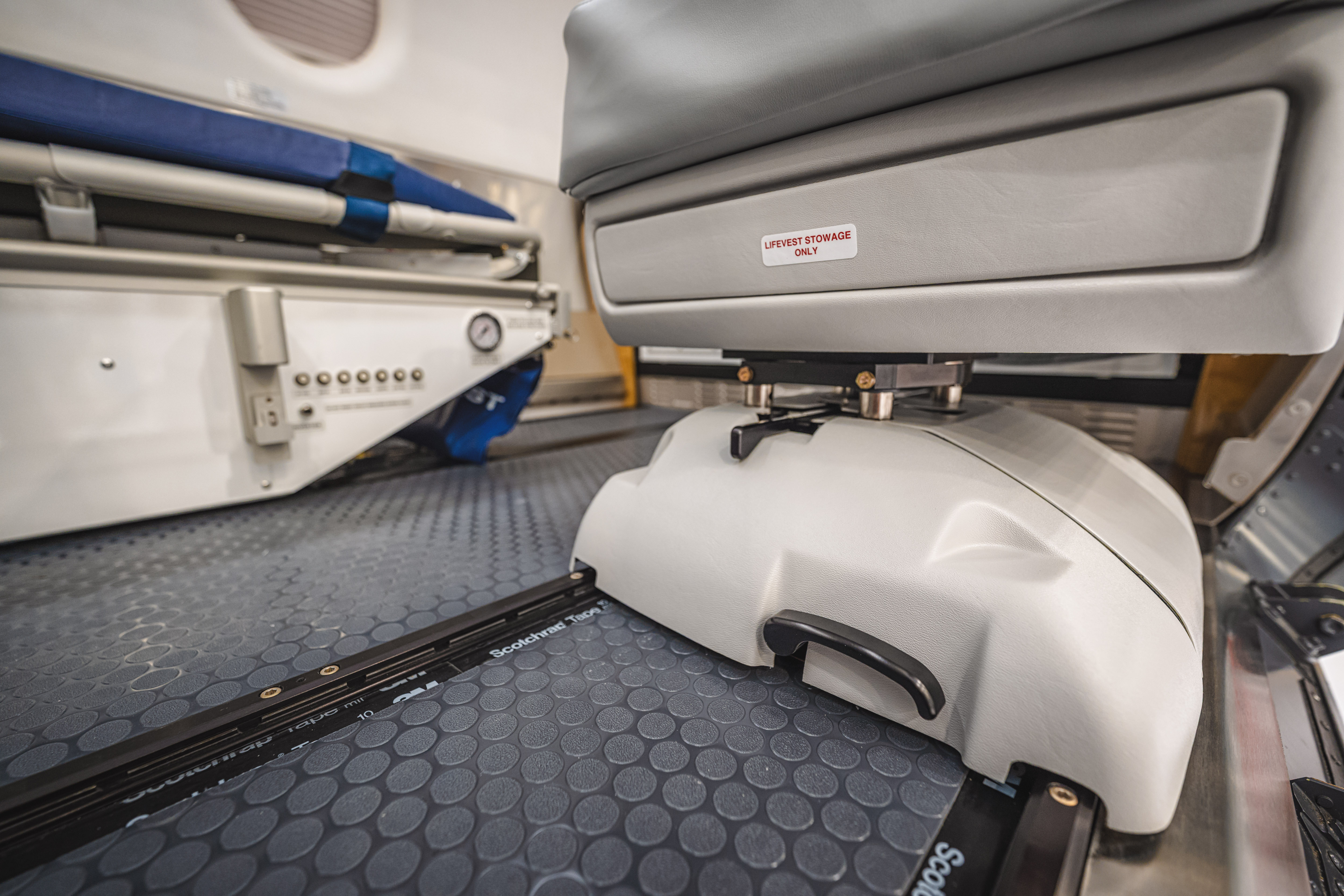

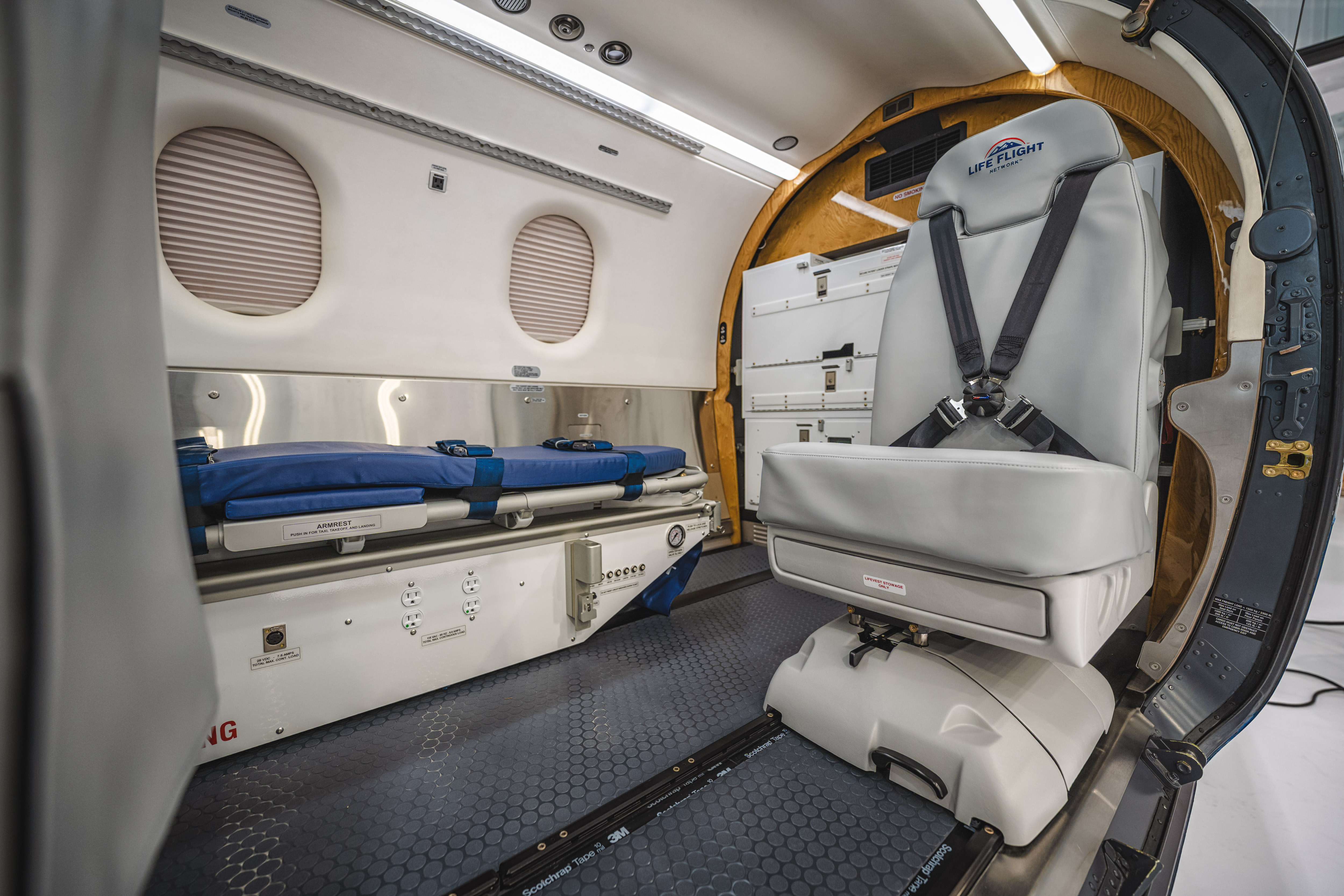

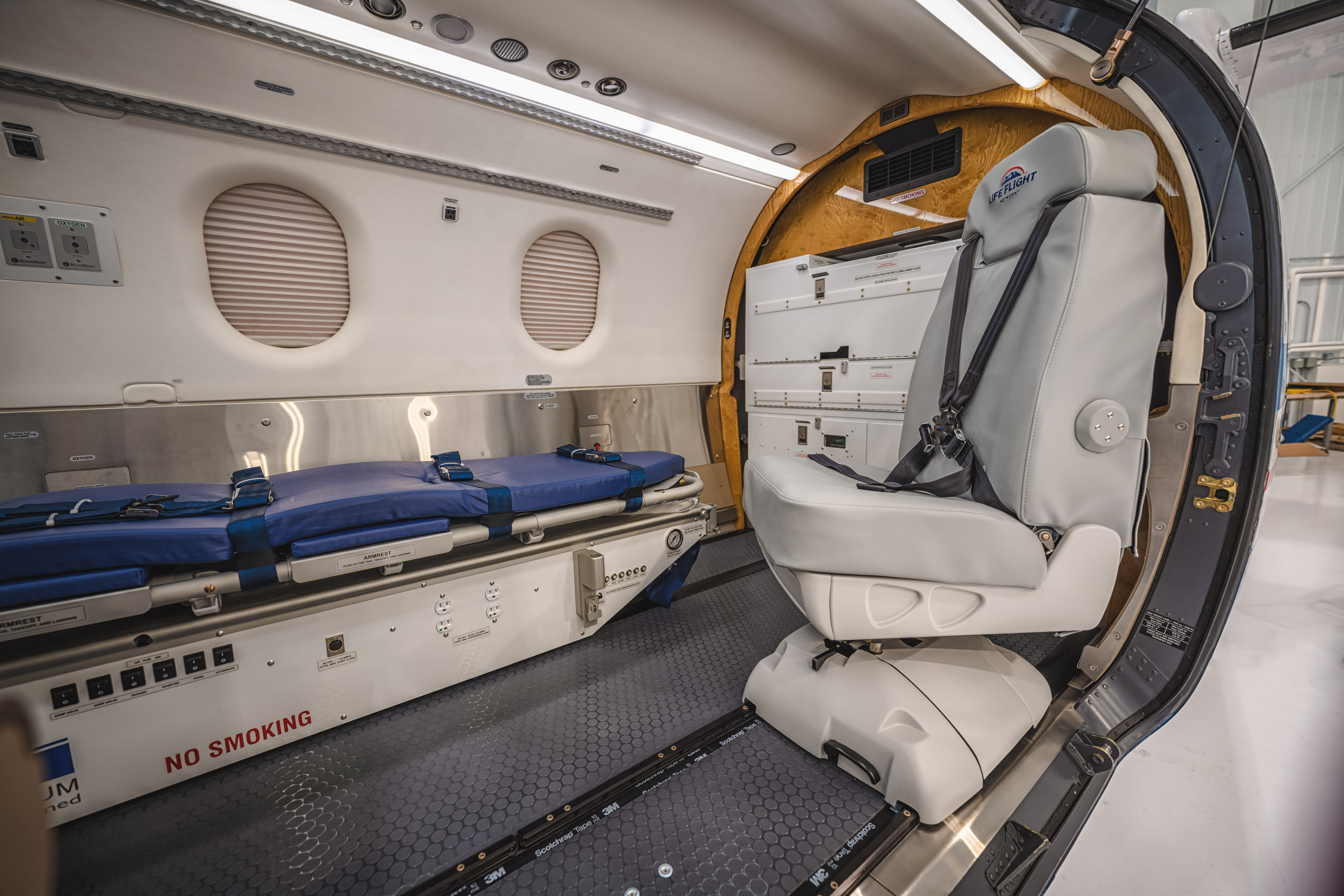

  • Custom medical cabinets, composite & stainless steel medical sidewall, and Loncoin flooring

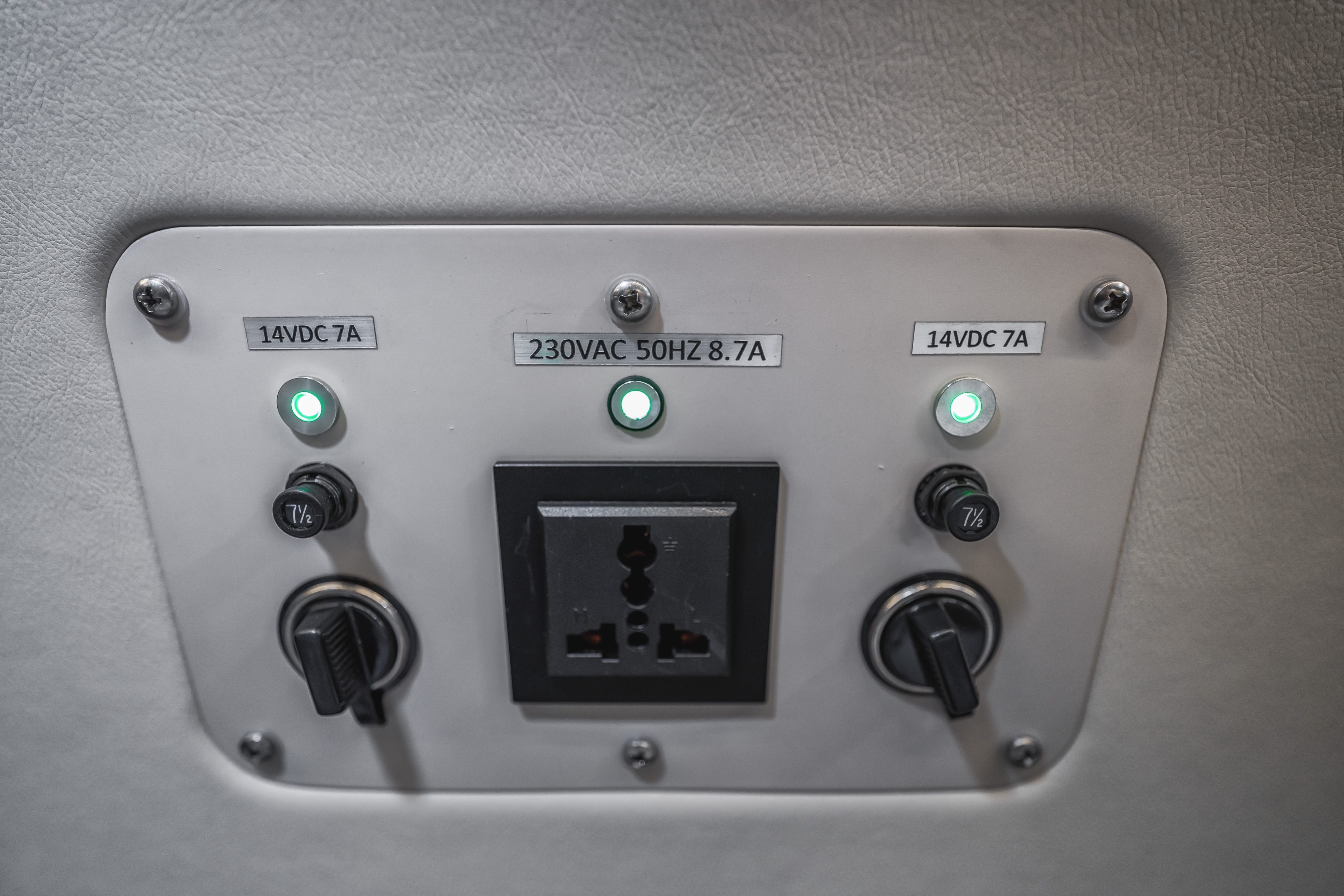

  • Custom ship/shore 115VAC system with automatic uninterrupted power source switching

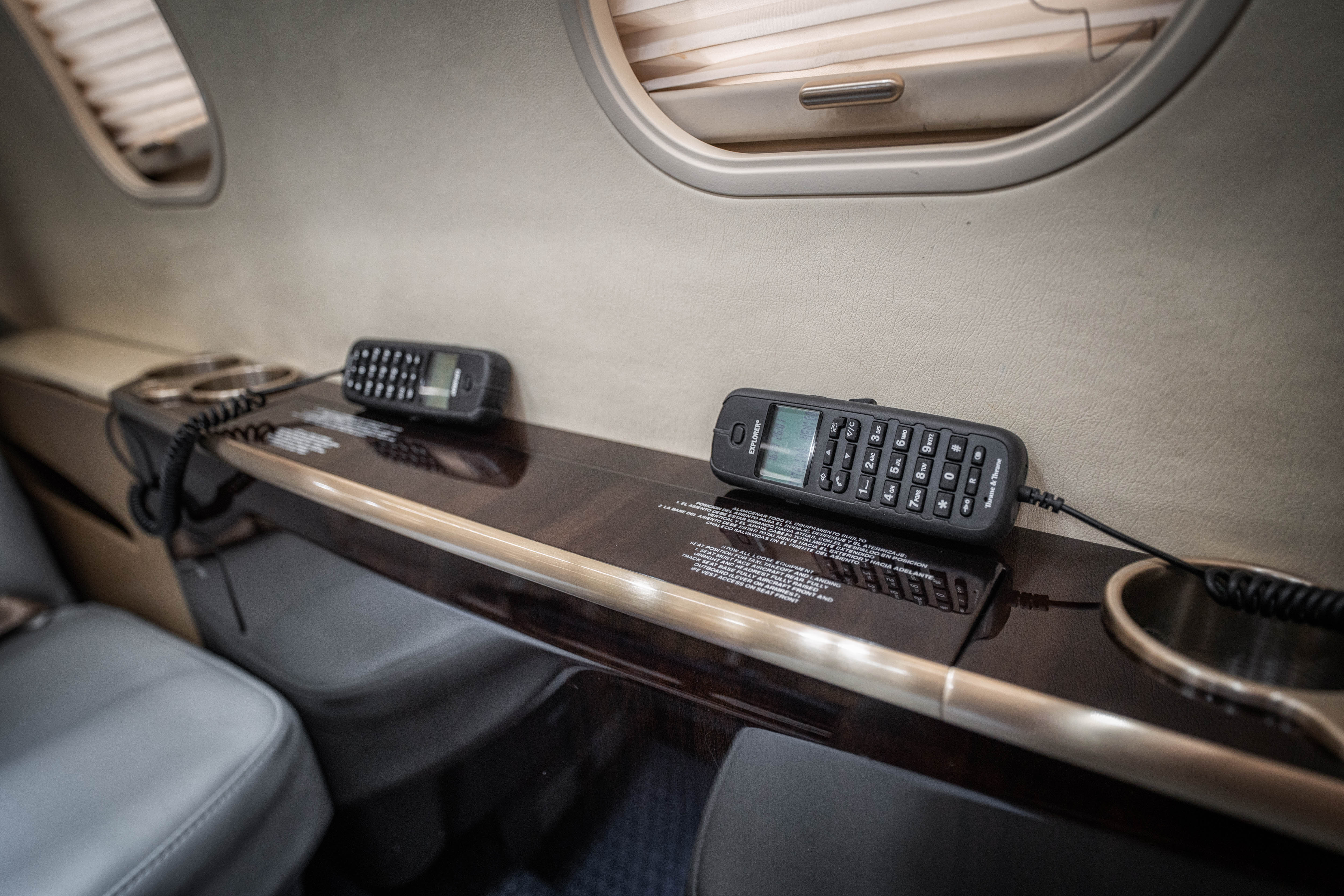

  • Outerlink IRIS broadband Satcom system with voice, video, and flight data recorder
  • Rockwell Collins Proline 21 TDR-94D ADS-B upgrade

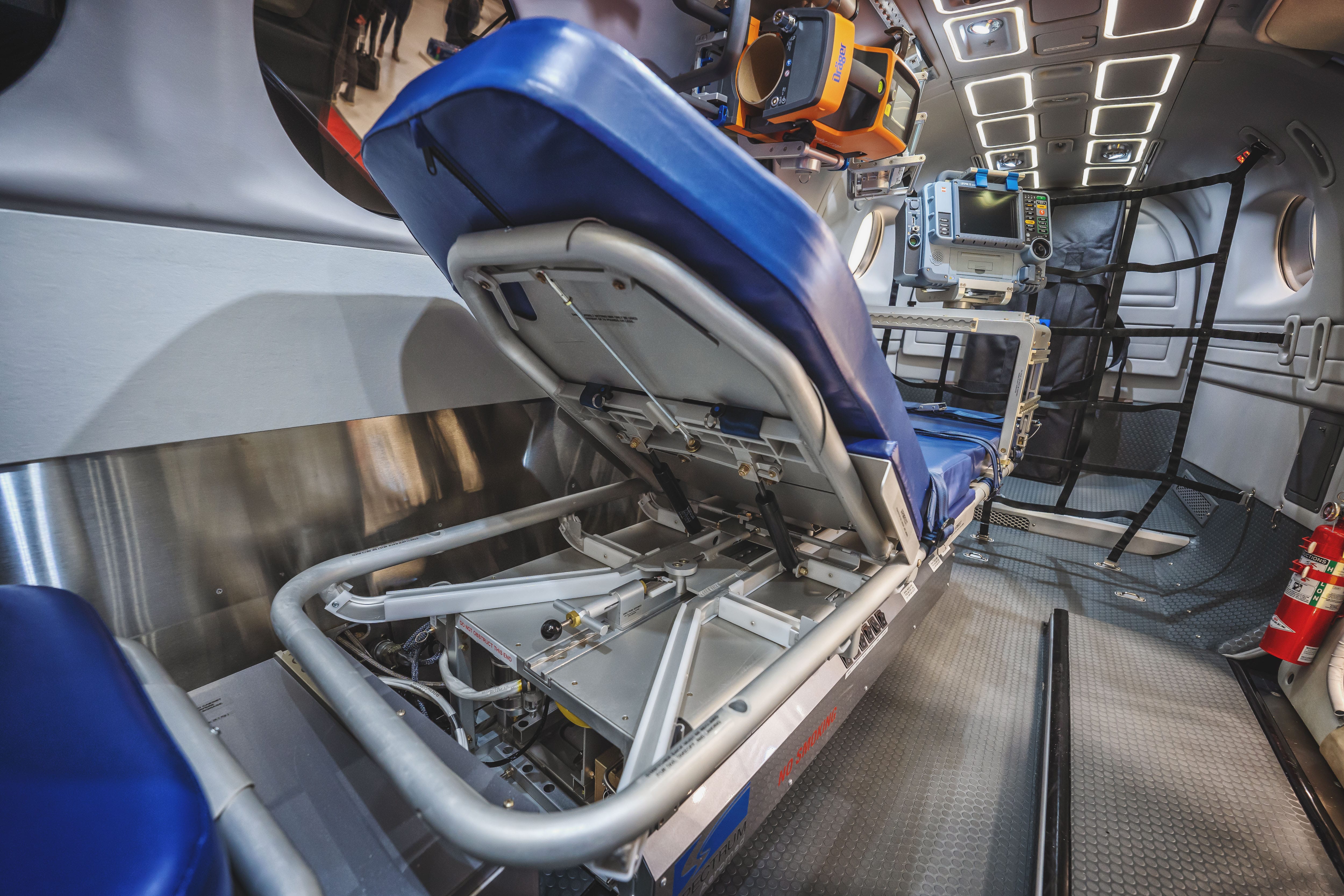

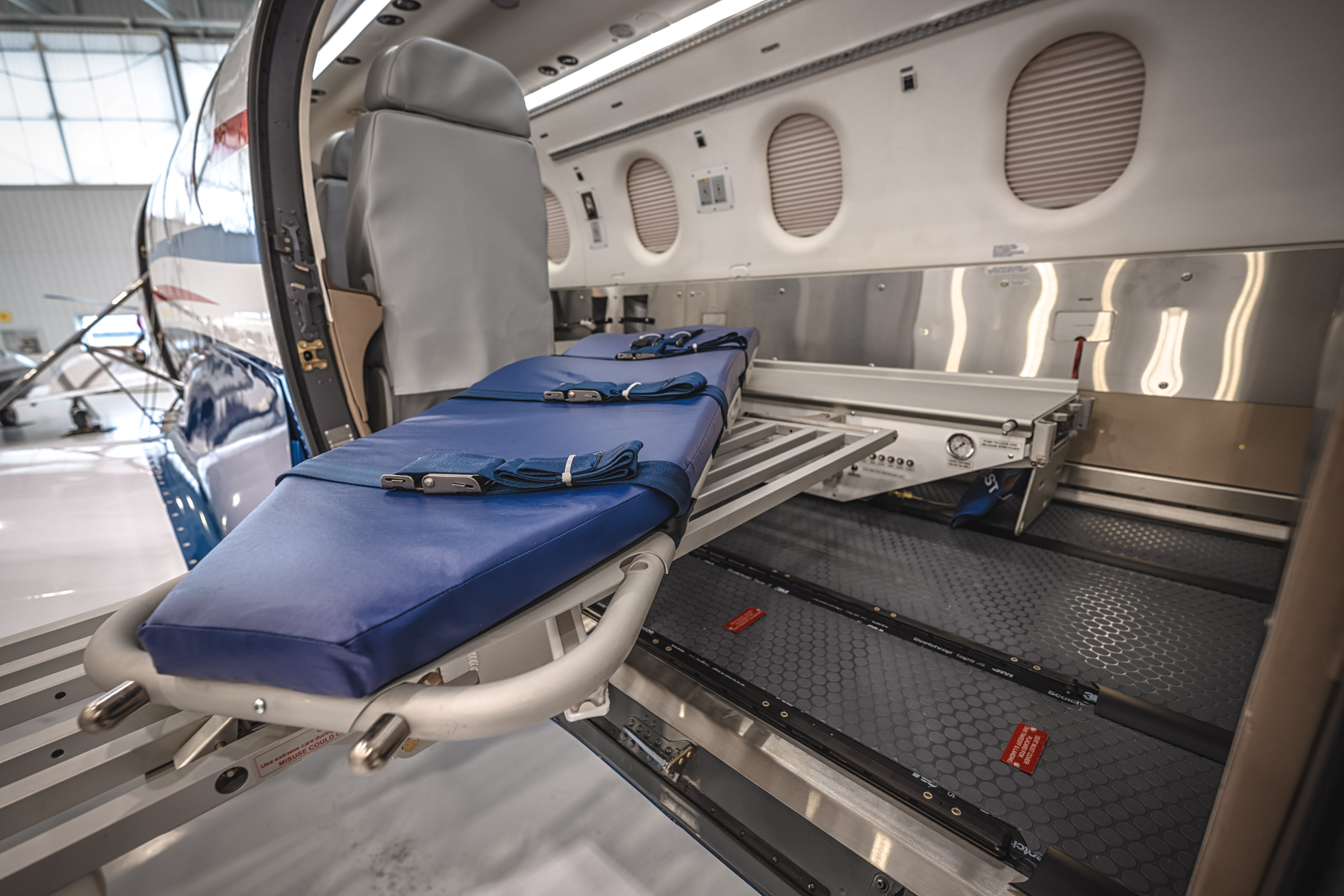

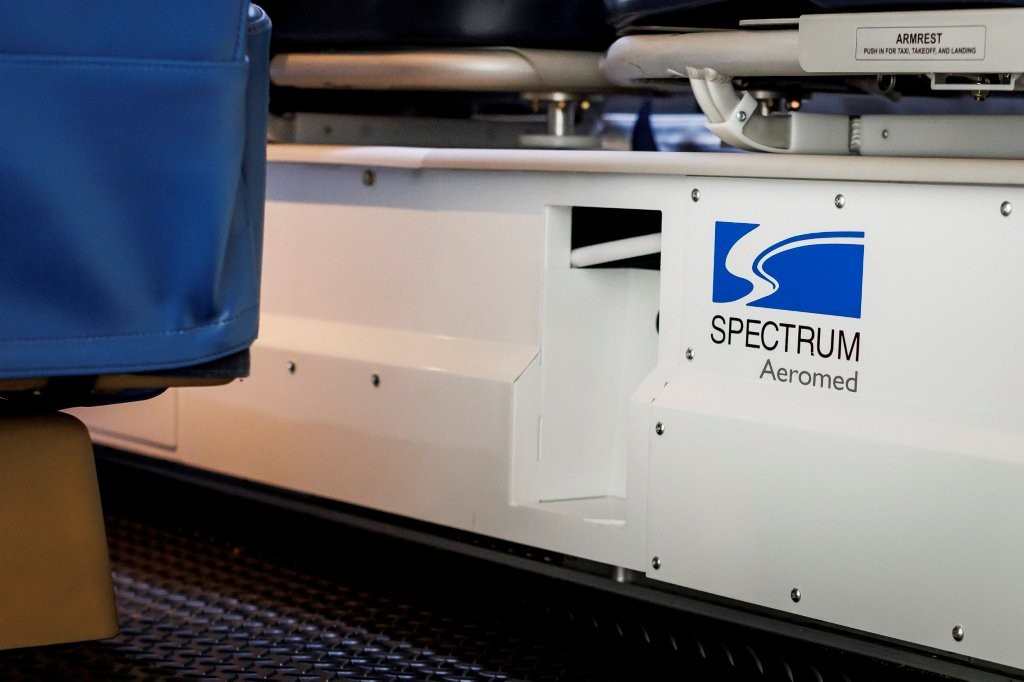

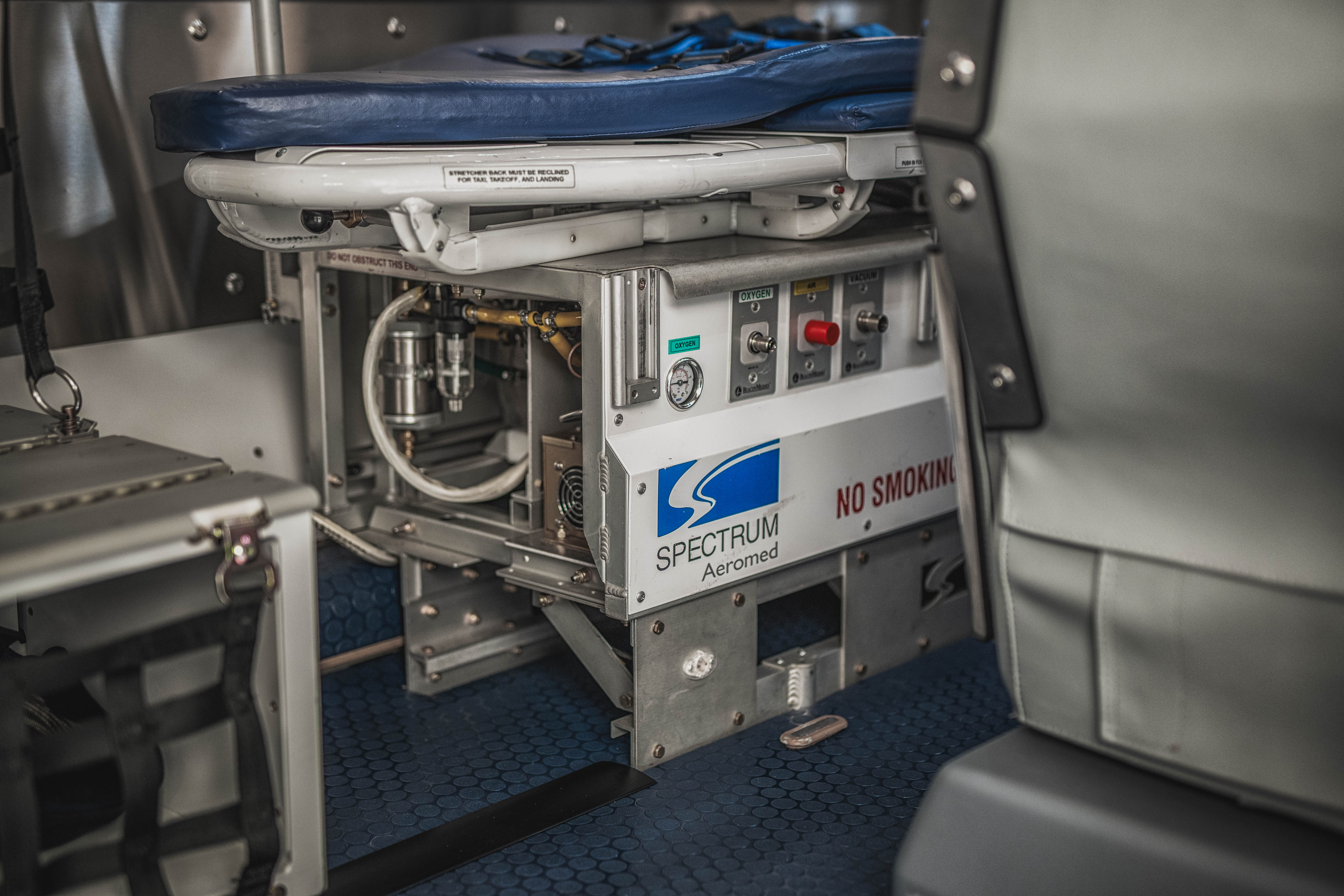

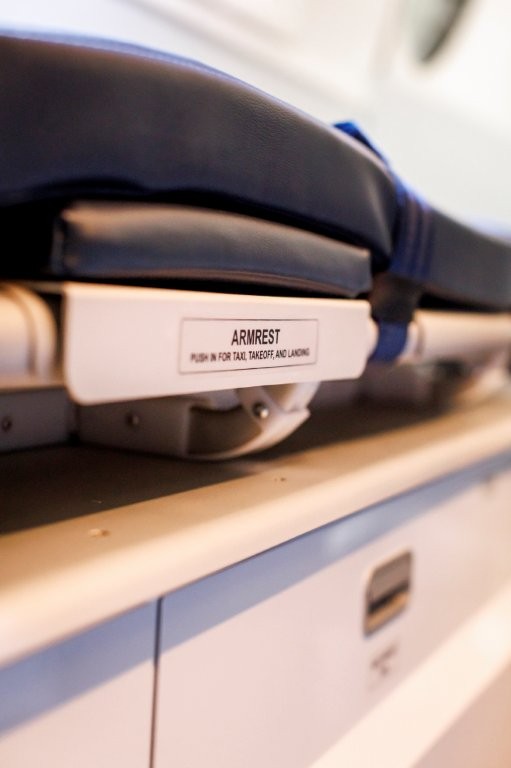

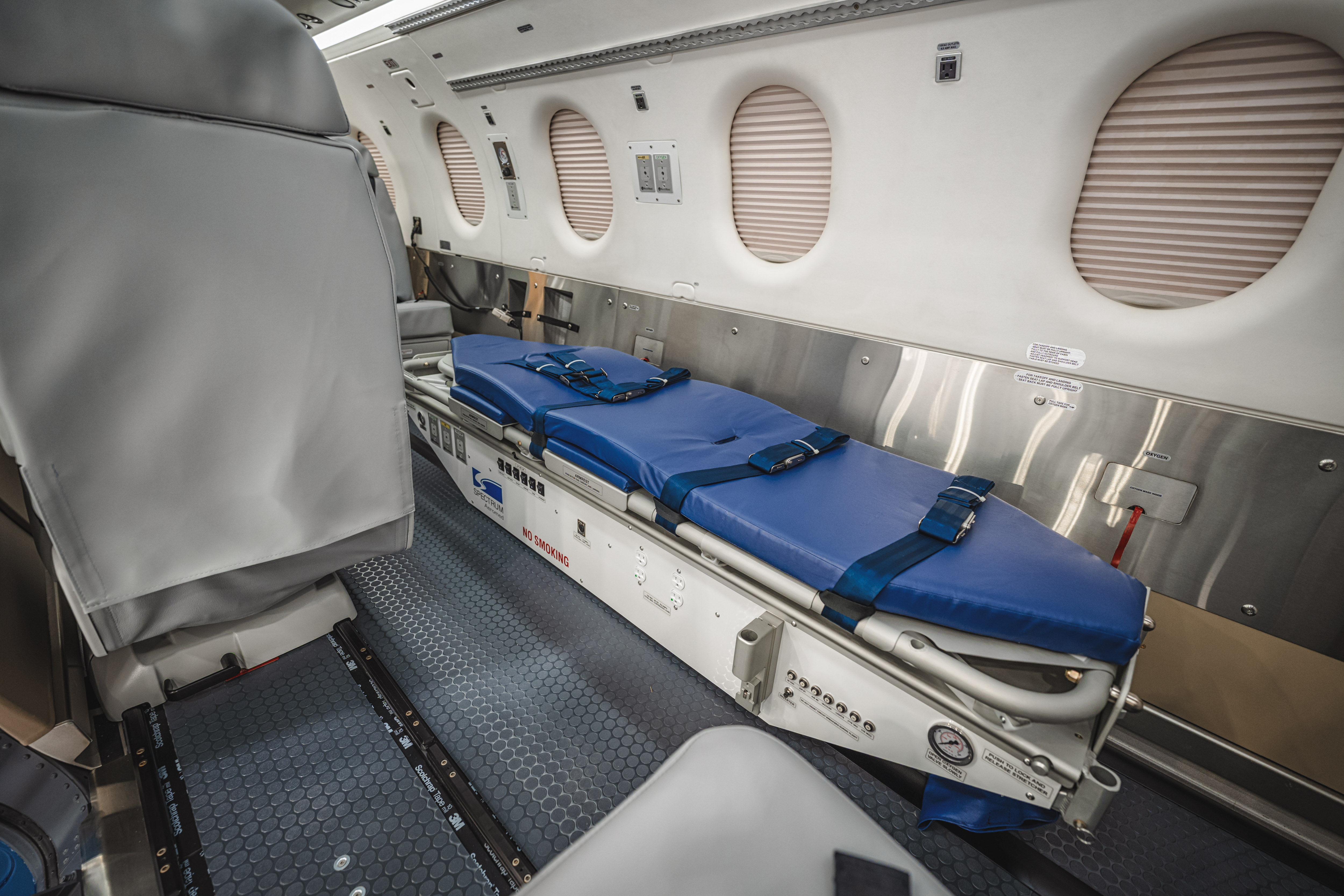

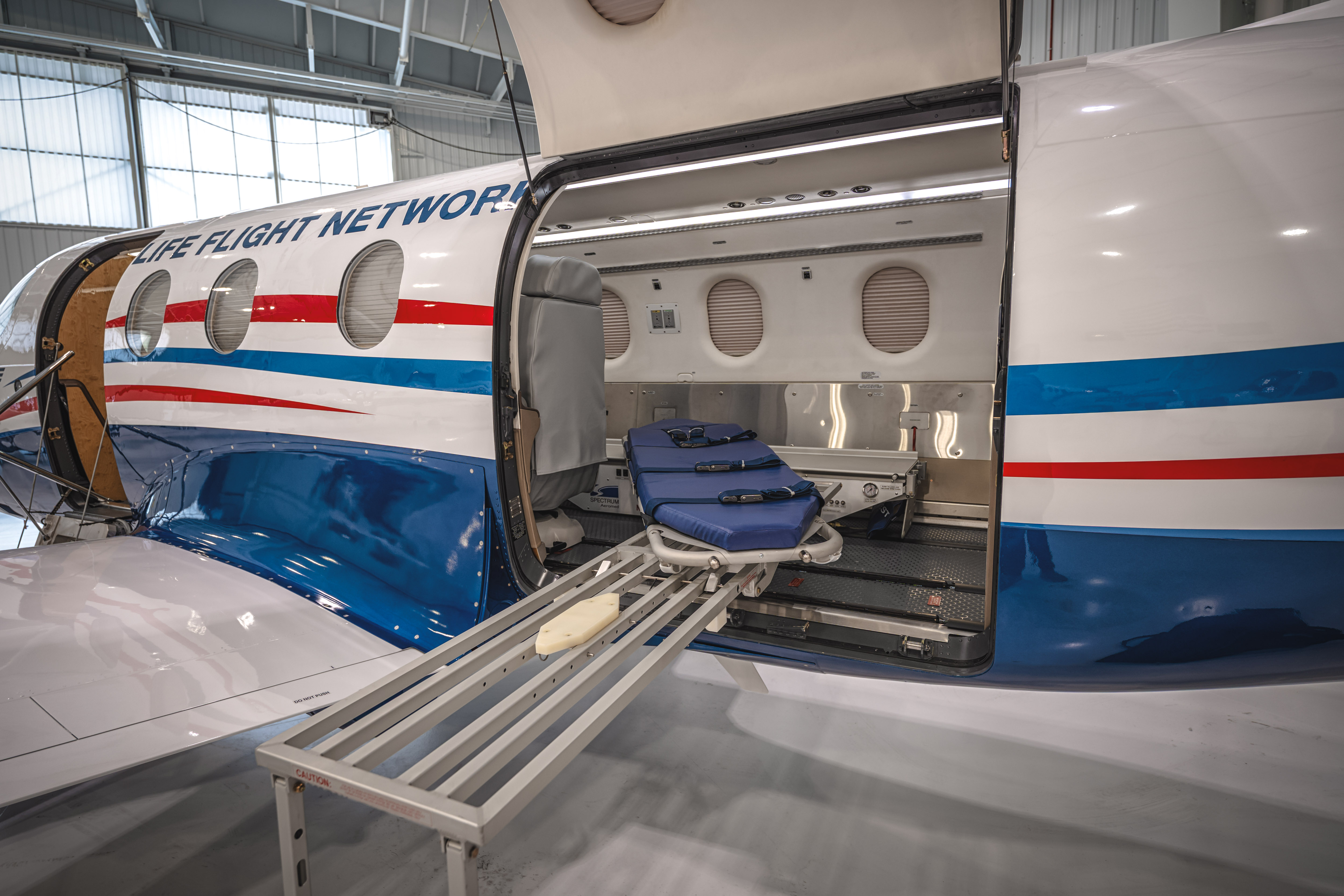

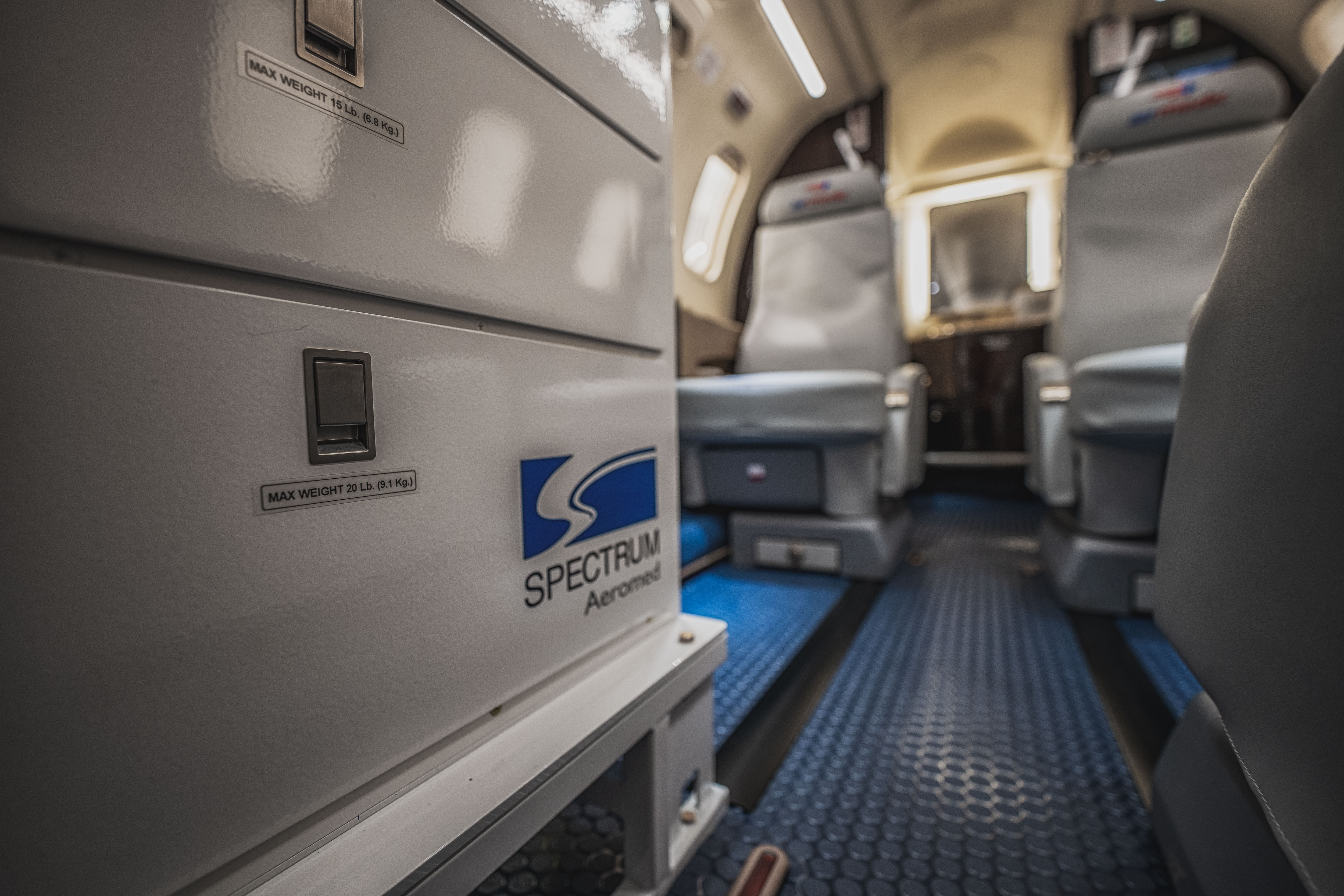

  • Spectrum Aeromed’s single system 2200 series with electronic patient loading system
  • Tanis Cold Weather Operating System (battery and both engines)
  • Technisonic TFM-138B FM VHF Com Radio
  • Whelen LED nav and strobe lights
  • Whelen LED landing/taxi lights

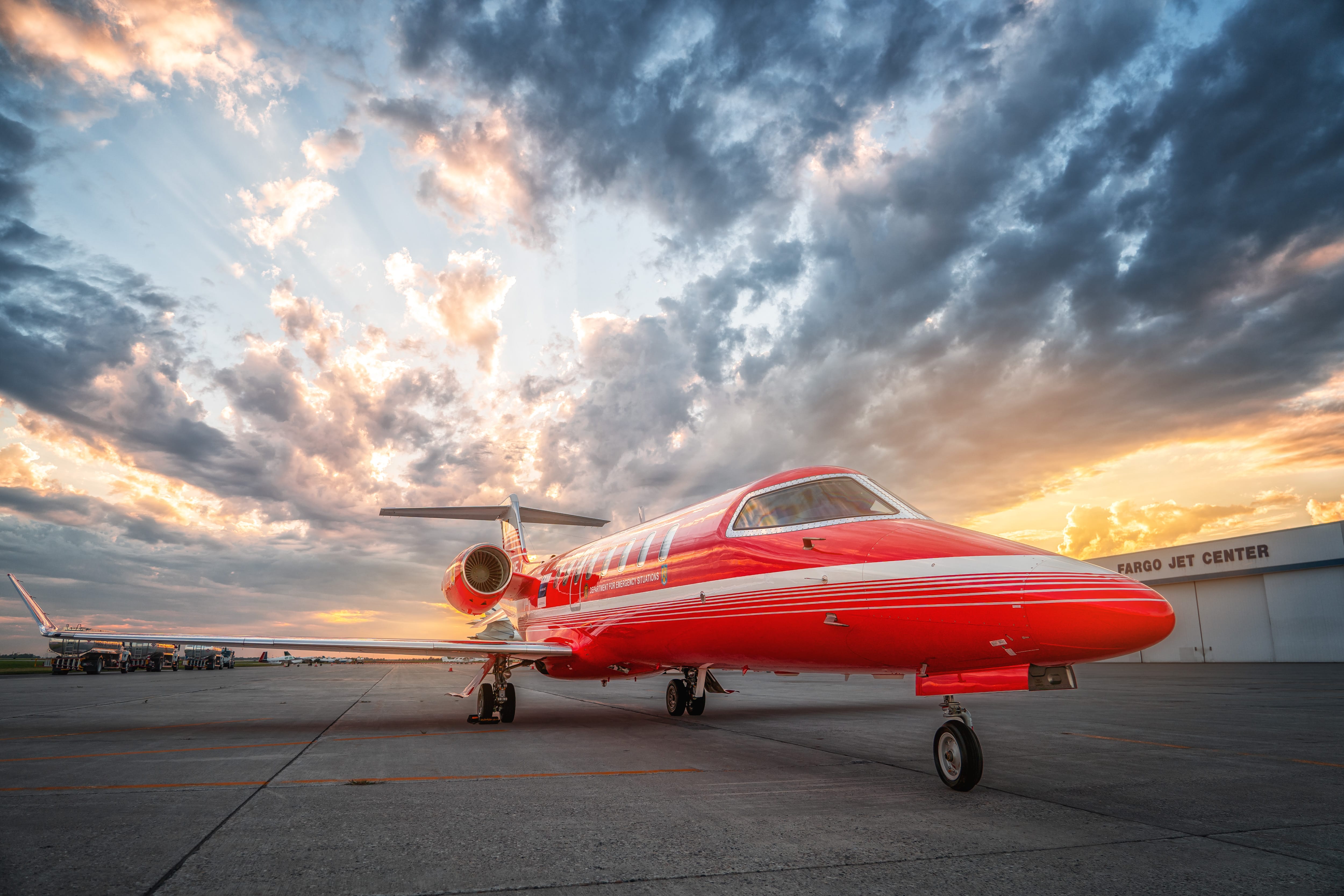

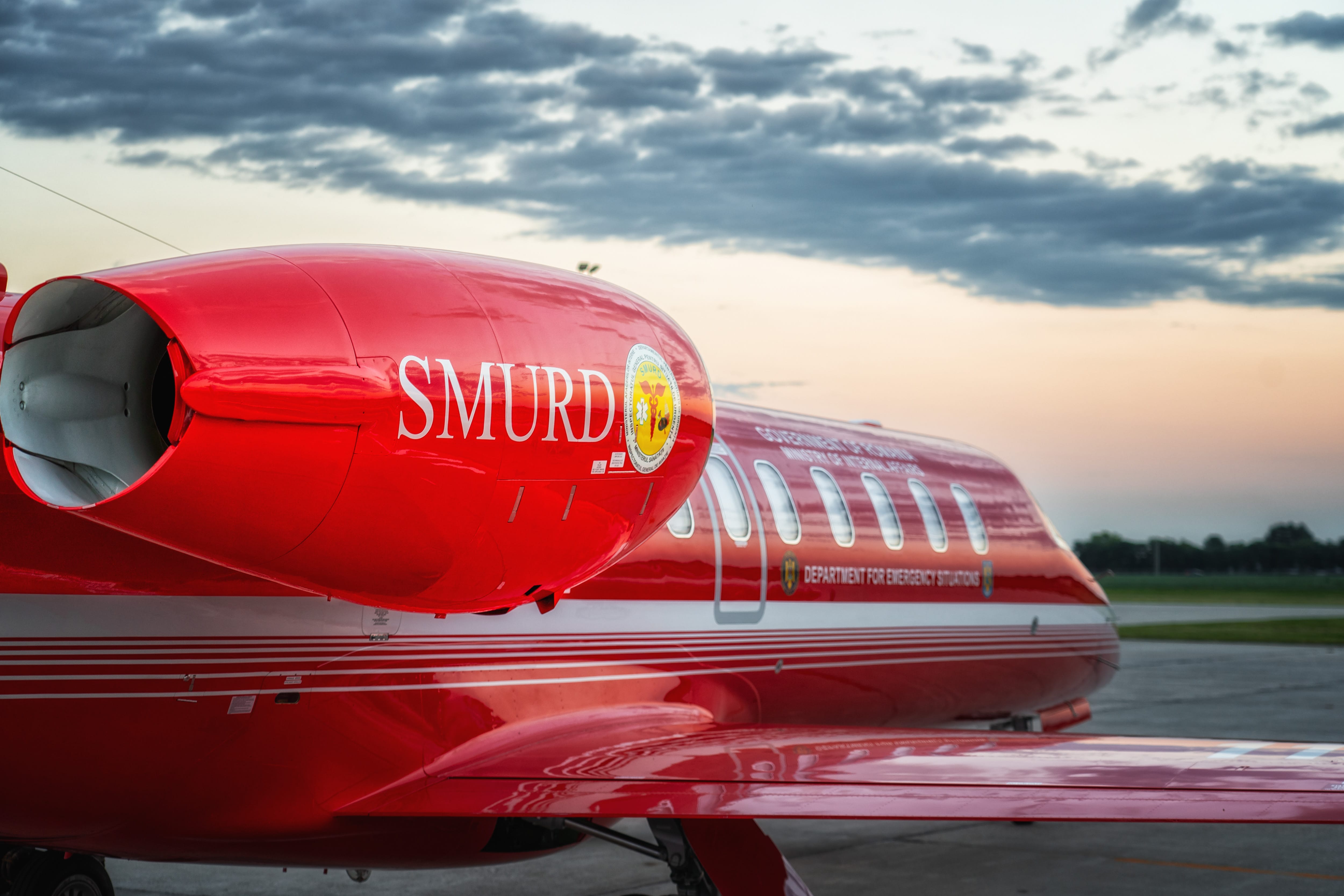

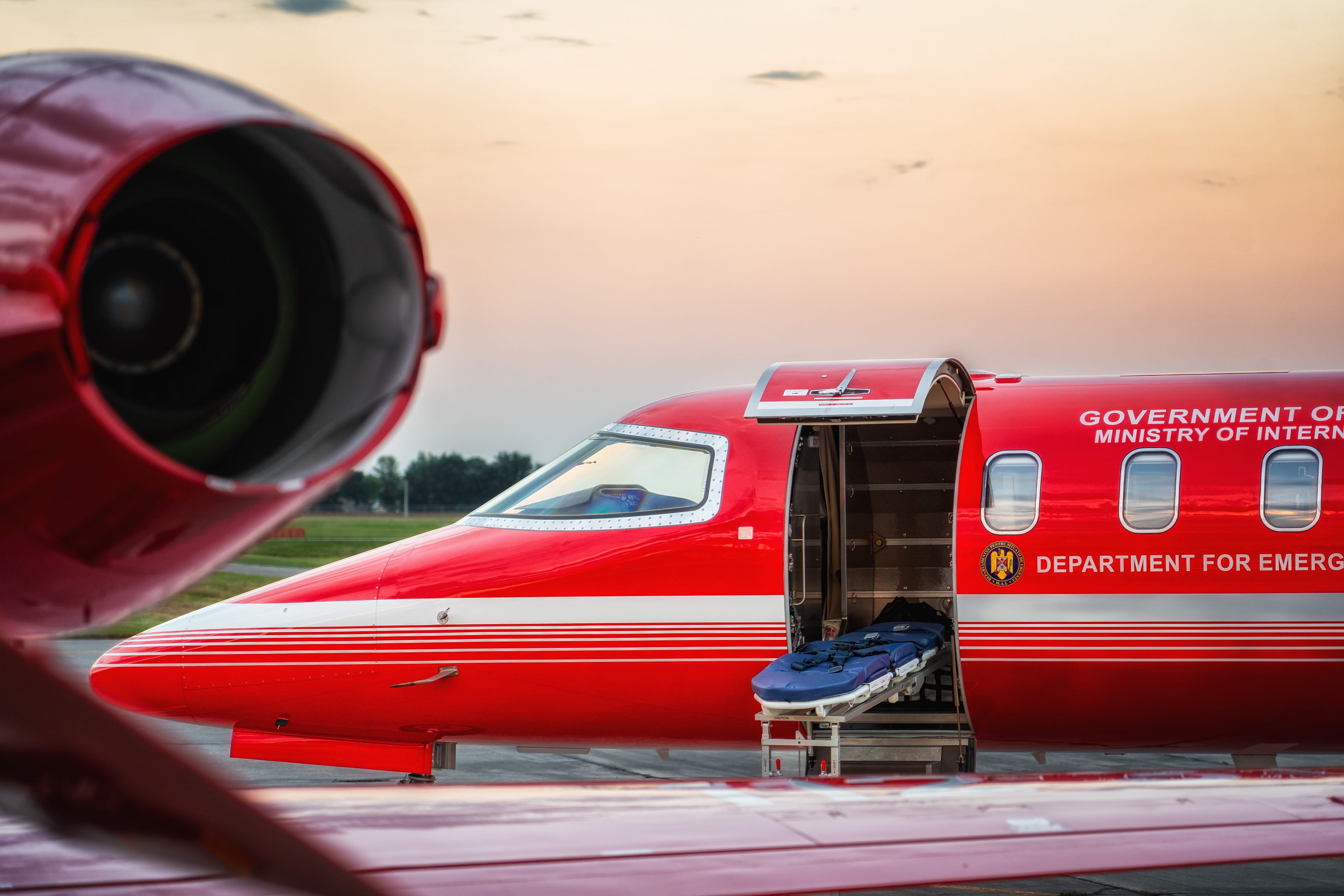

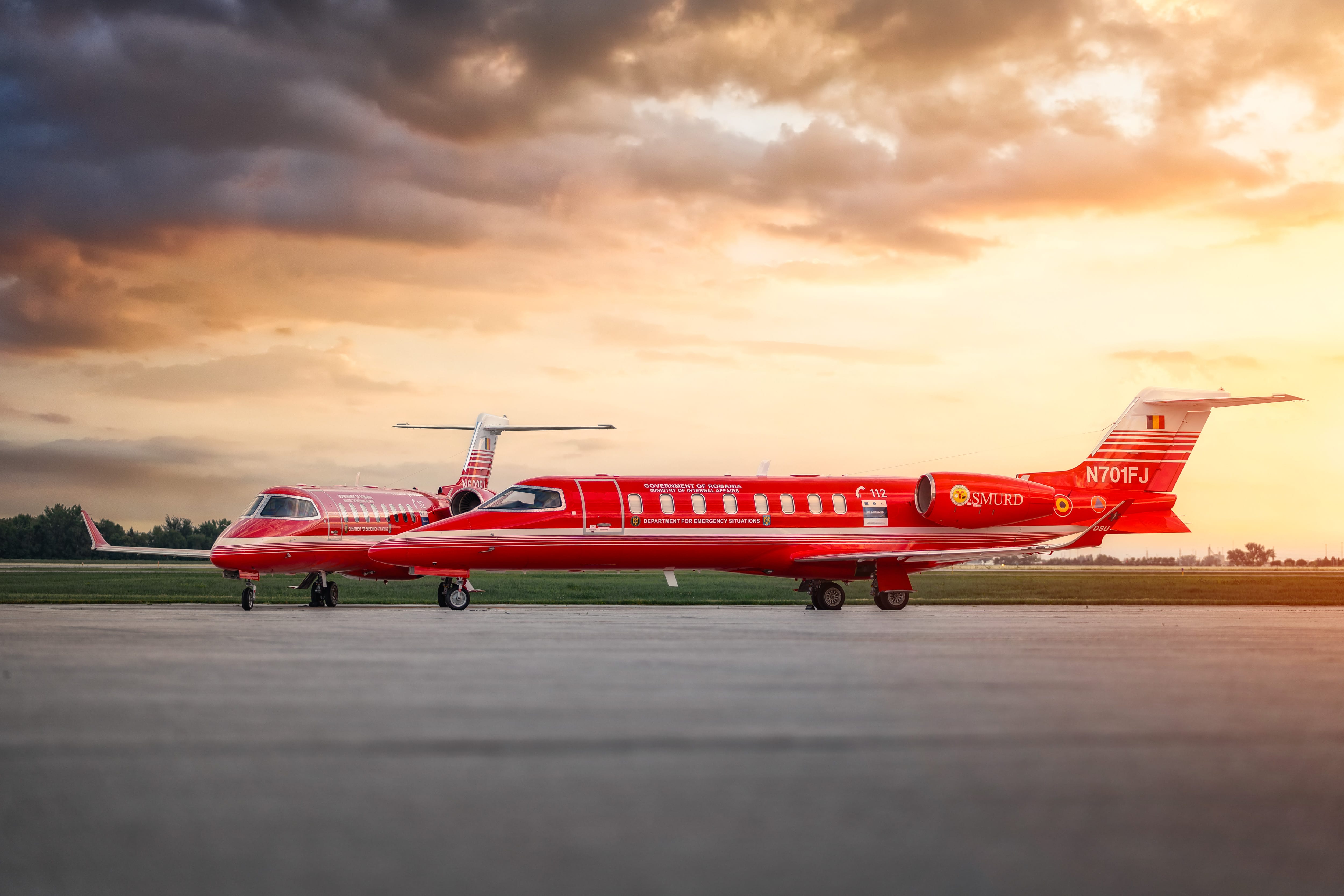

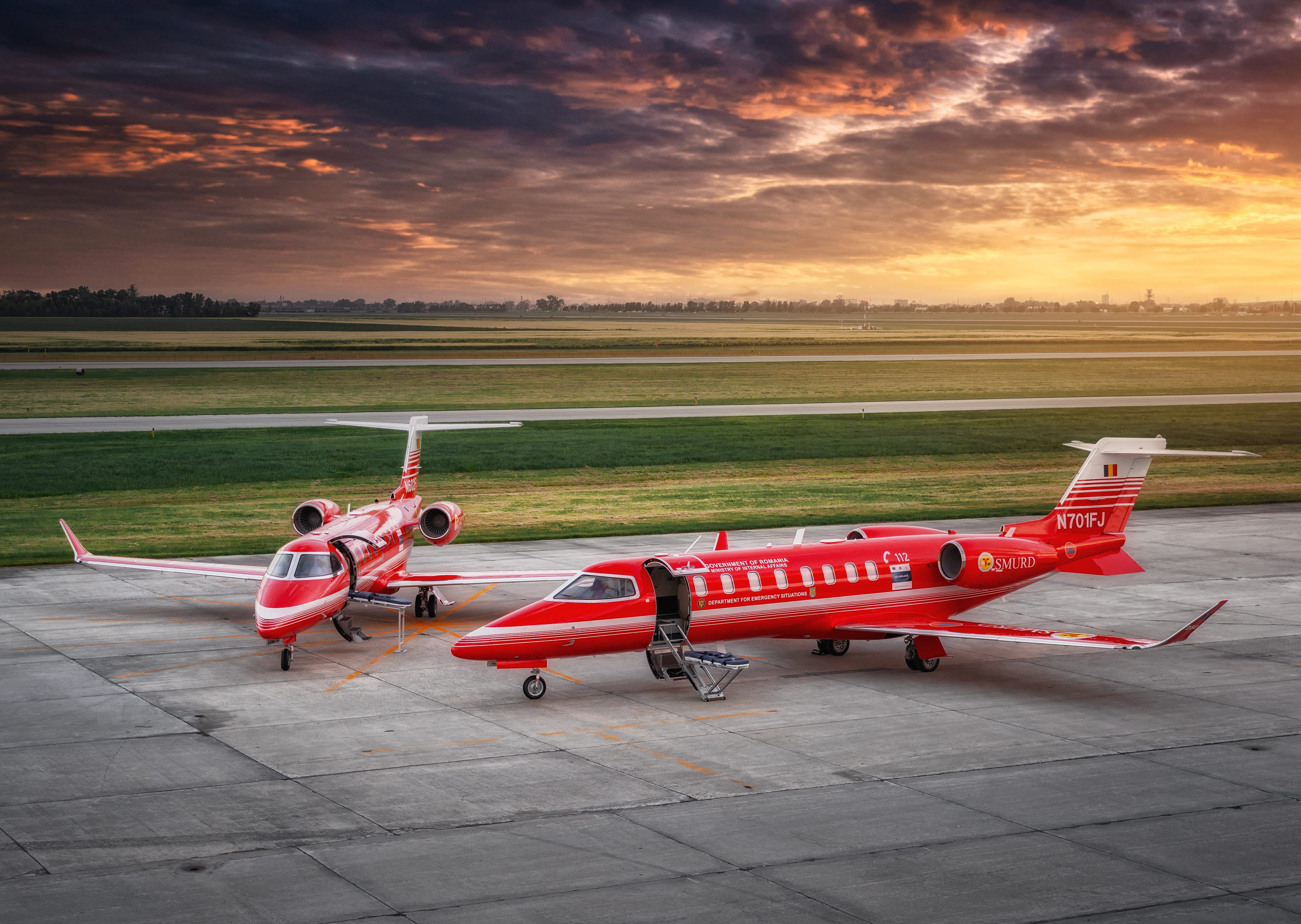

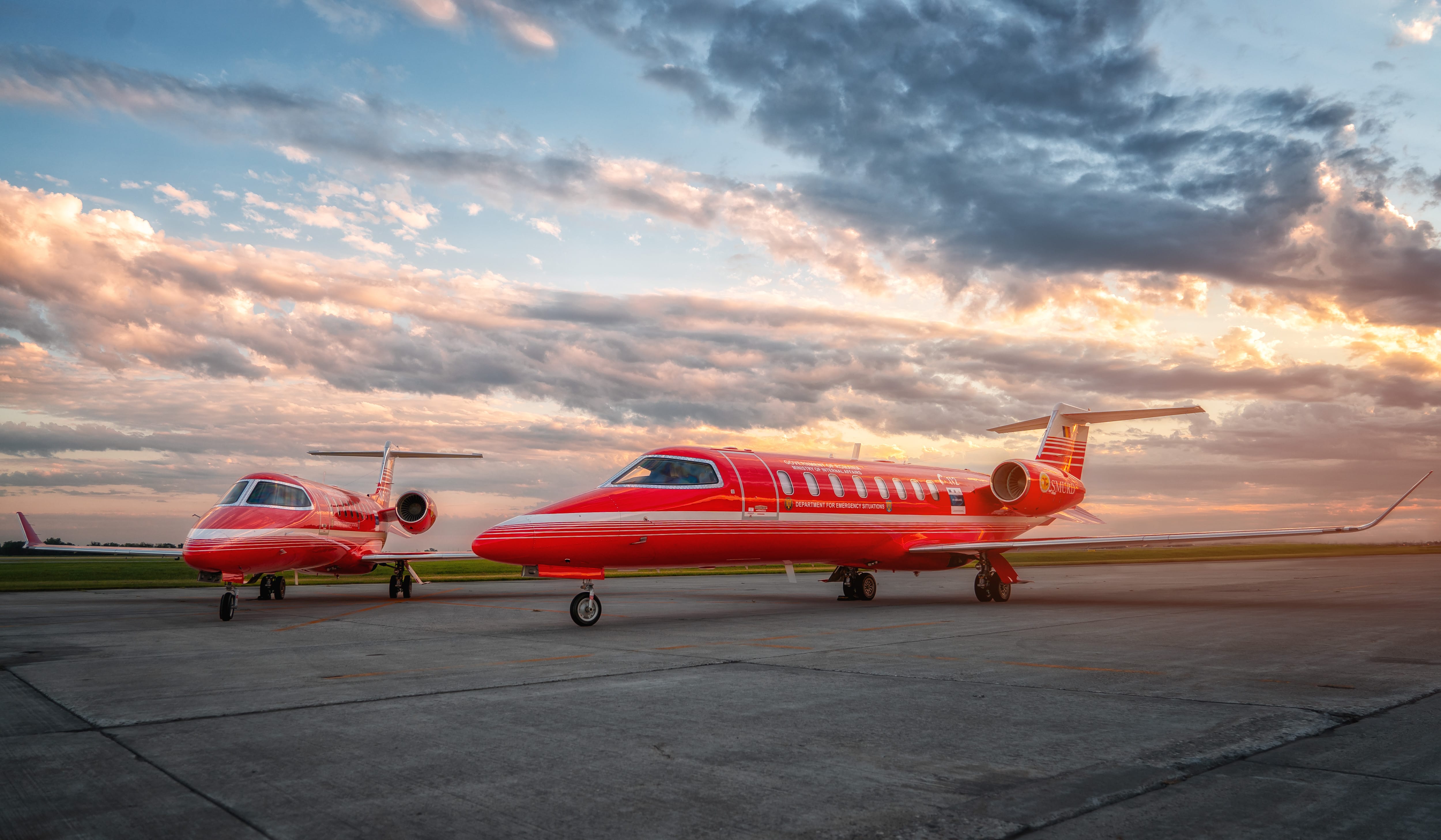

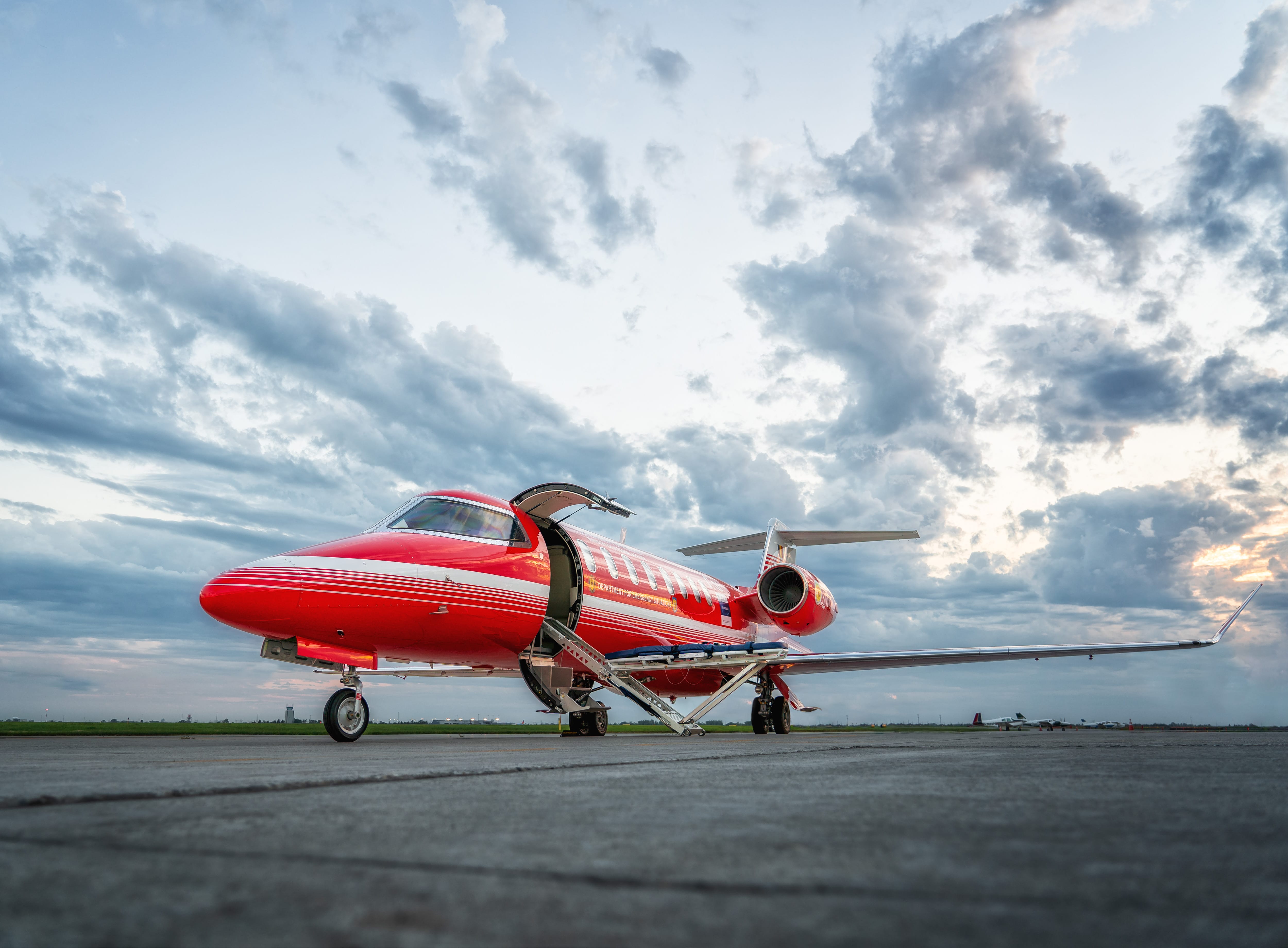

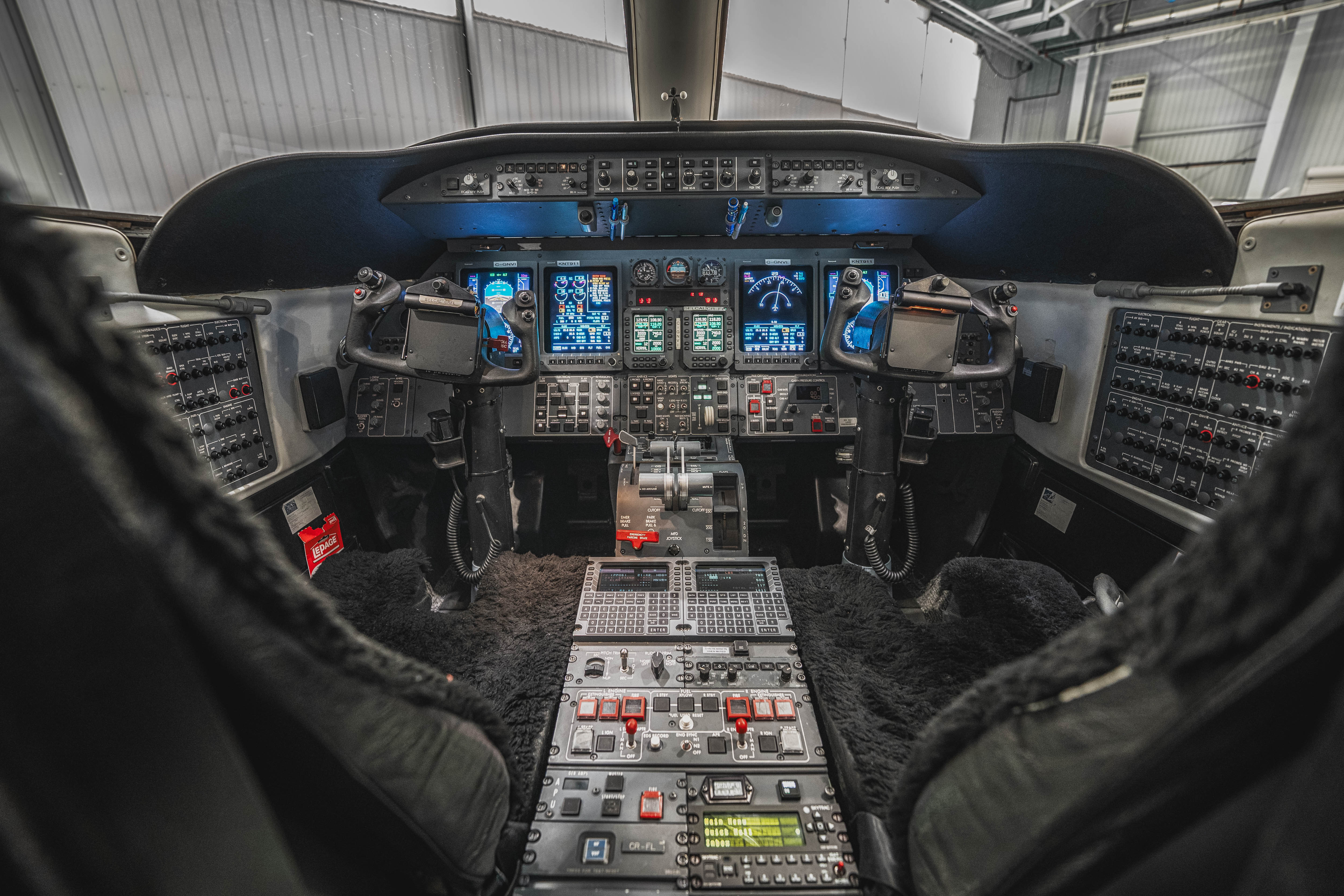

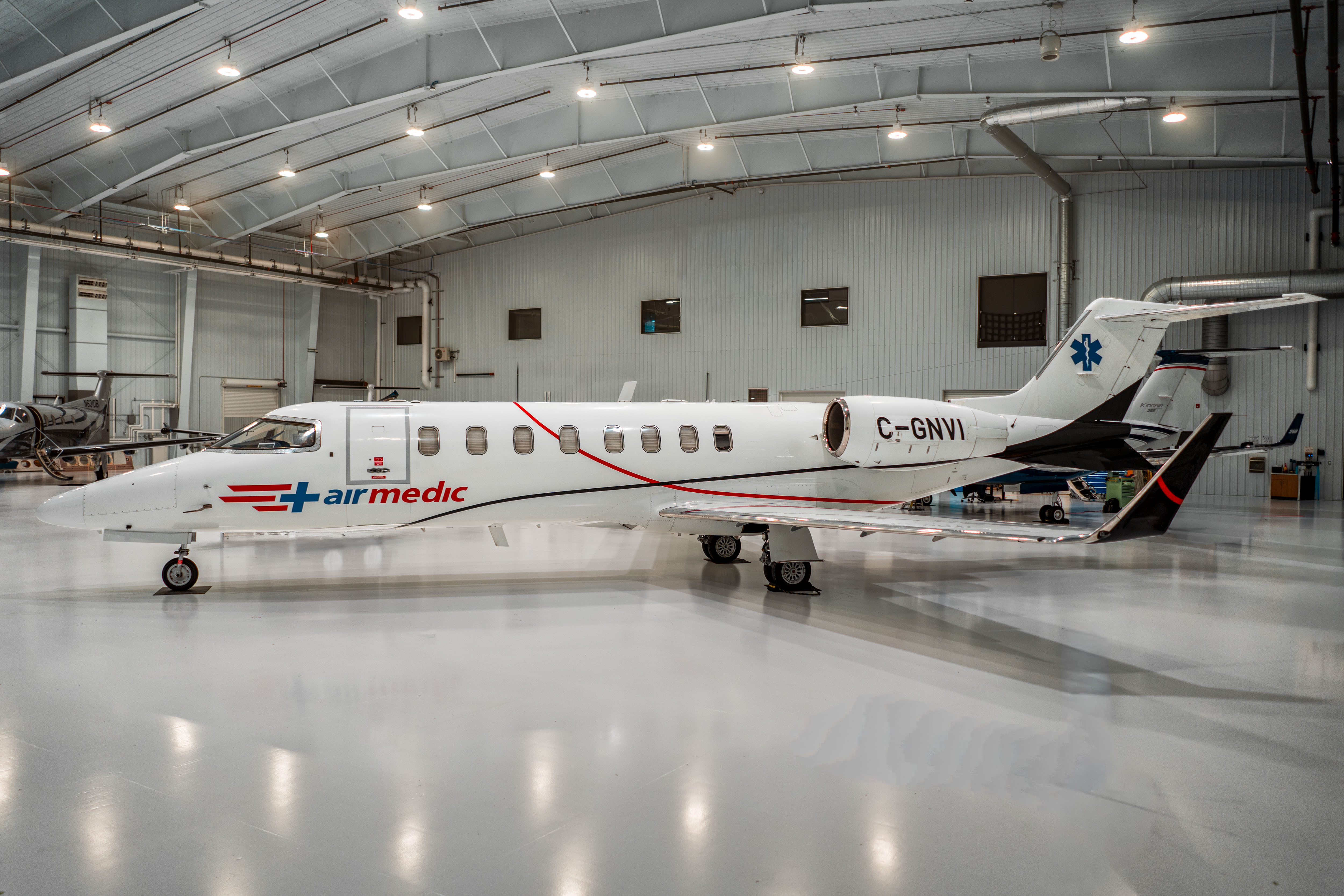

BOMBARDIER LEARJET 45

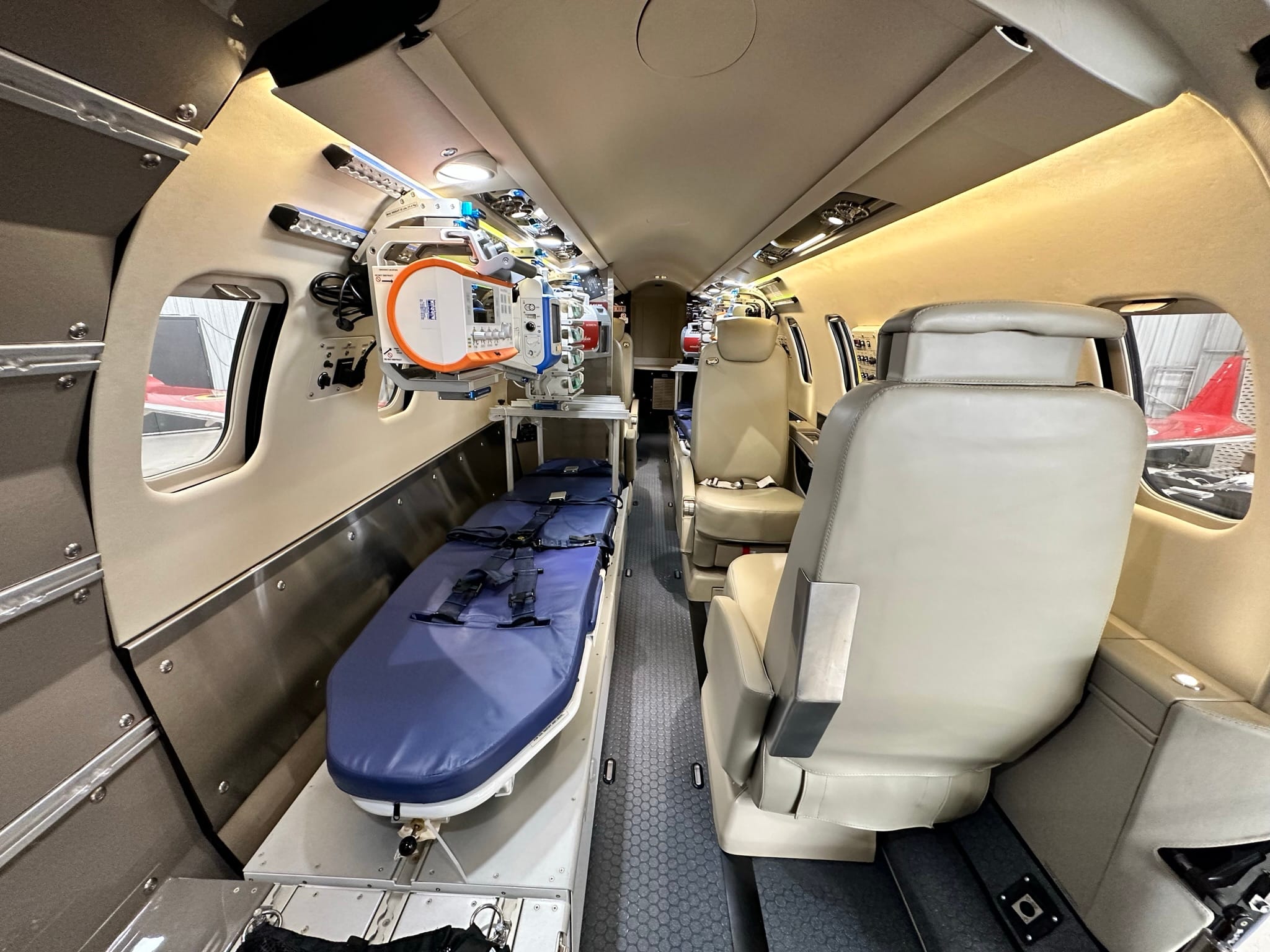

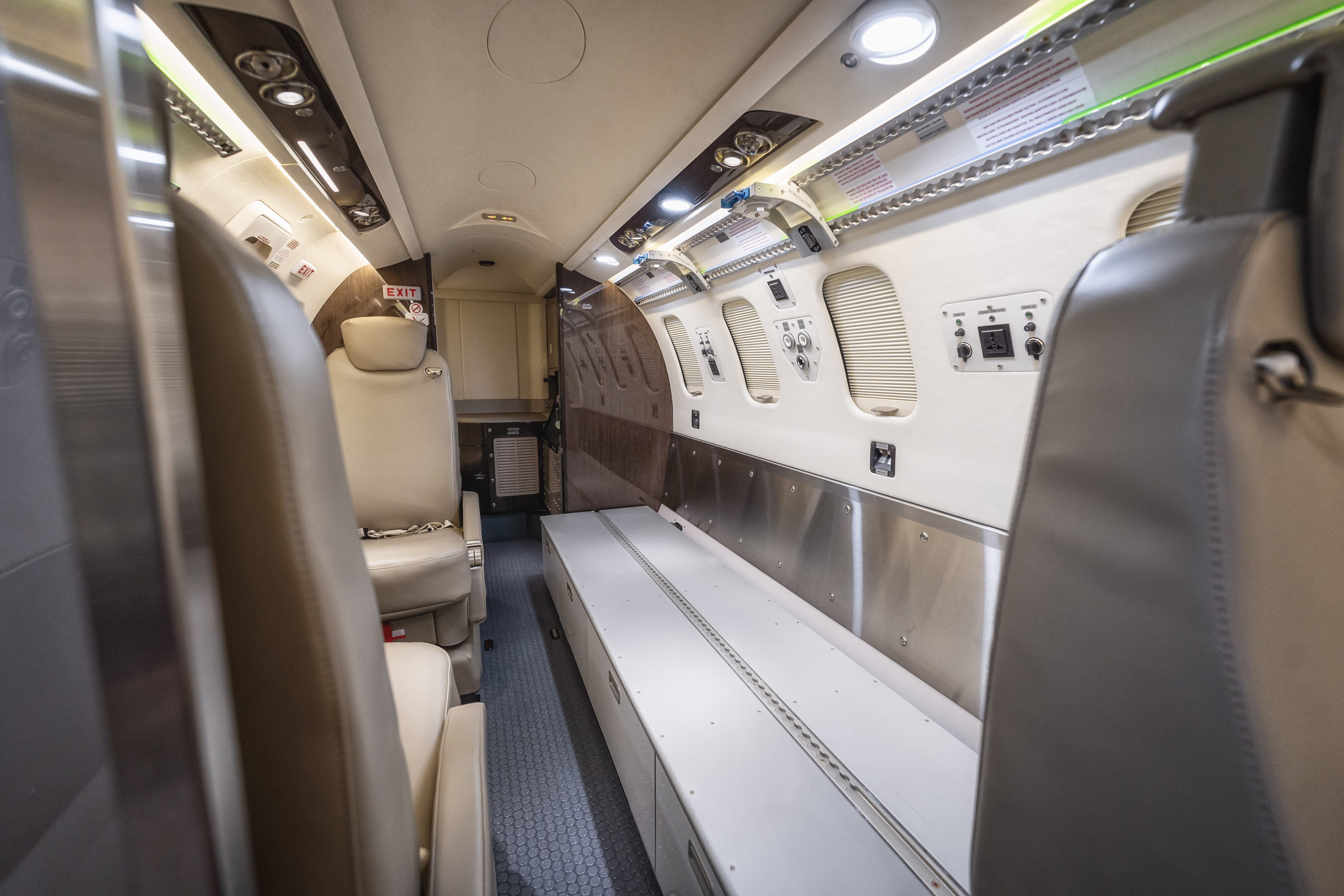

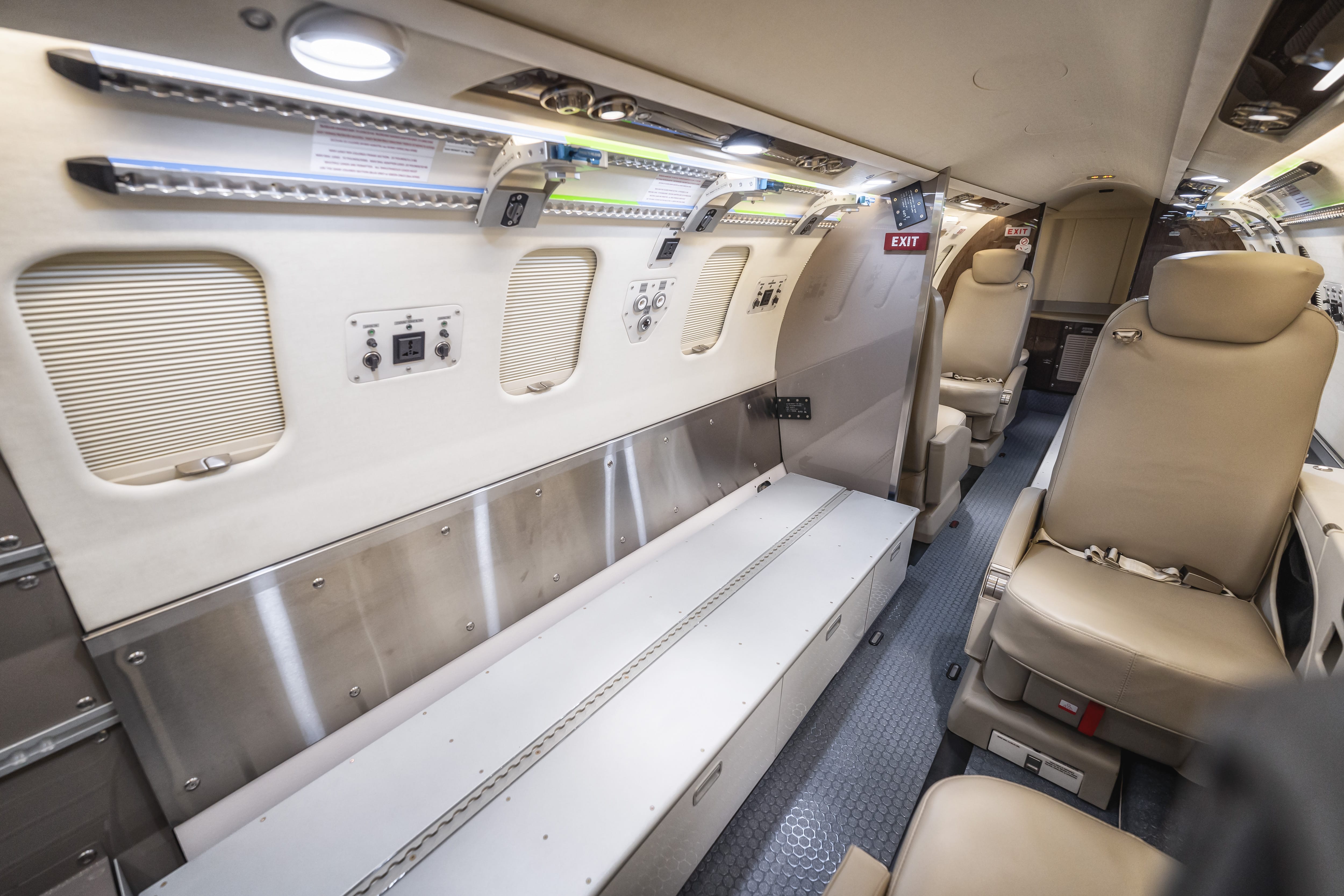

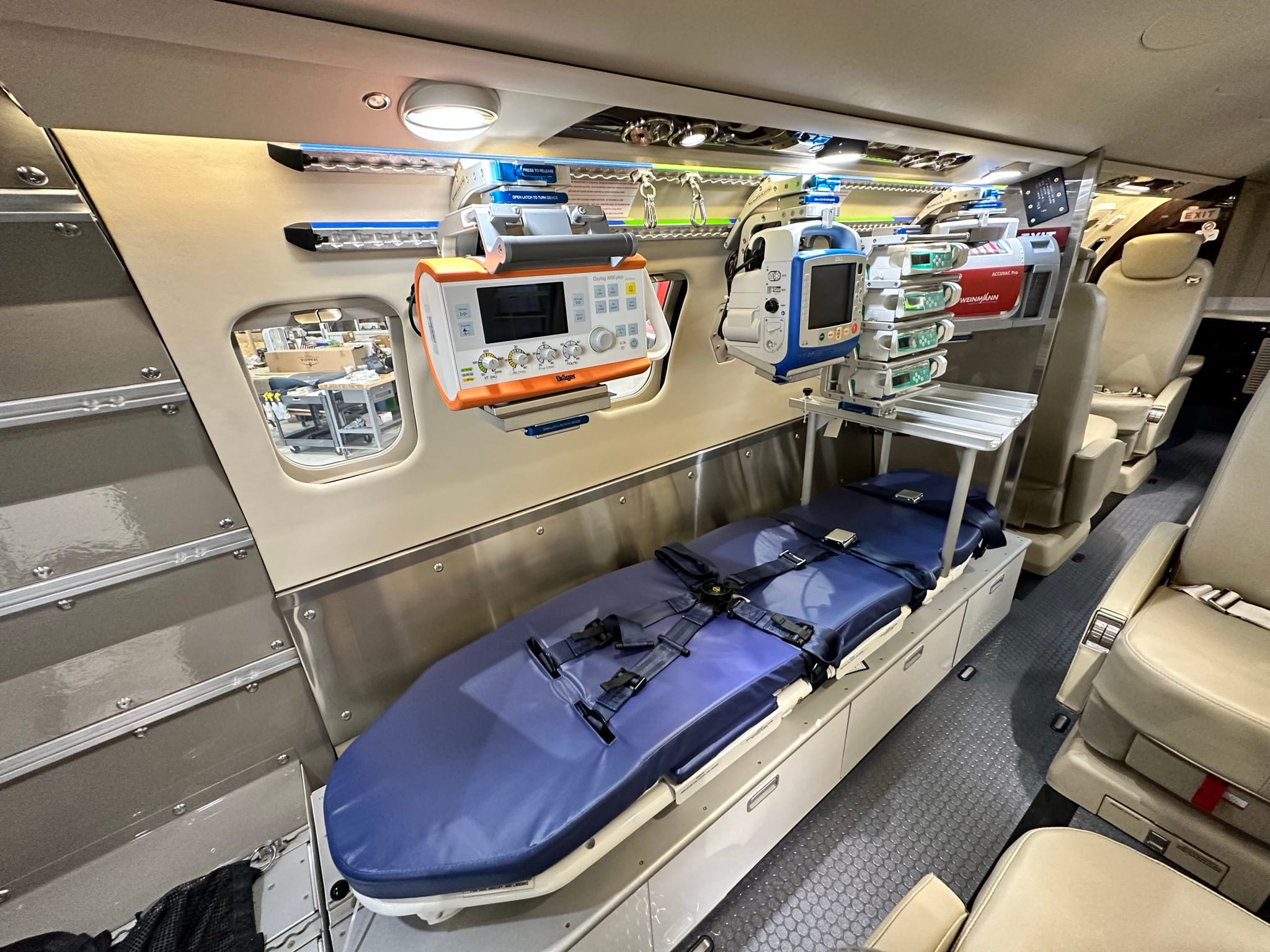

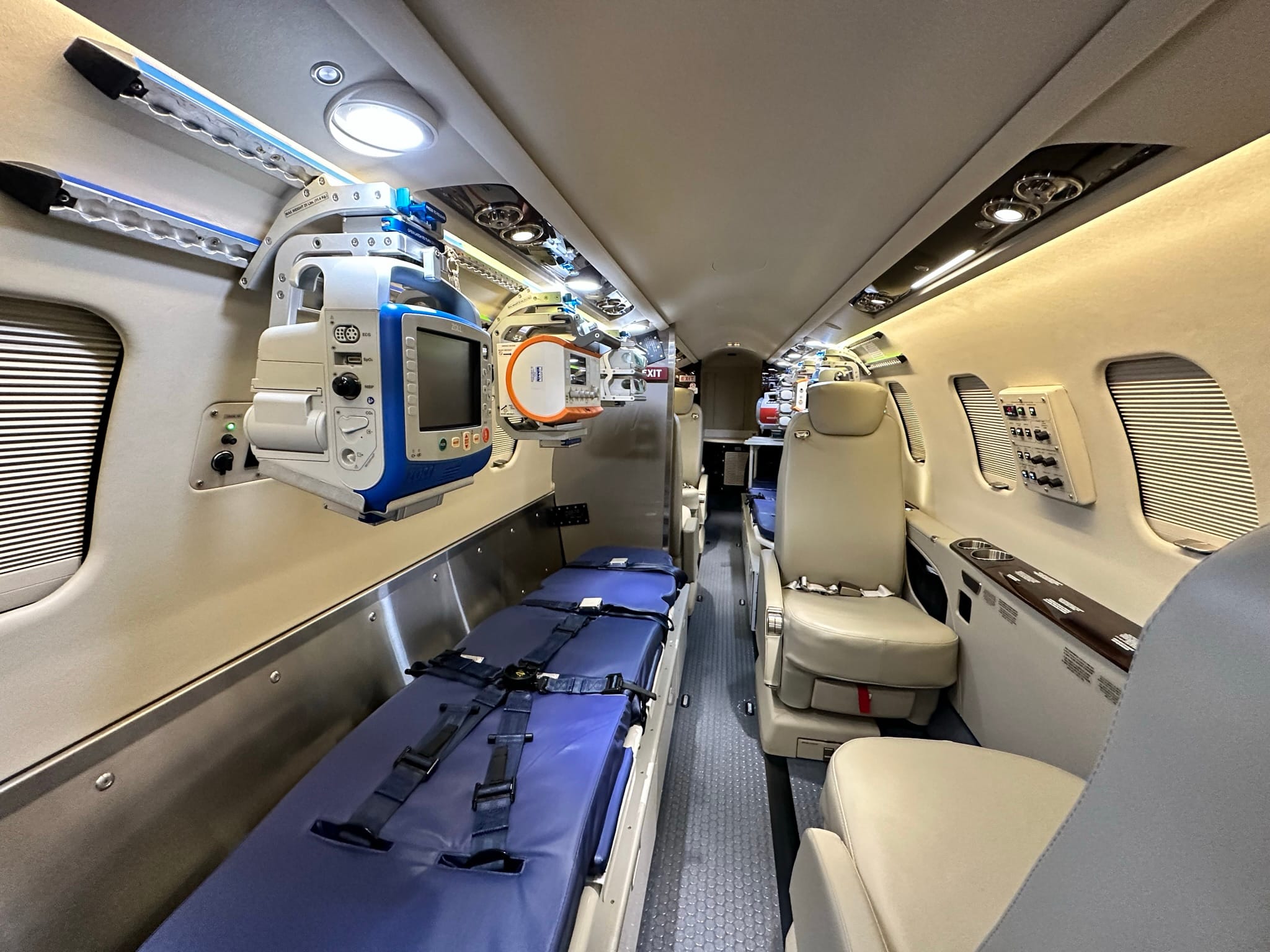

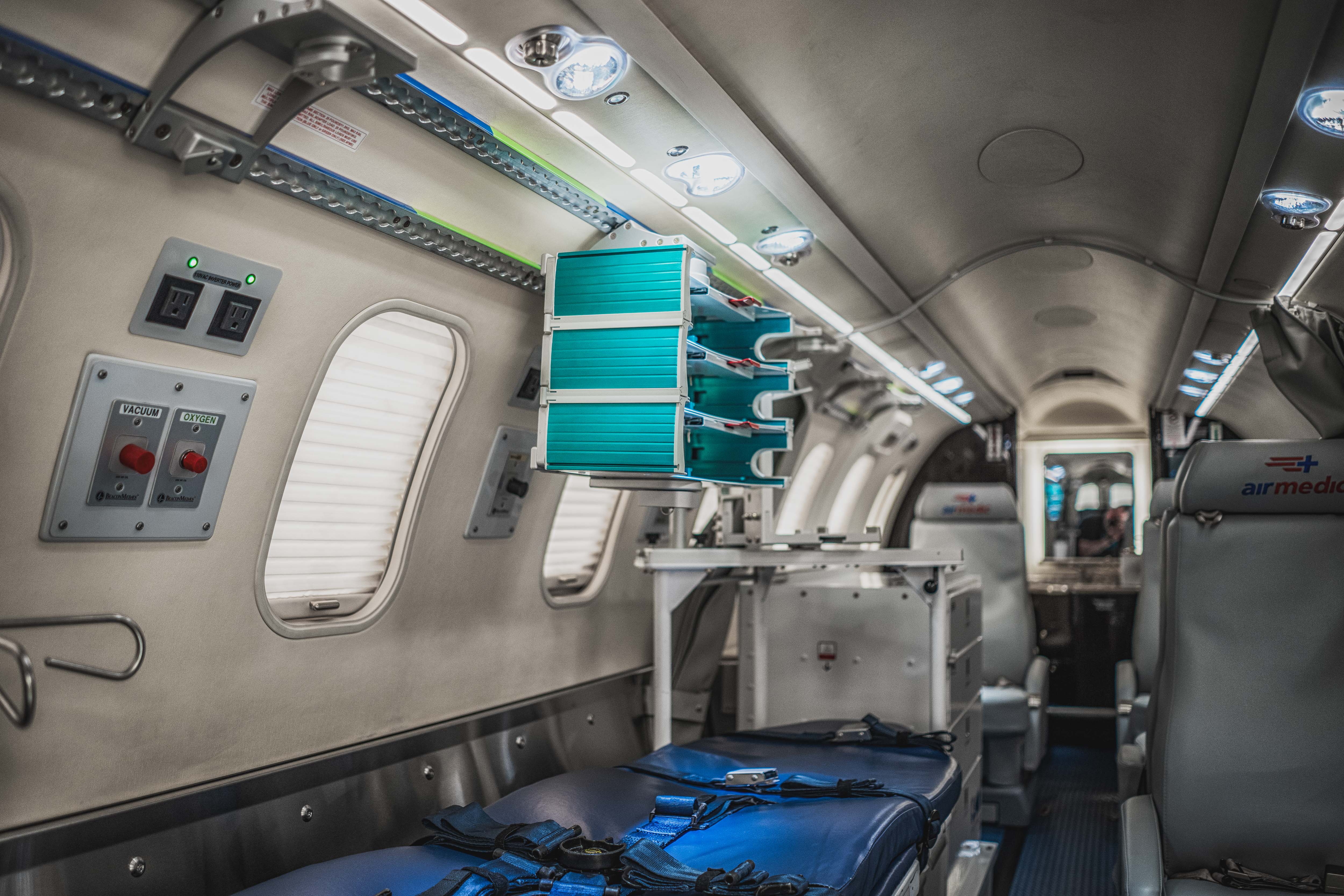

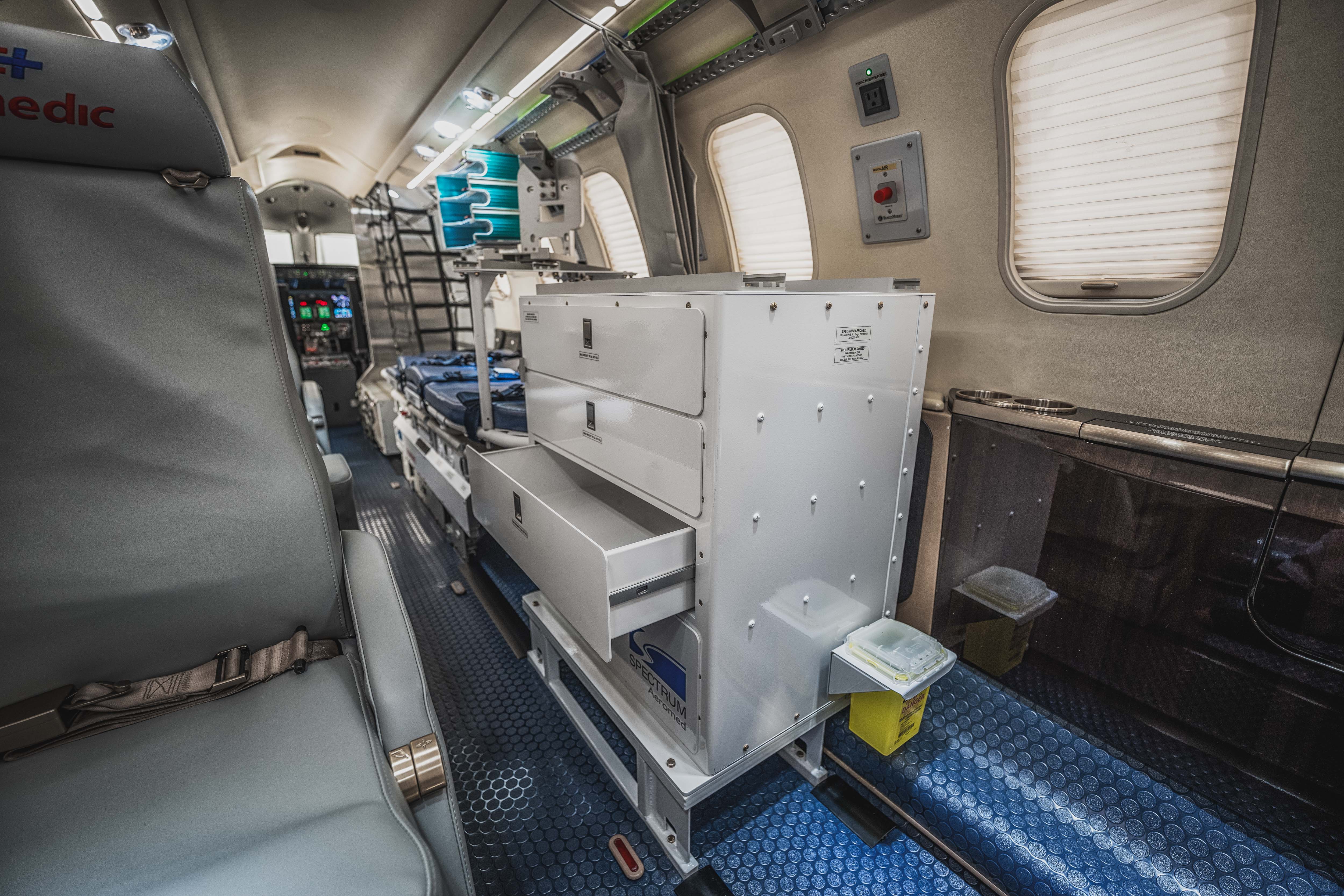

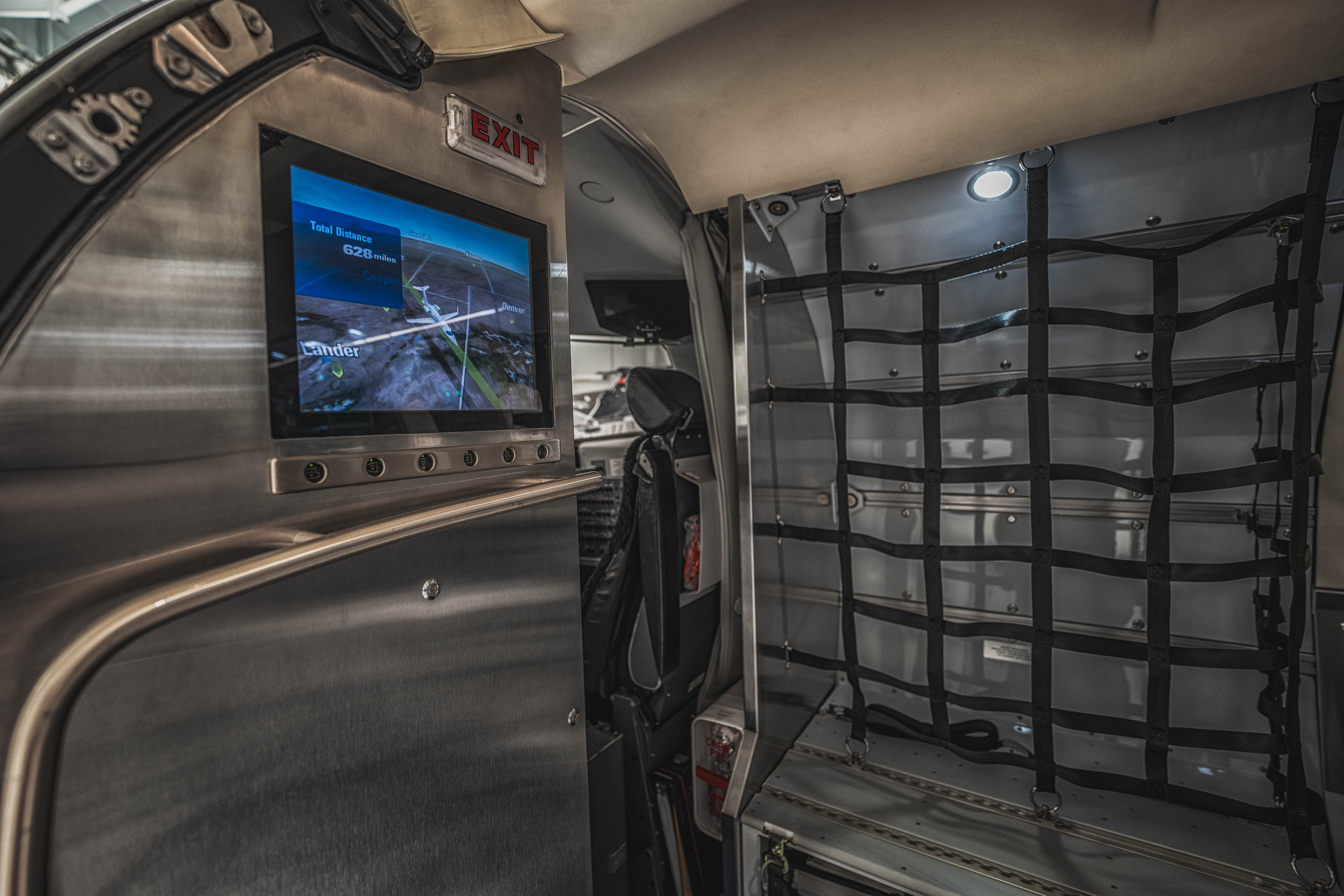

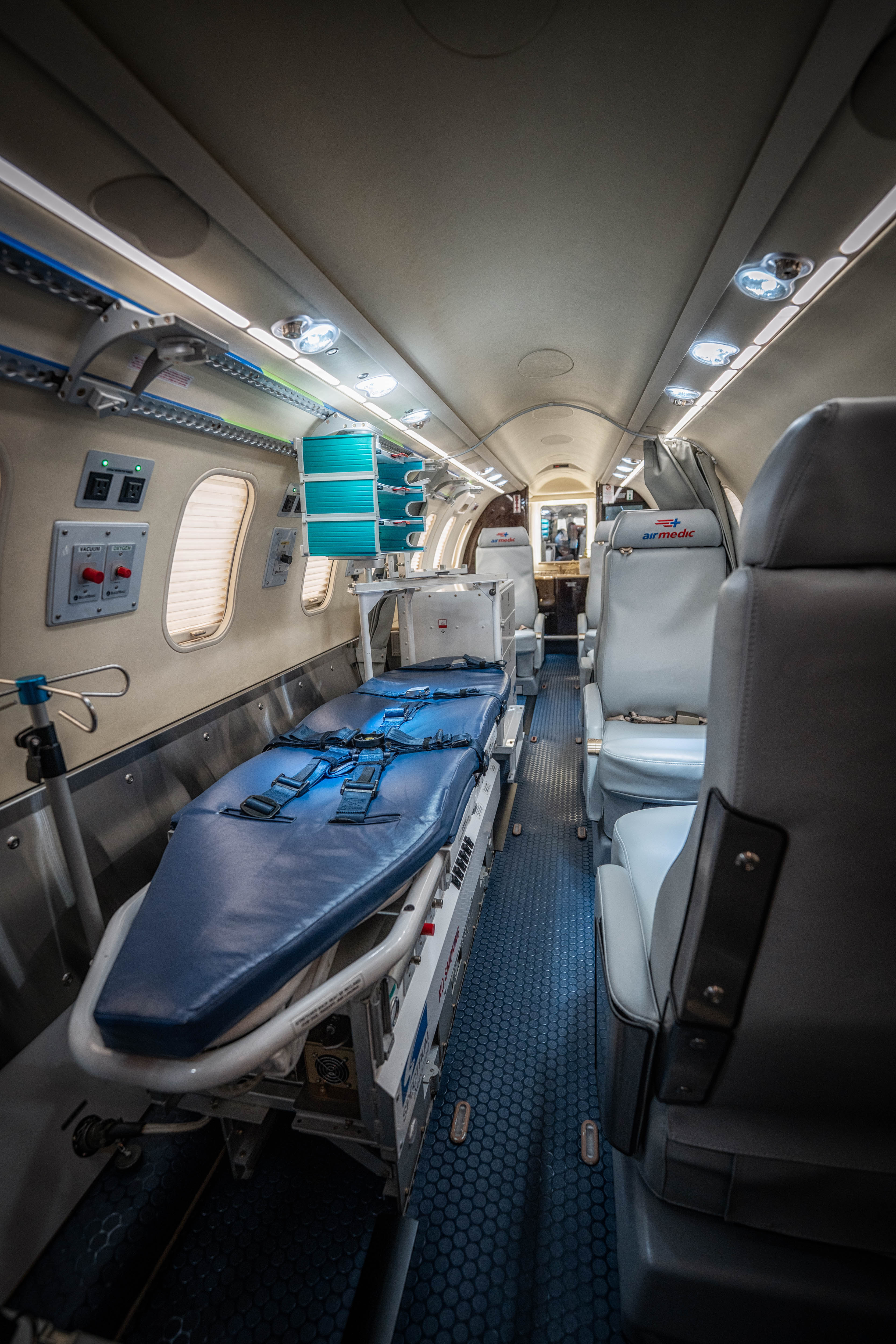

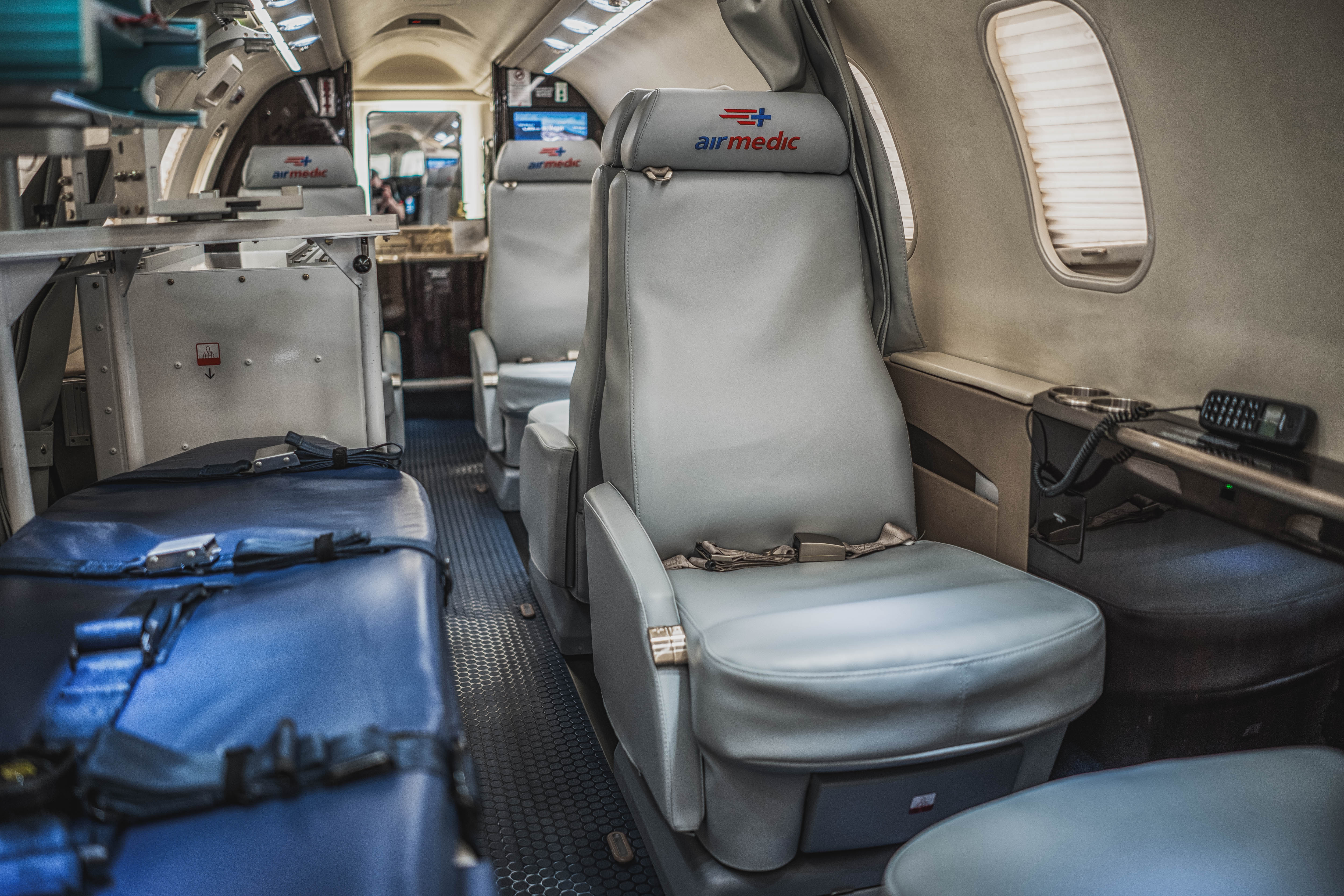

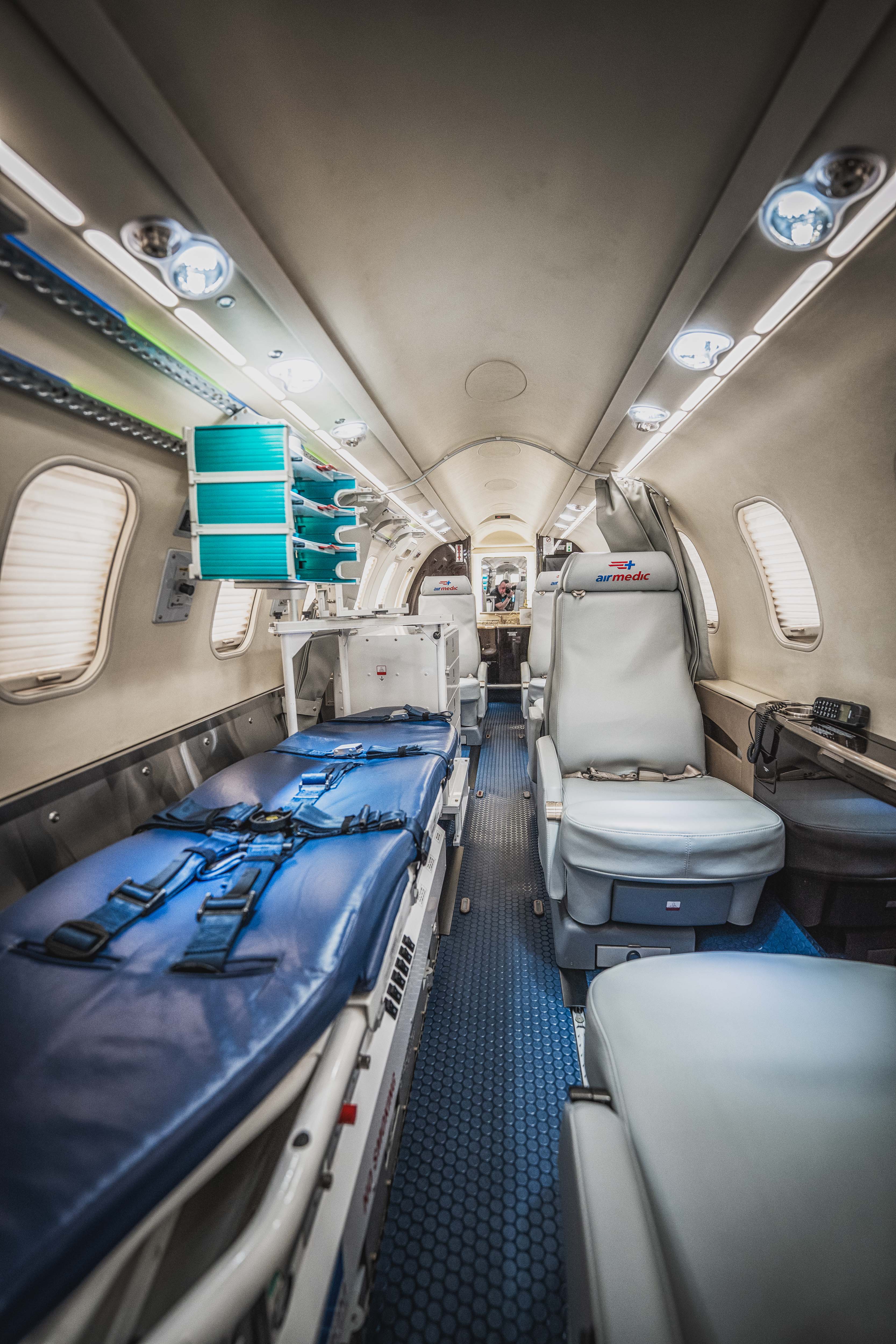

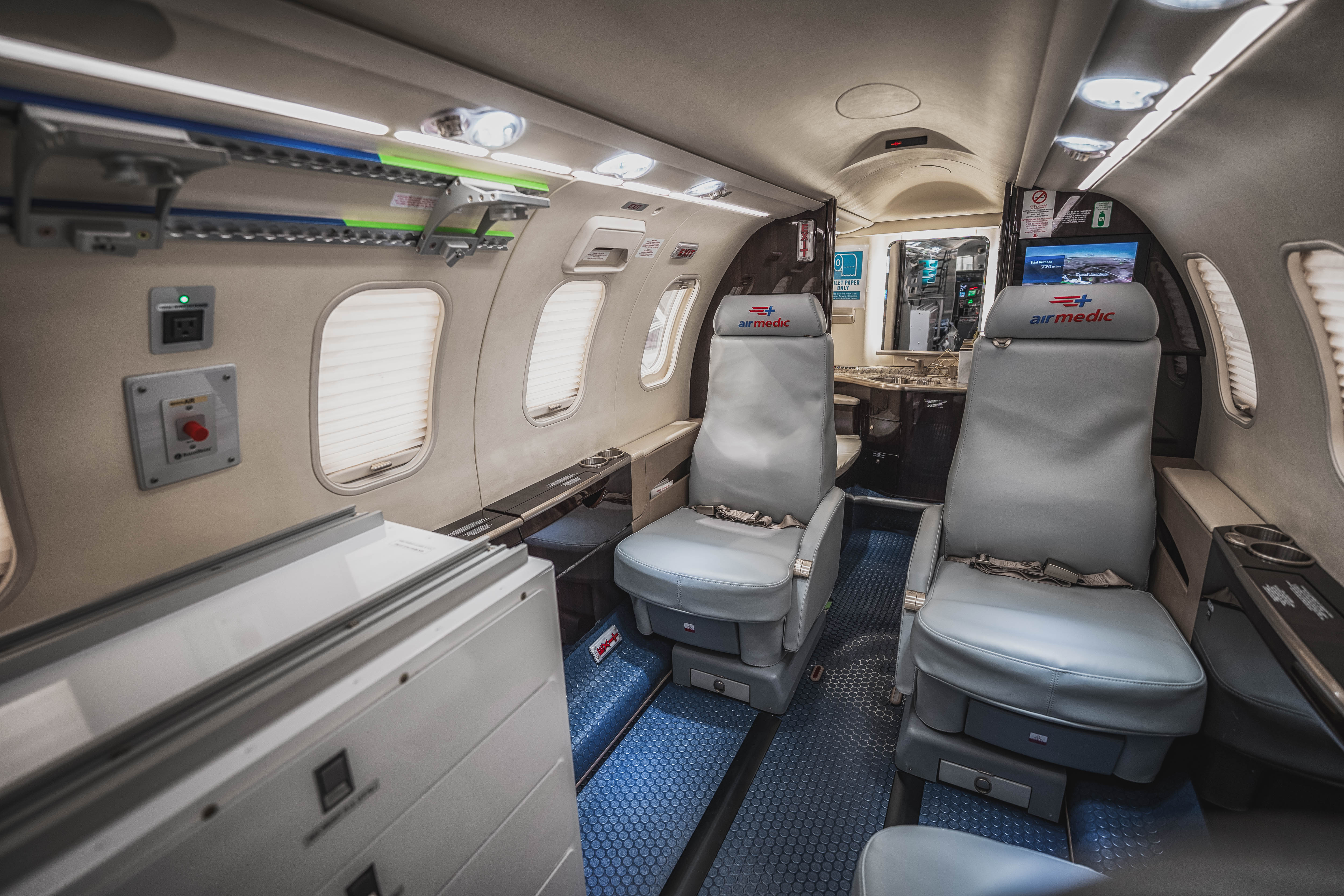

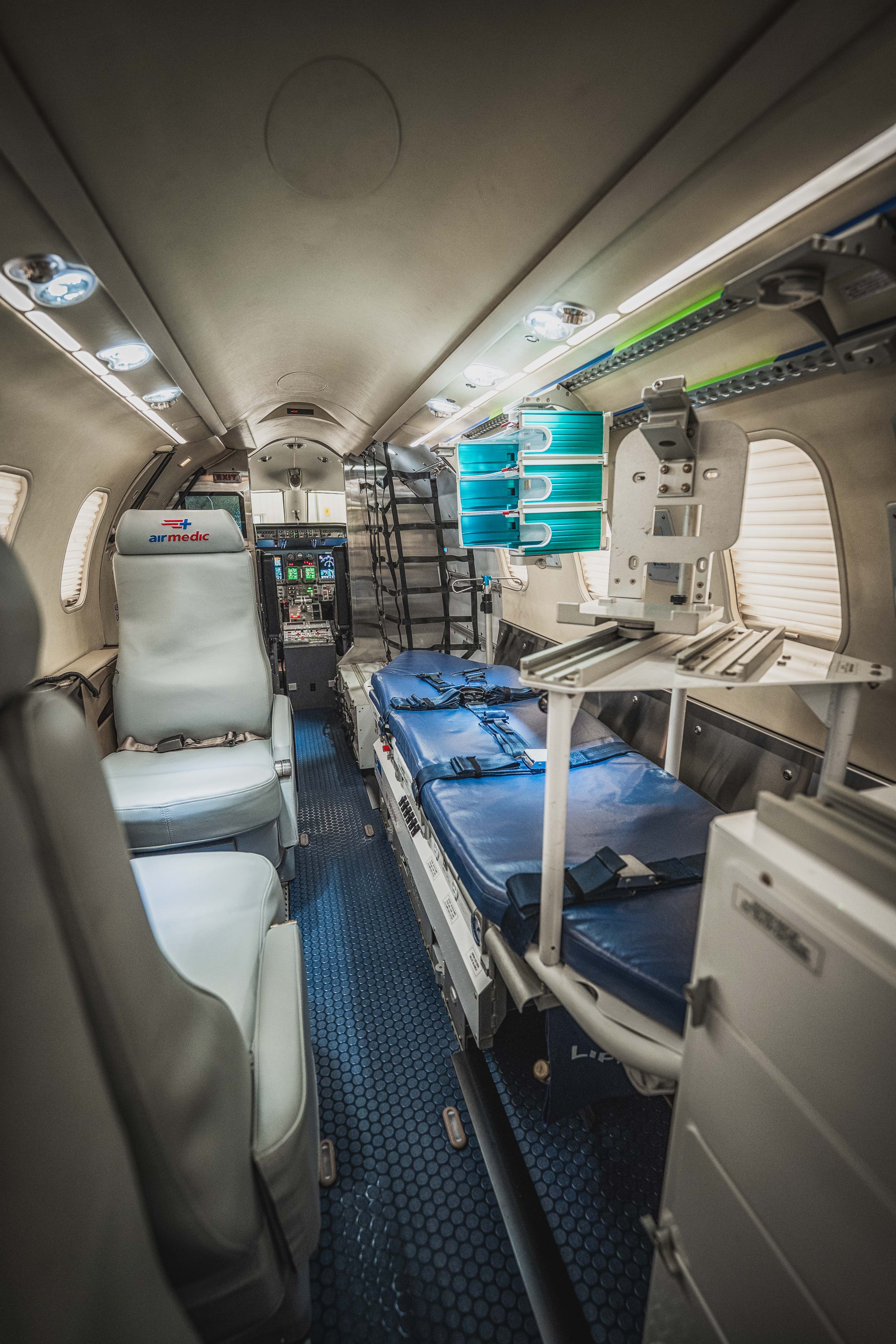

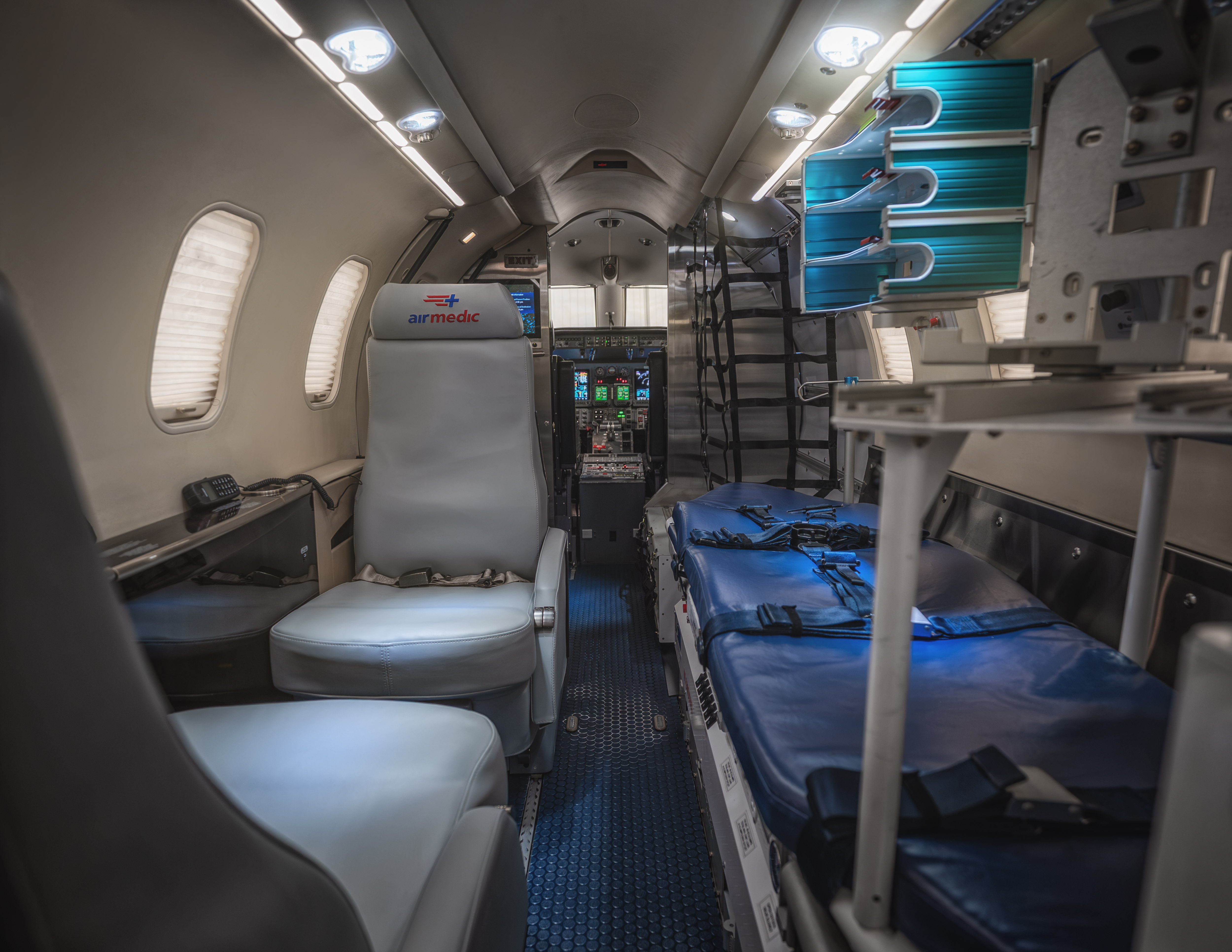

Bombardier Learjet 45 Air Medical Configuration - Dual Bed

Aircraft Modifications & Performance Enhancements

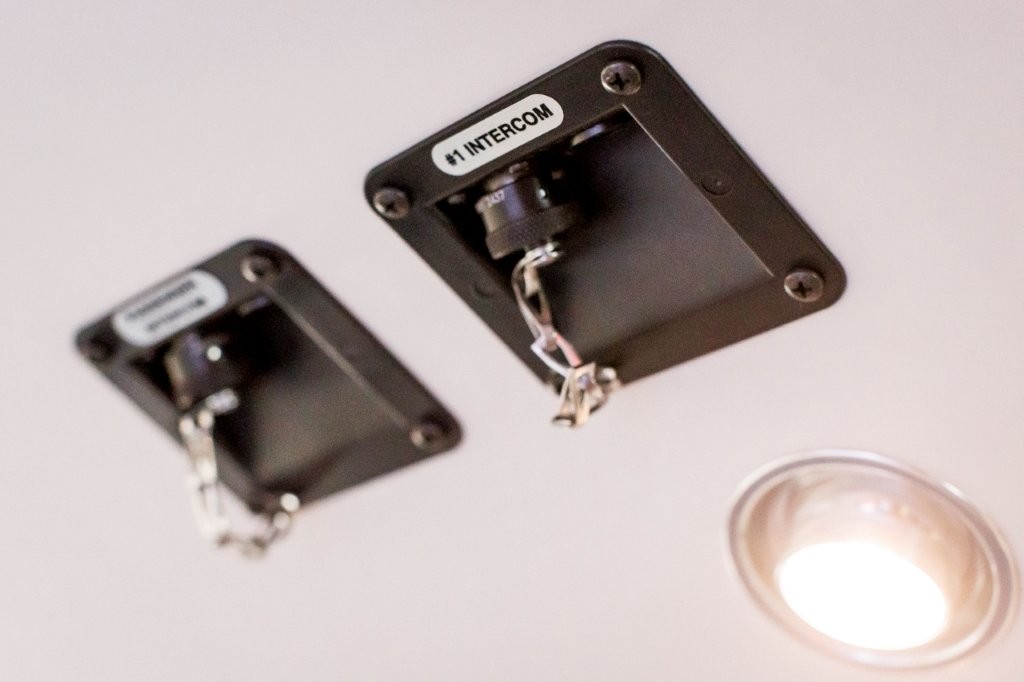

  • Cabin intercom system with 2-way isolate and call functions

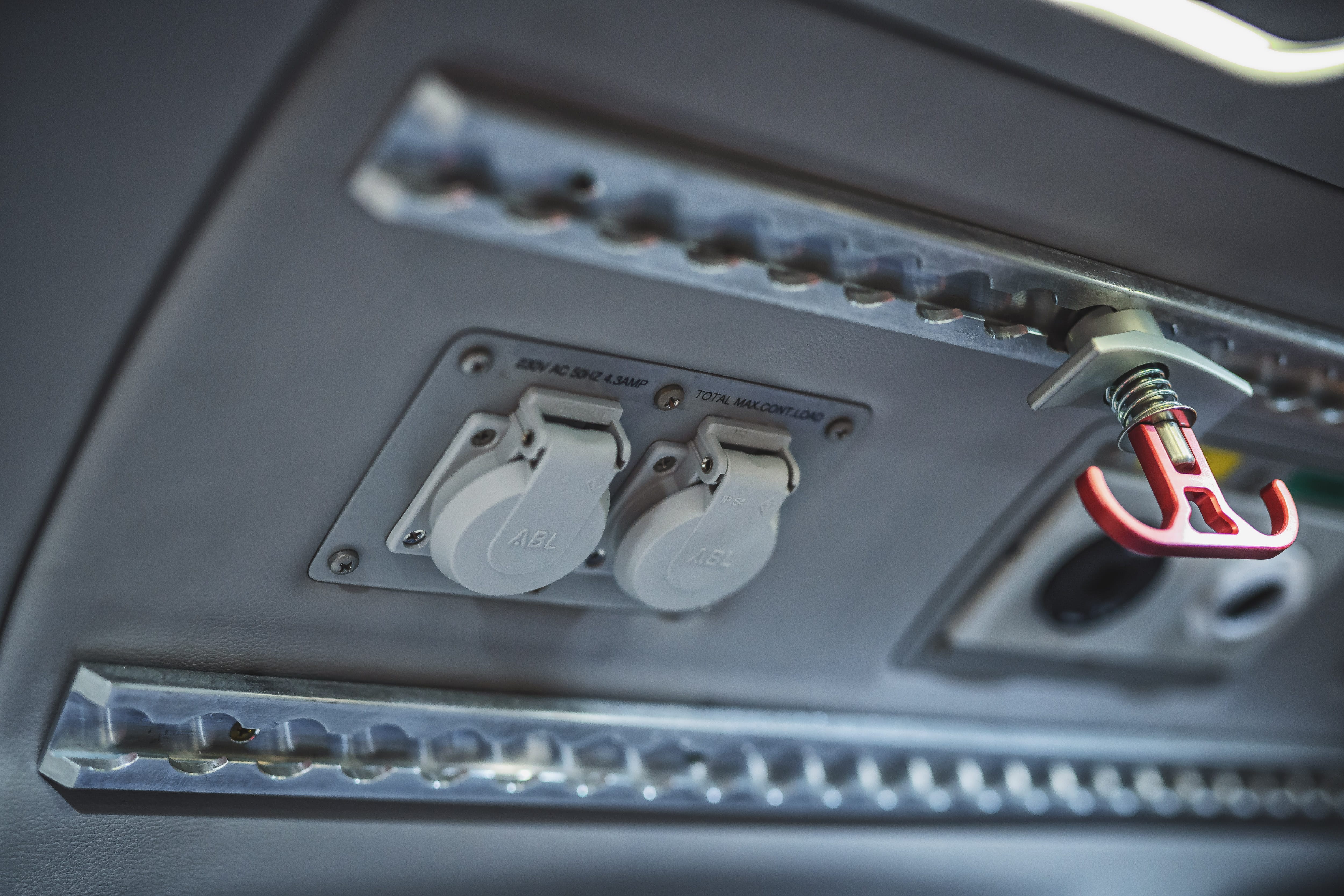

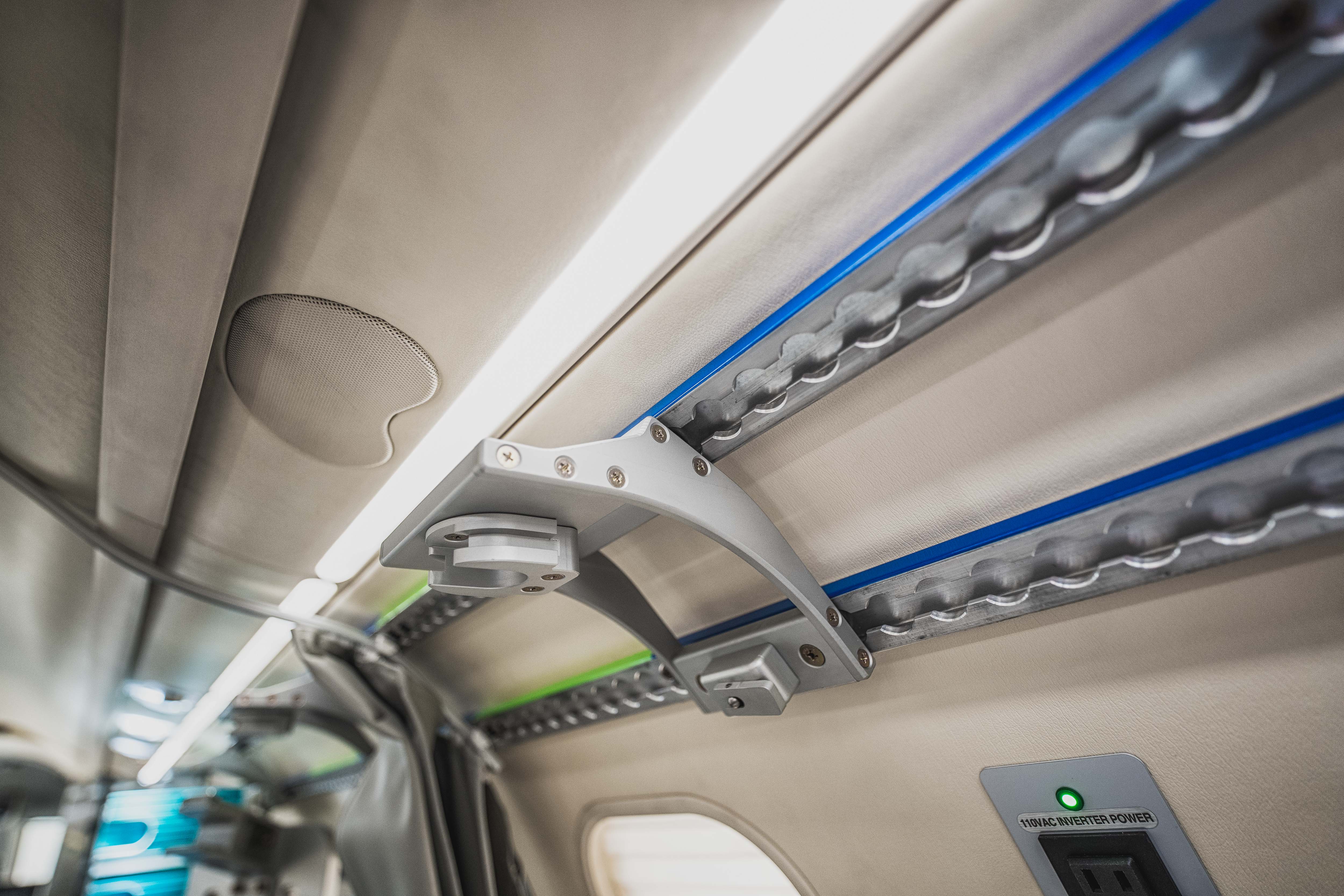

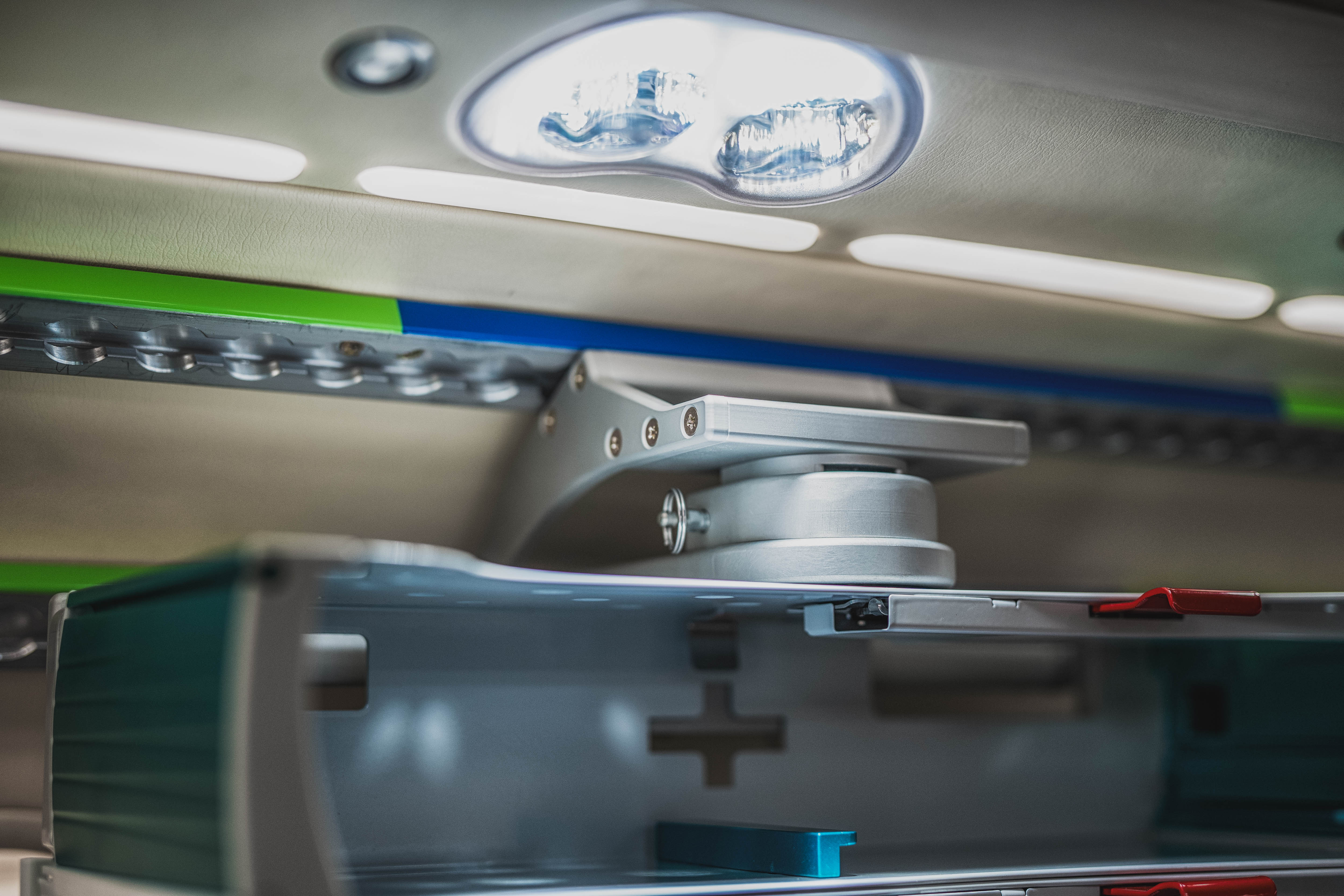

  • Ceiling Brownline track for medical mounts

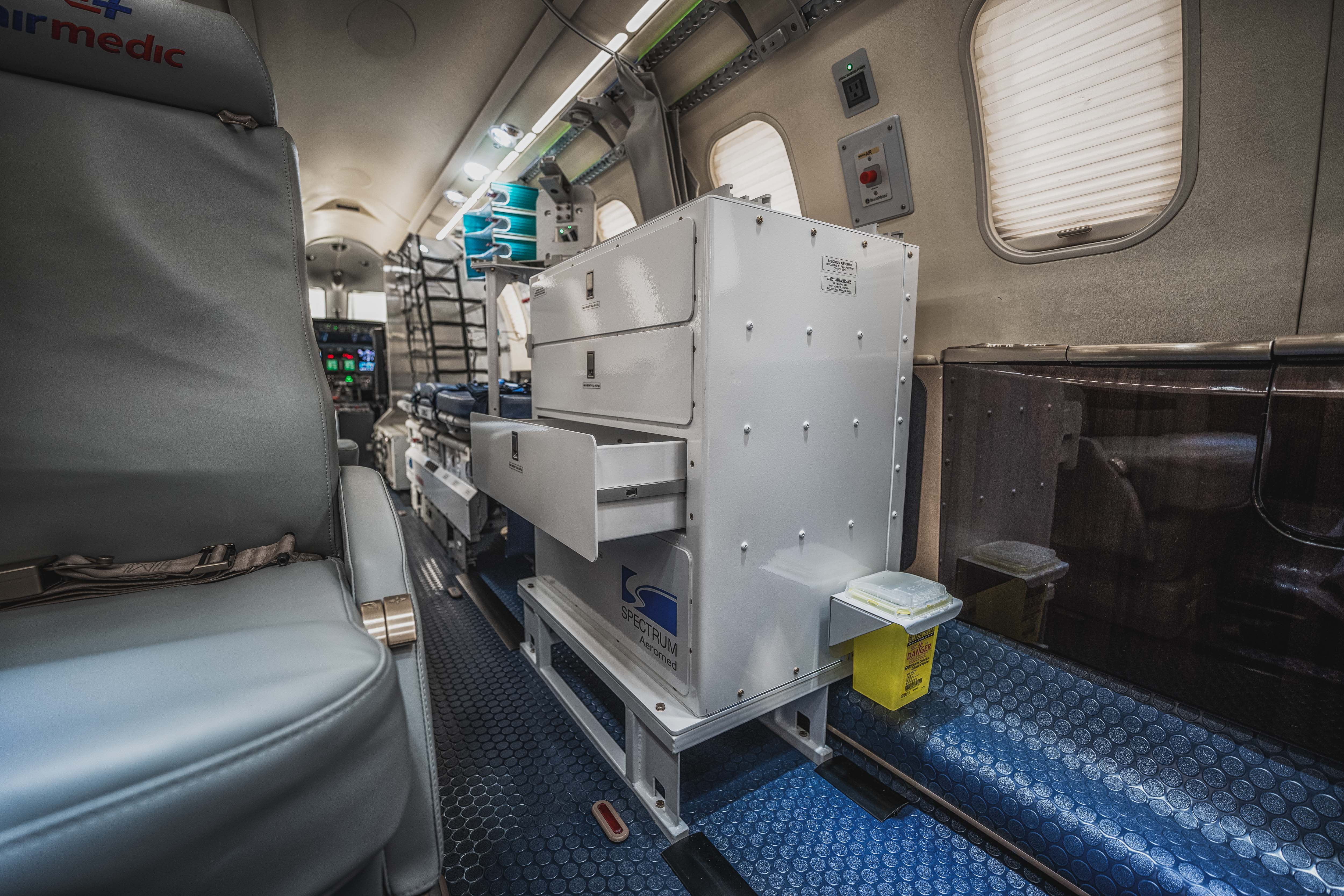

  • Customized fabricated AFT shelving rack
  • Customized cockpit and cabin USB charging solution
  • Customized fabricated medical sidewall
  • Dual universal UNS-1Ew FMS WAAS/LPV upgrades
  • Honeywell Primus II RCZ/RMU ADS-B upgrades
  • LED cabin lighting with LED spot lighting for patient loading and care

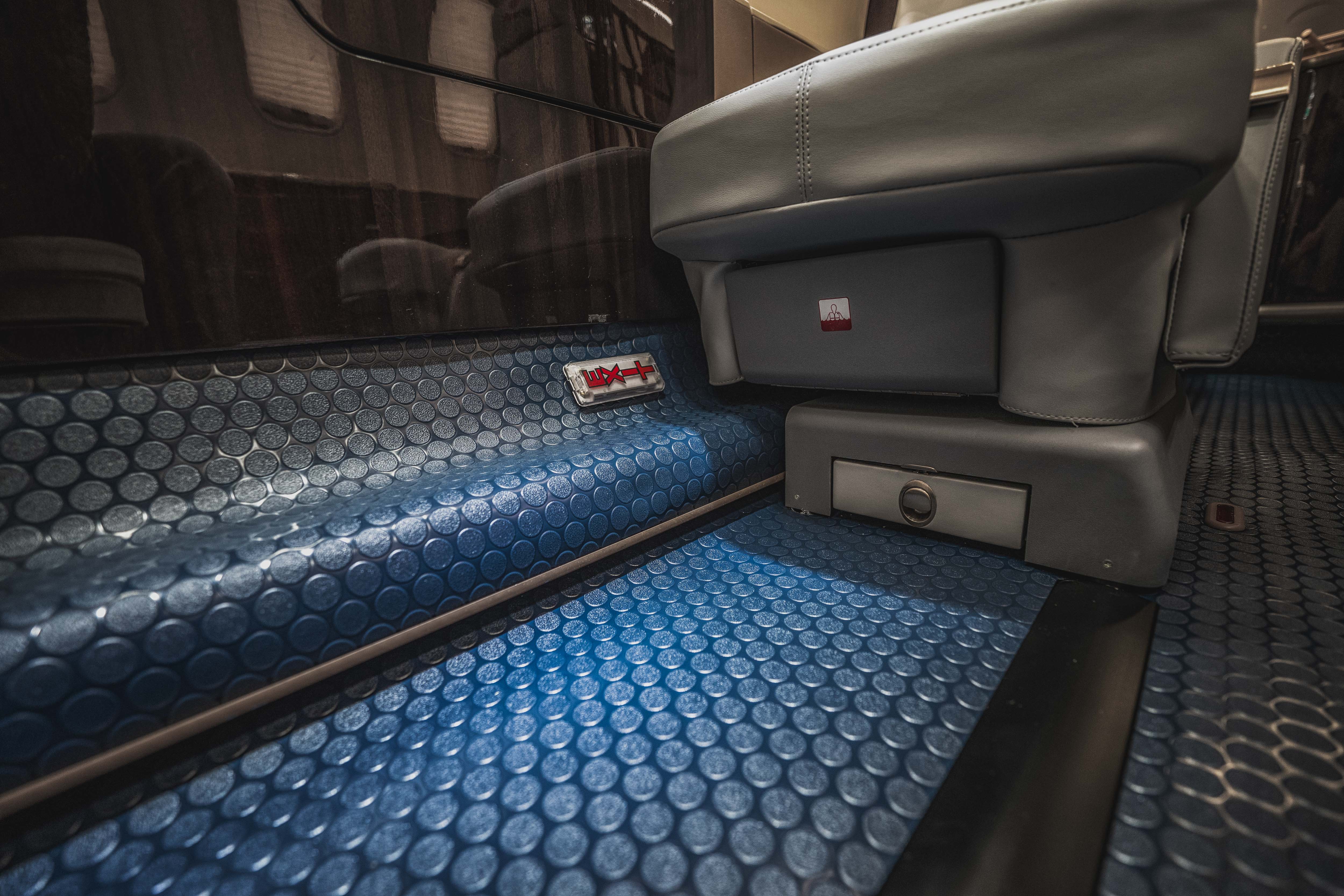

  • Loncoin medical flooring with foam backing

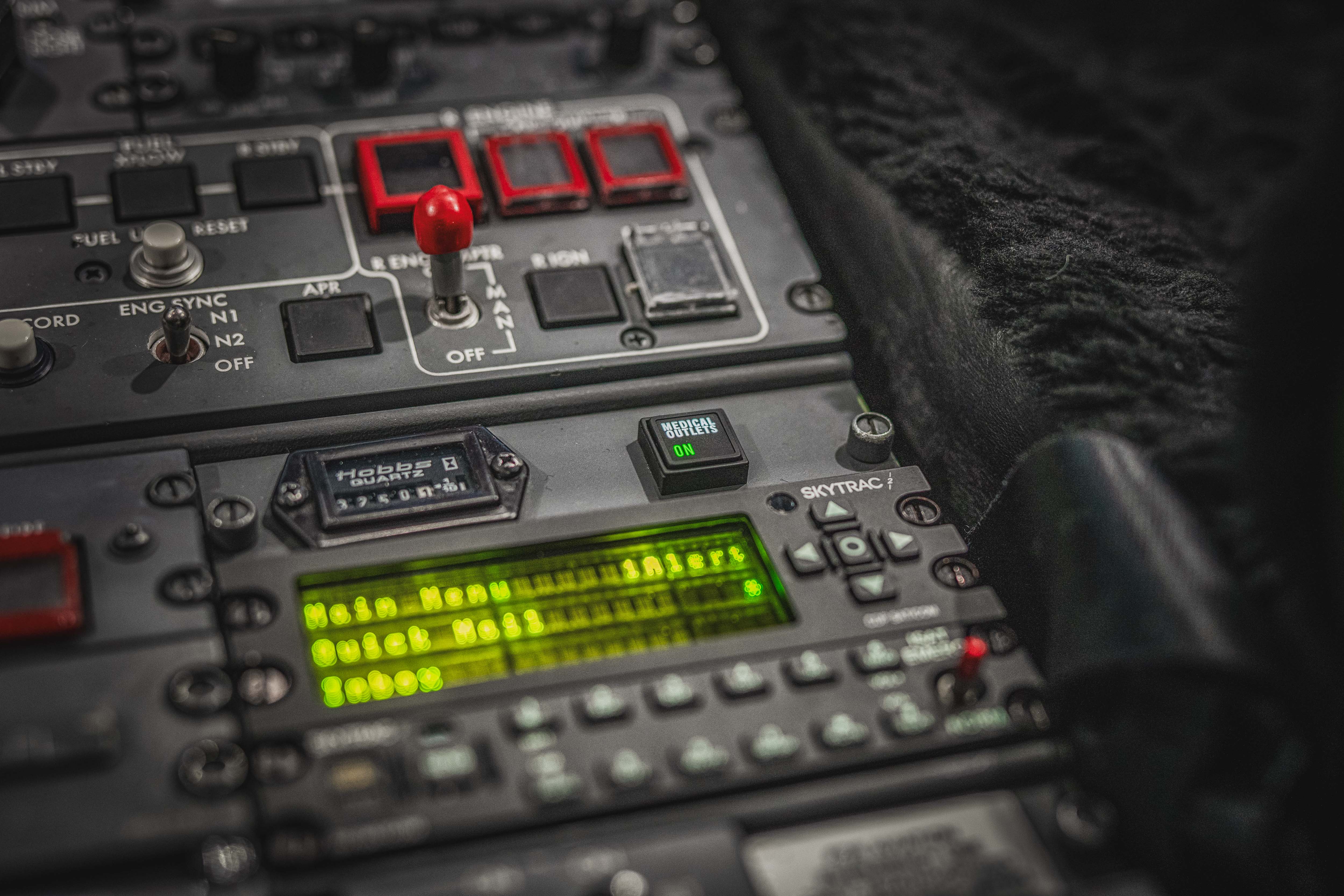

  • Skytrac ISAT-200A system (Talk, Text, Track)
  • Stainless steel partition covers

PILATUS PC-12

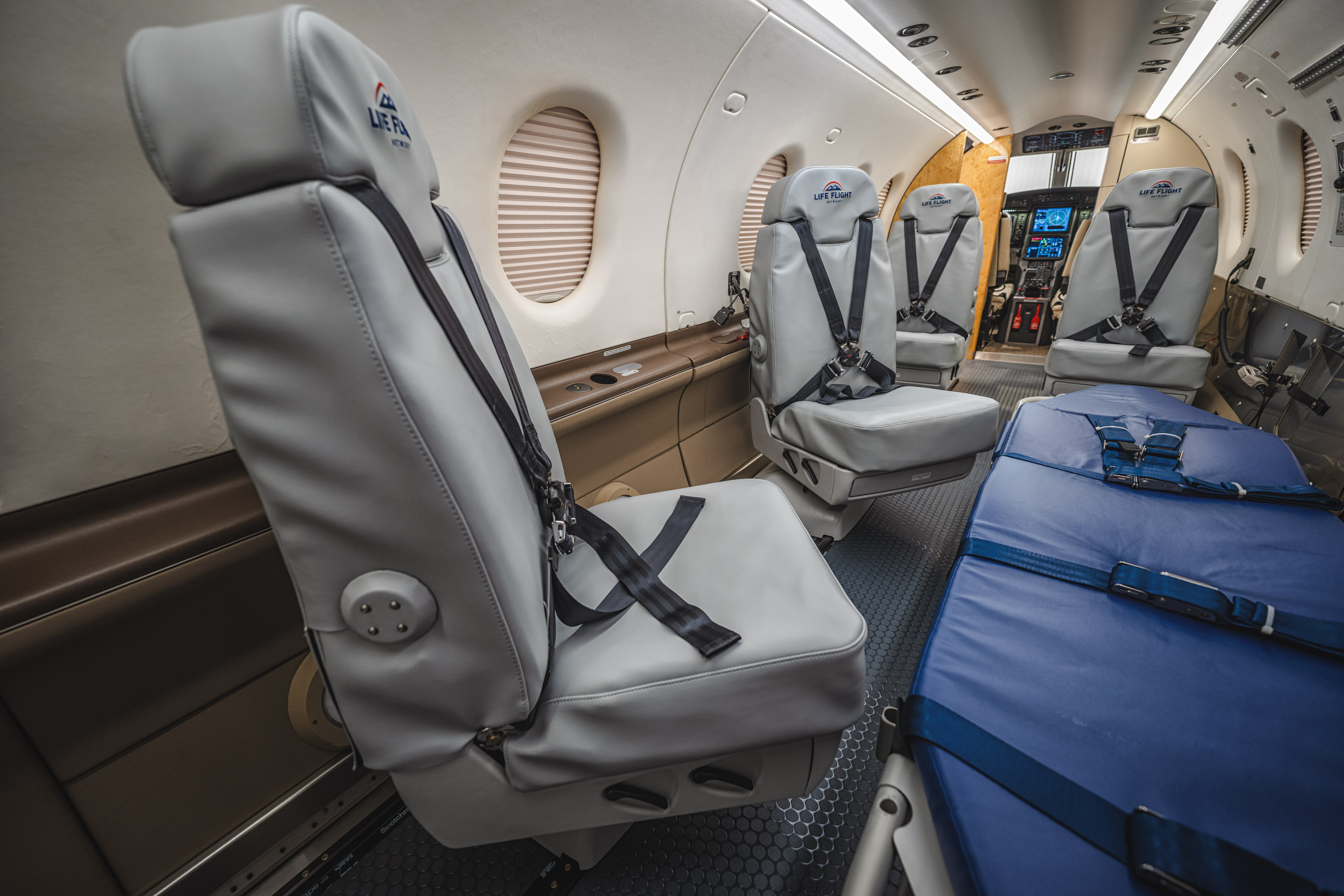

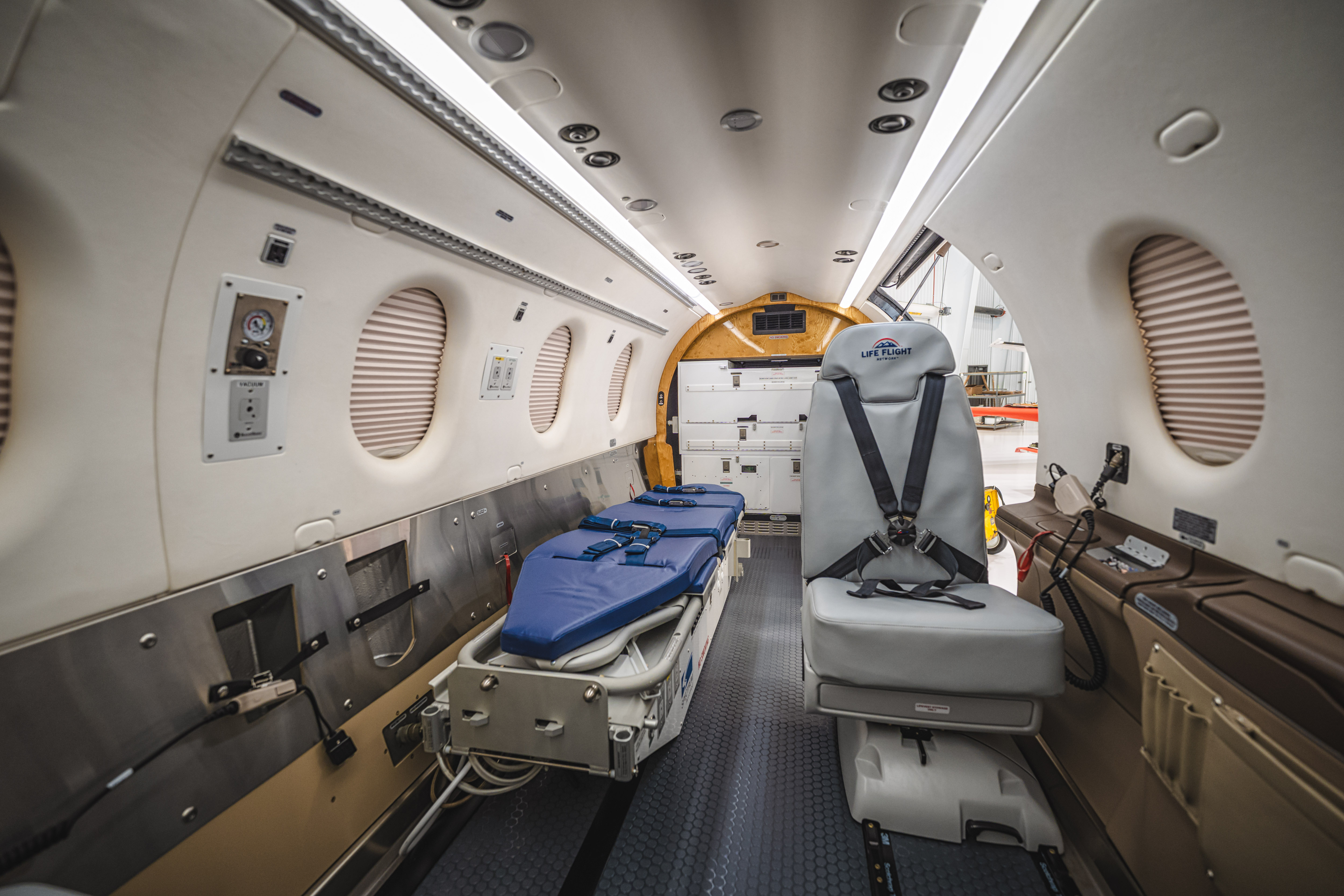

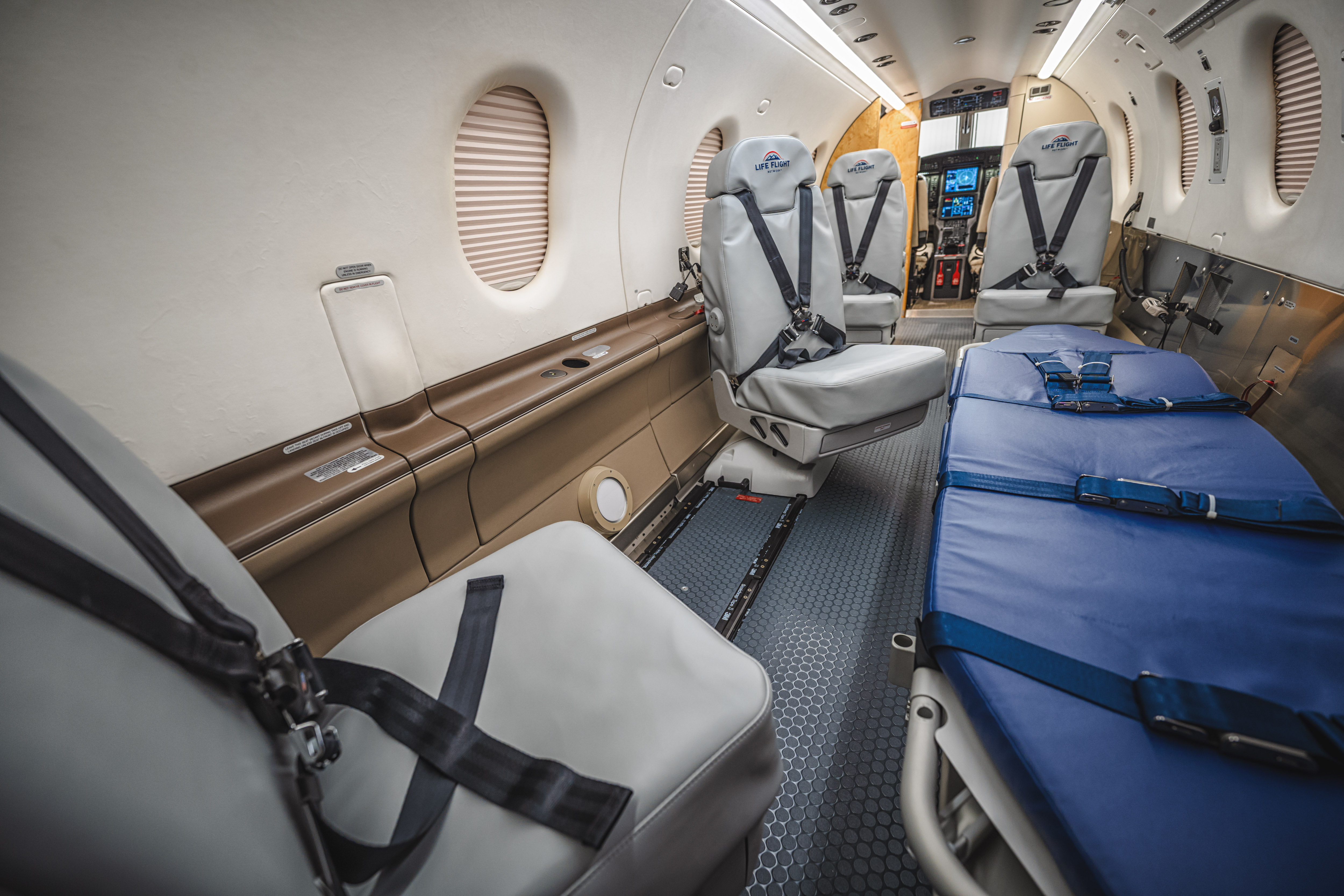

Pilatus PC-12 Air Medical Configuration - Single Bed

Aircraft Modifications & Performance Enhancements

  • Cabin intercom system with 2-way isolate and call functions

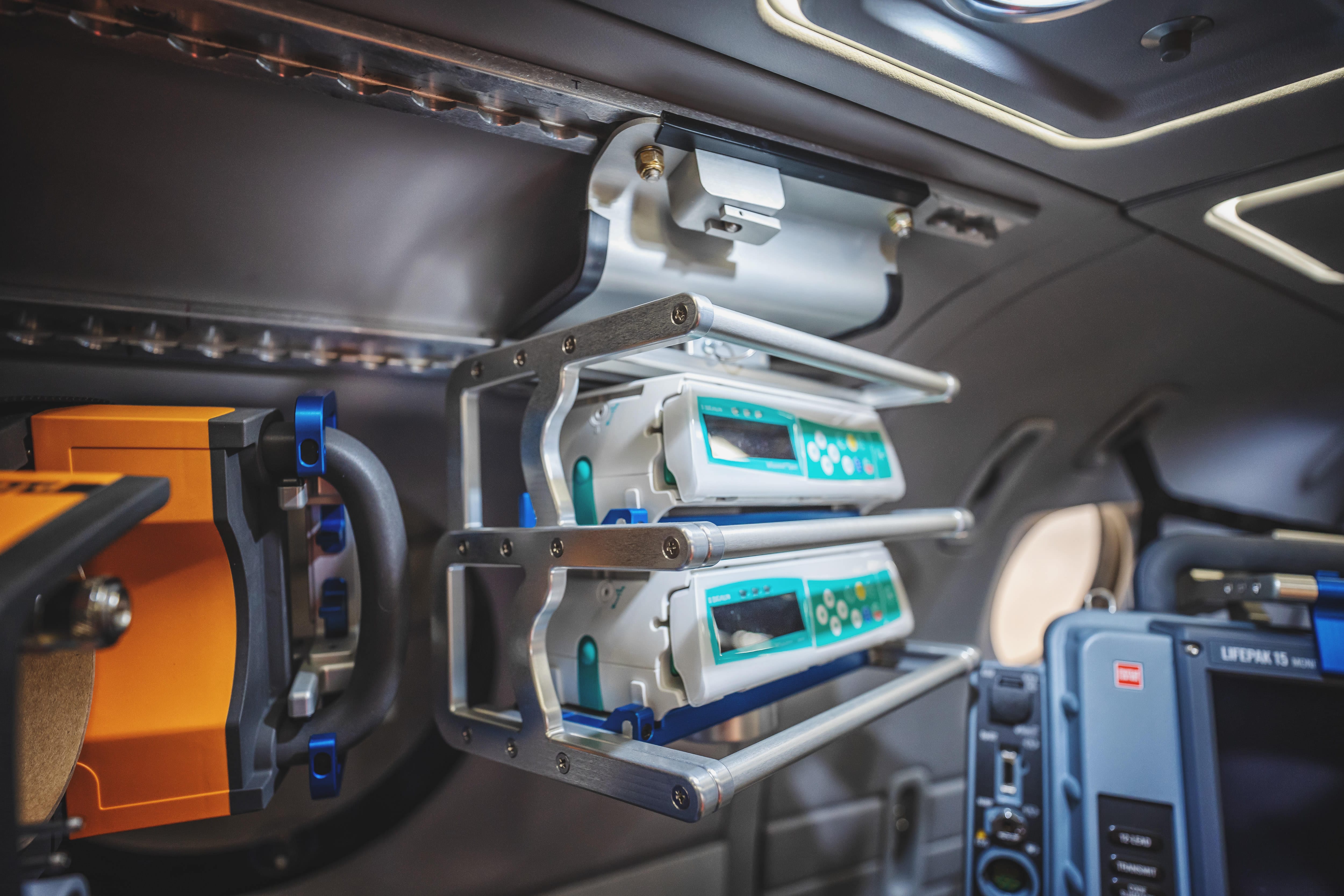

  • Ceiling Brownline track for medical mounts
  • Customized fabricated medical sidewall

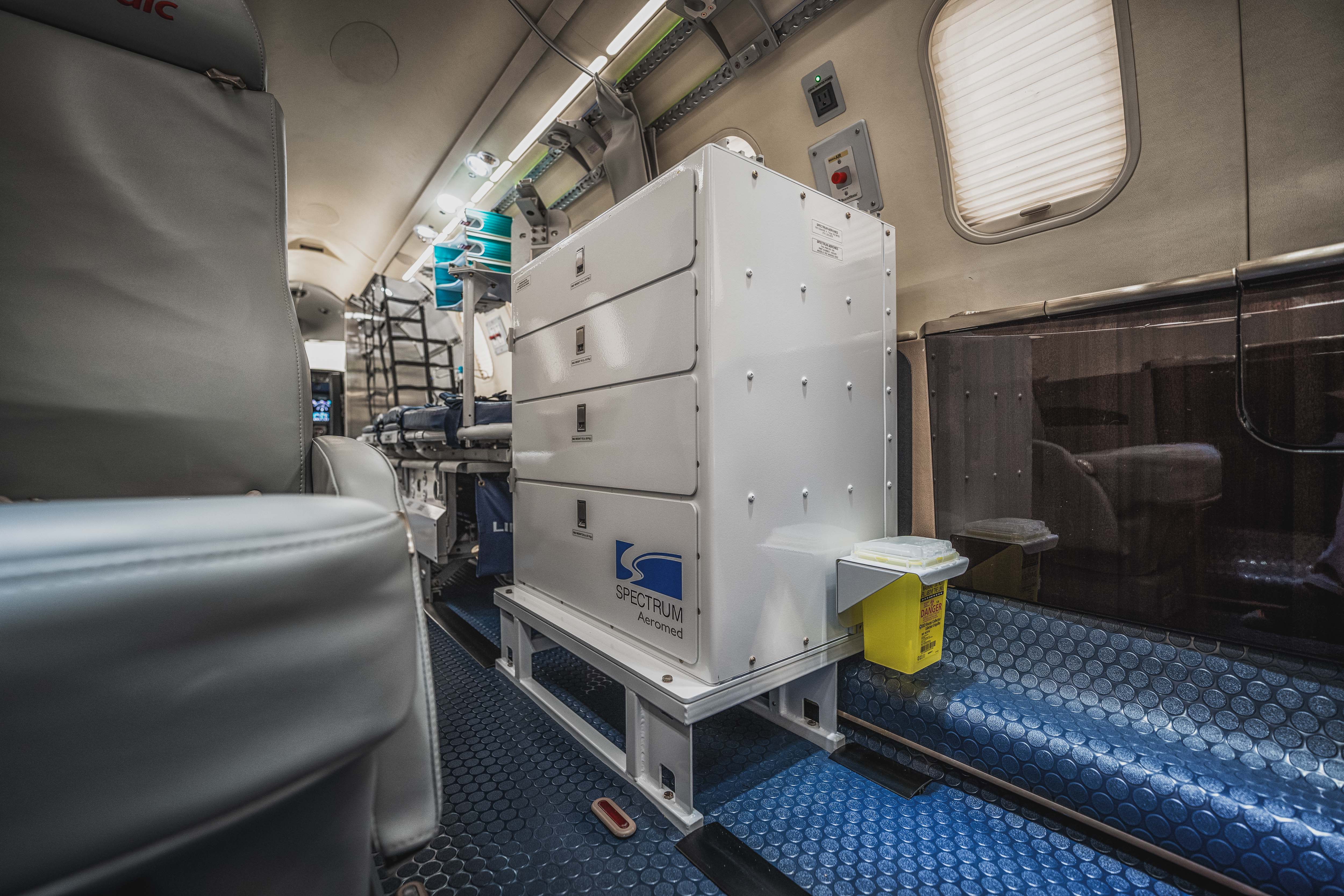

  • Customized medical cabinet

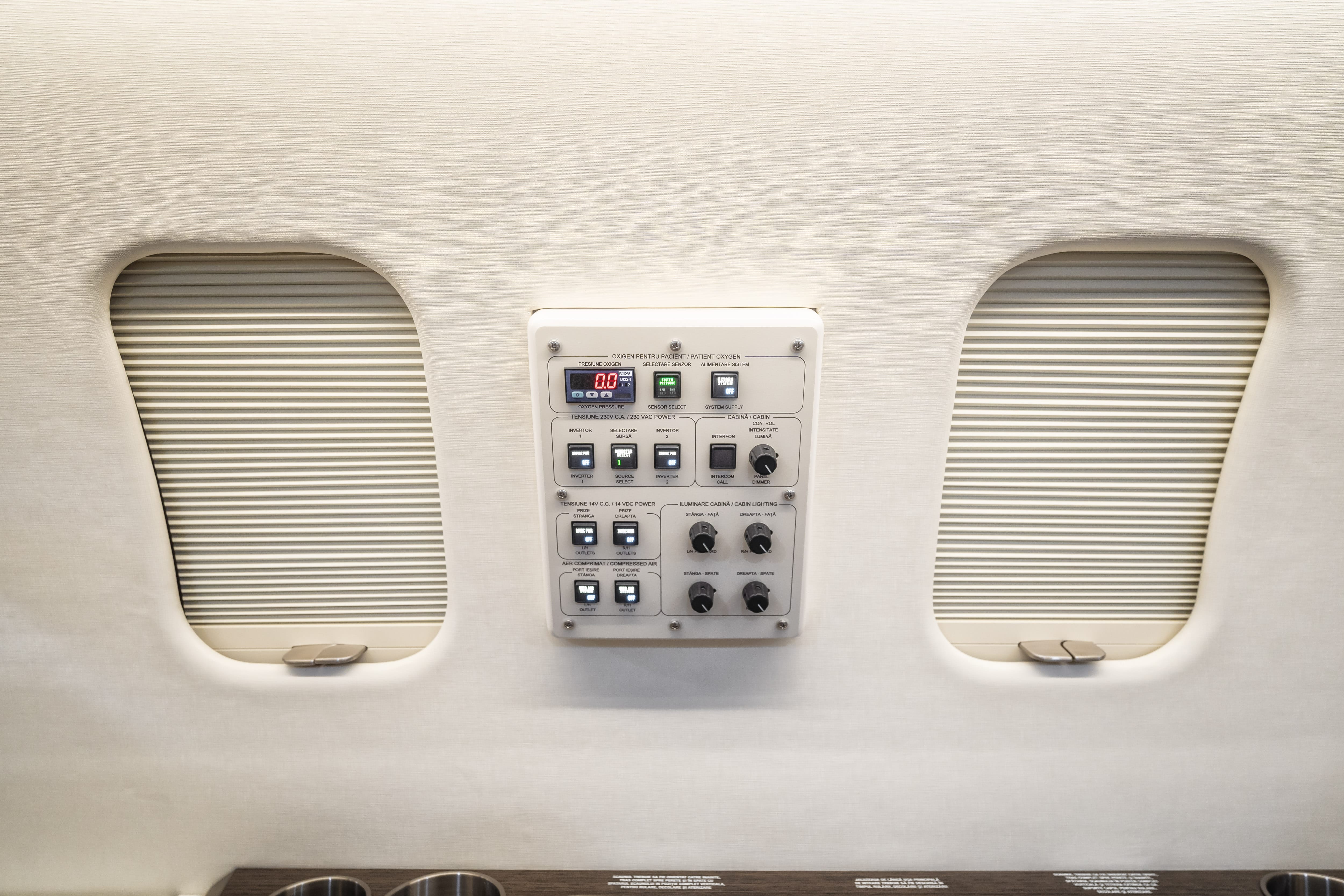

  • Cabin audio control panel
  • LED cabin lighting
  • LED spot light for patient/cargo loading door
  • Loncoin medical flooring with foam backing
  • Seat covers with custom embroidery

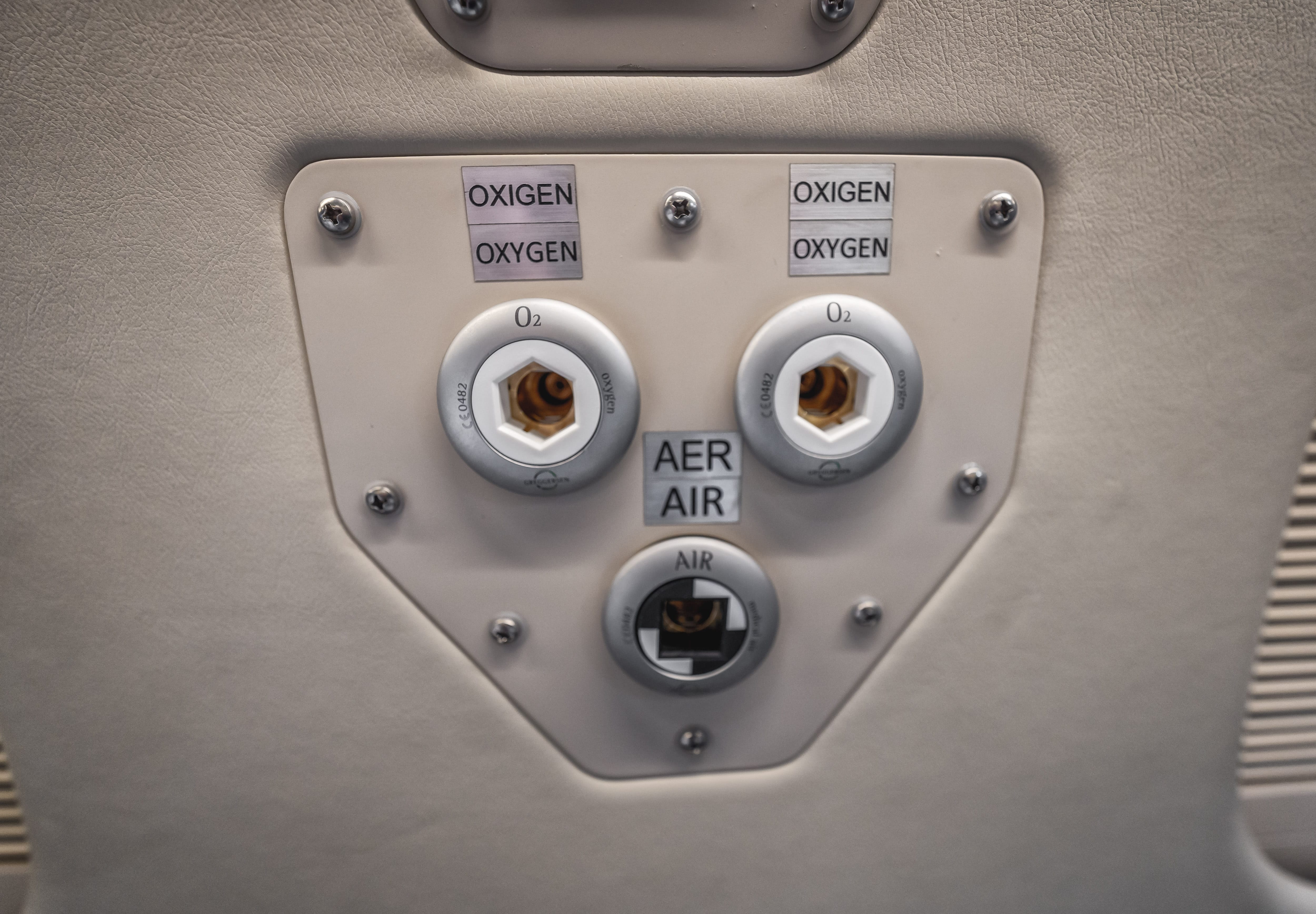

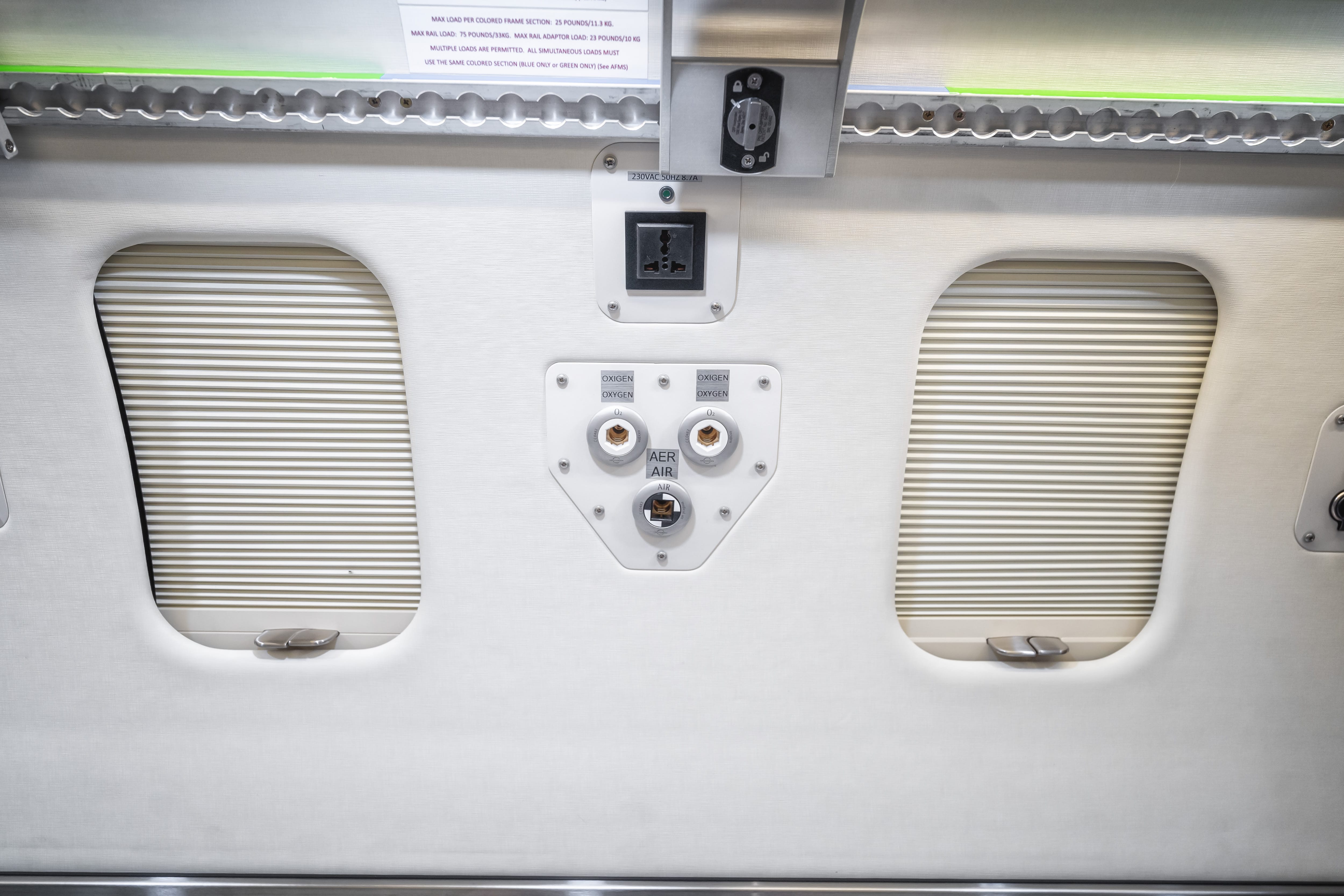

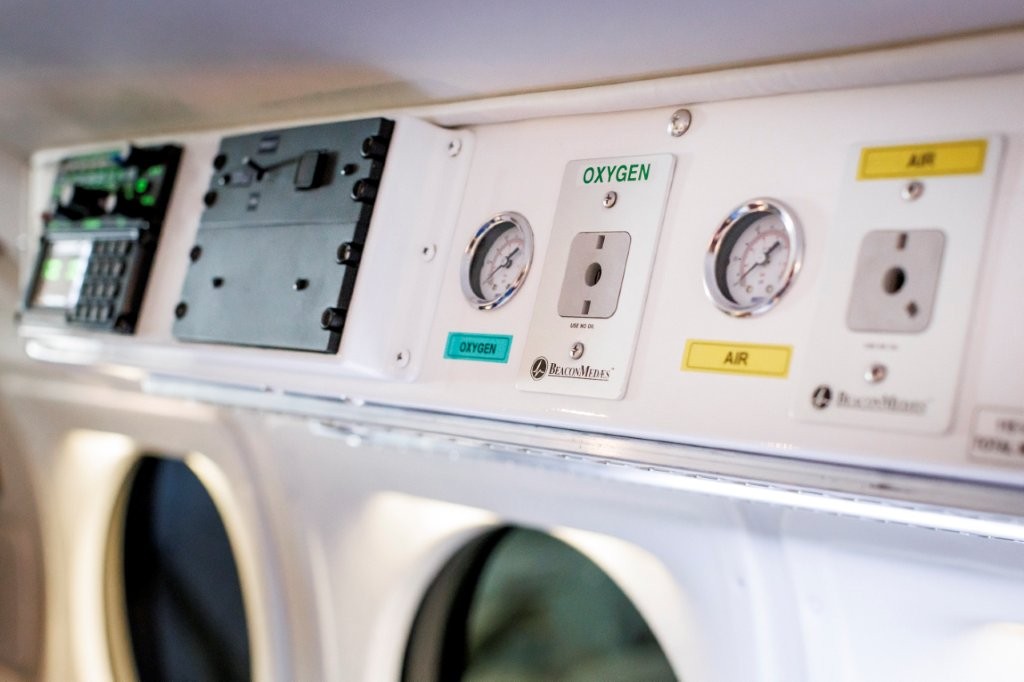

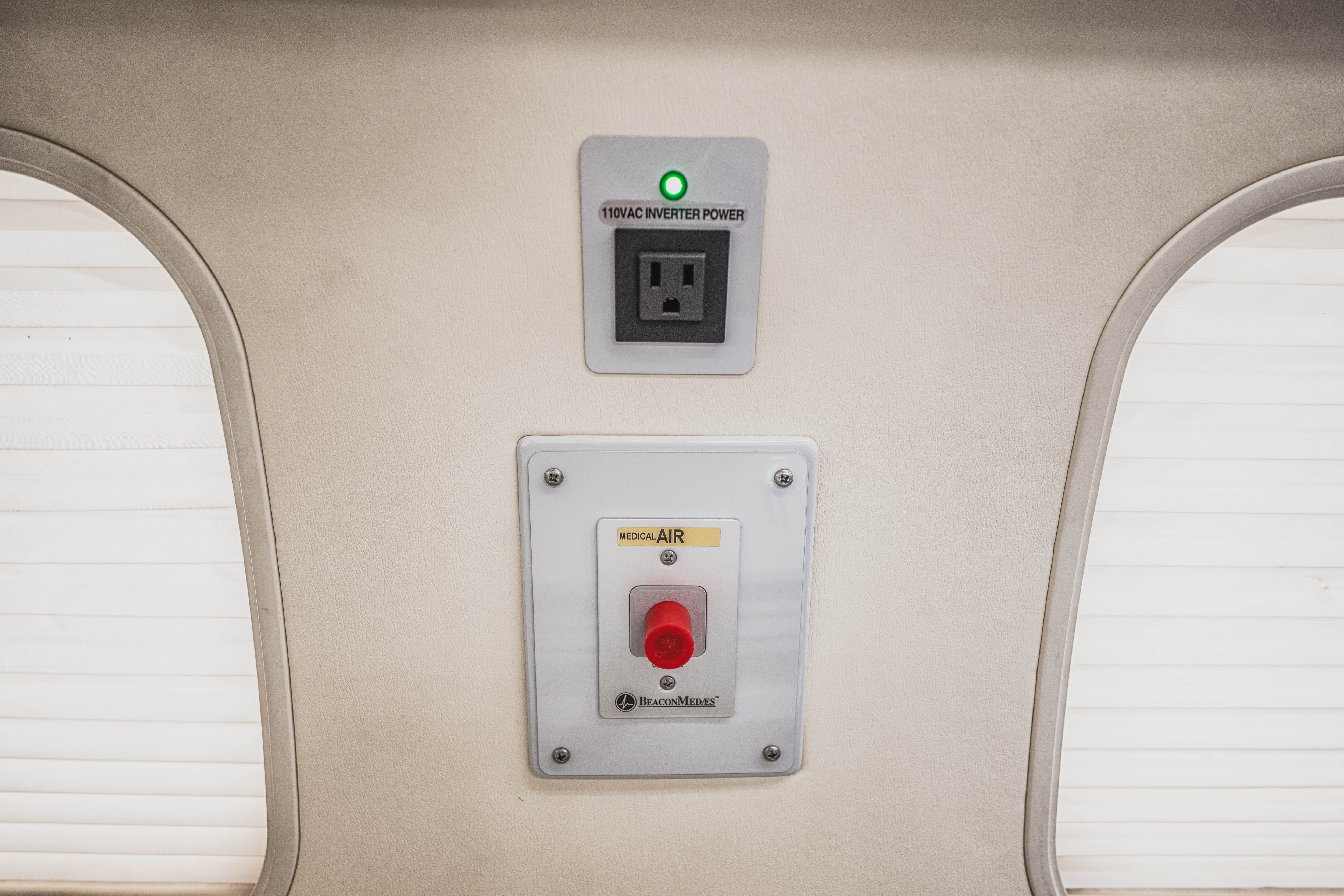

  • Sidewall pneumatic outlets/electrical outlets
  • Sky Connect Tracking System with MMU-II Dialer

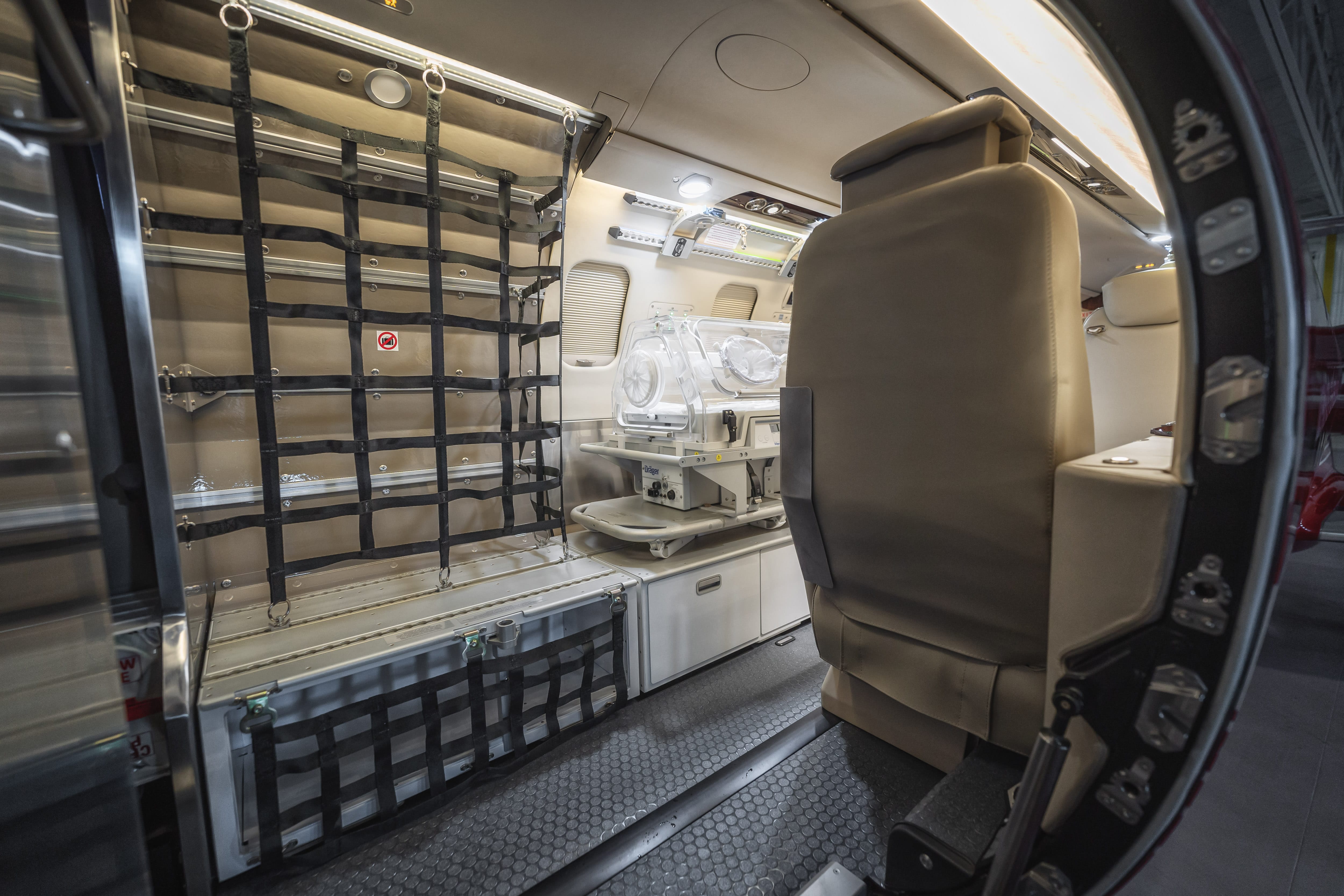

CESSNA CITATION CJ4

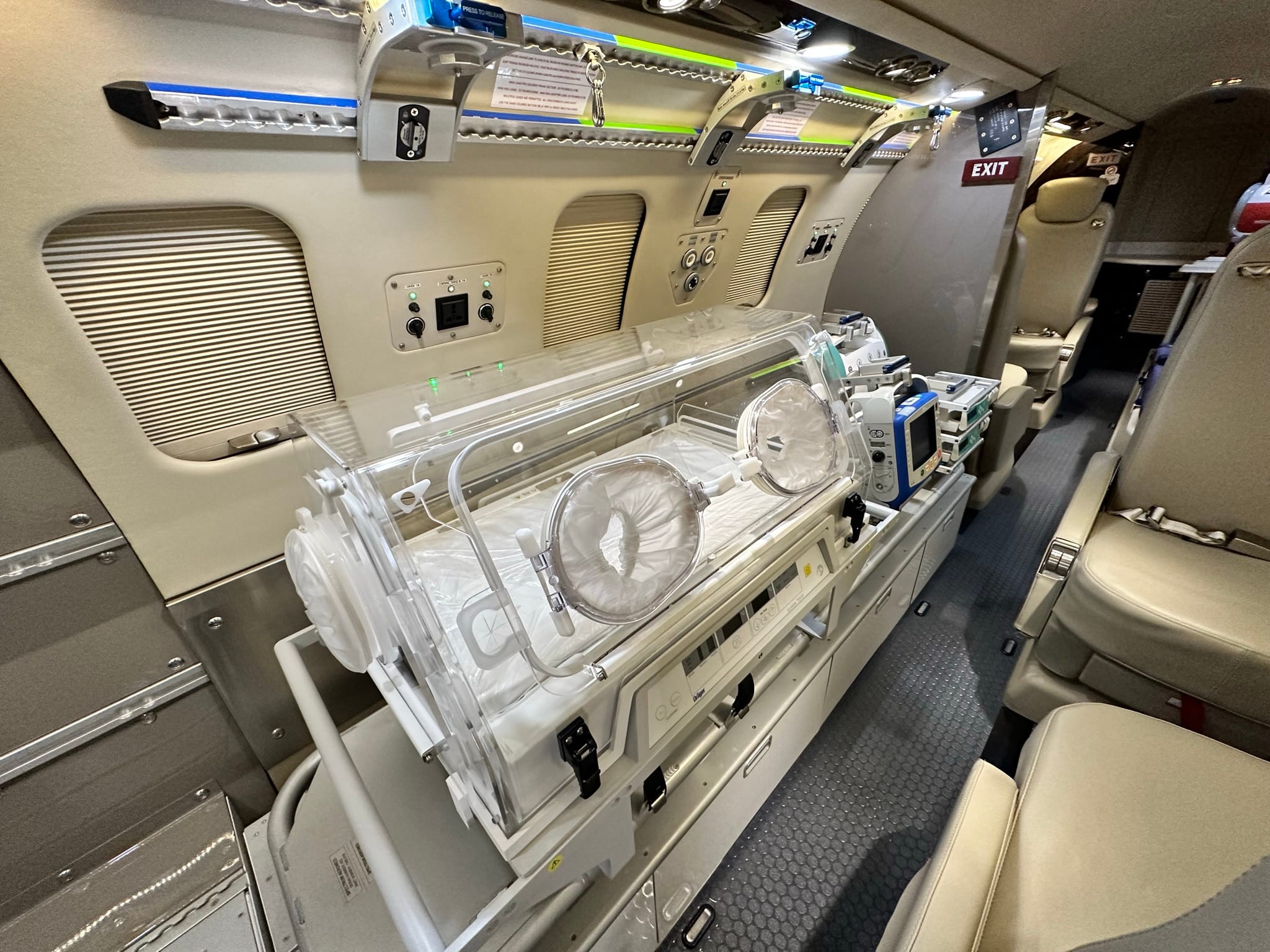

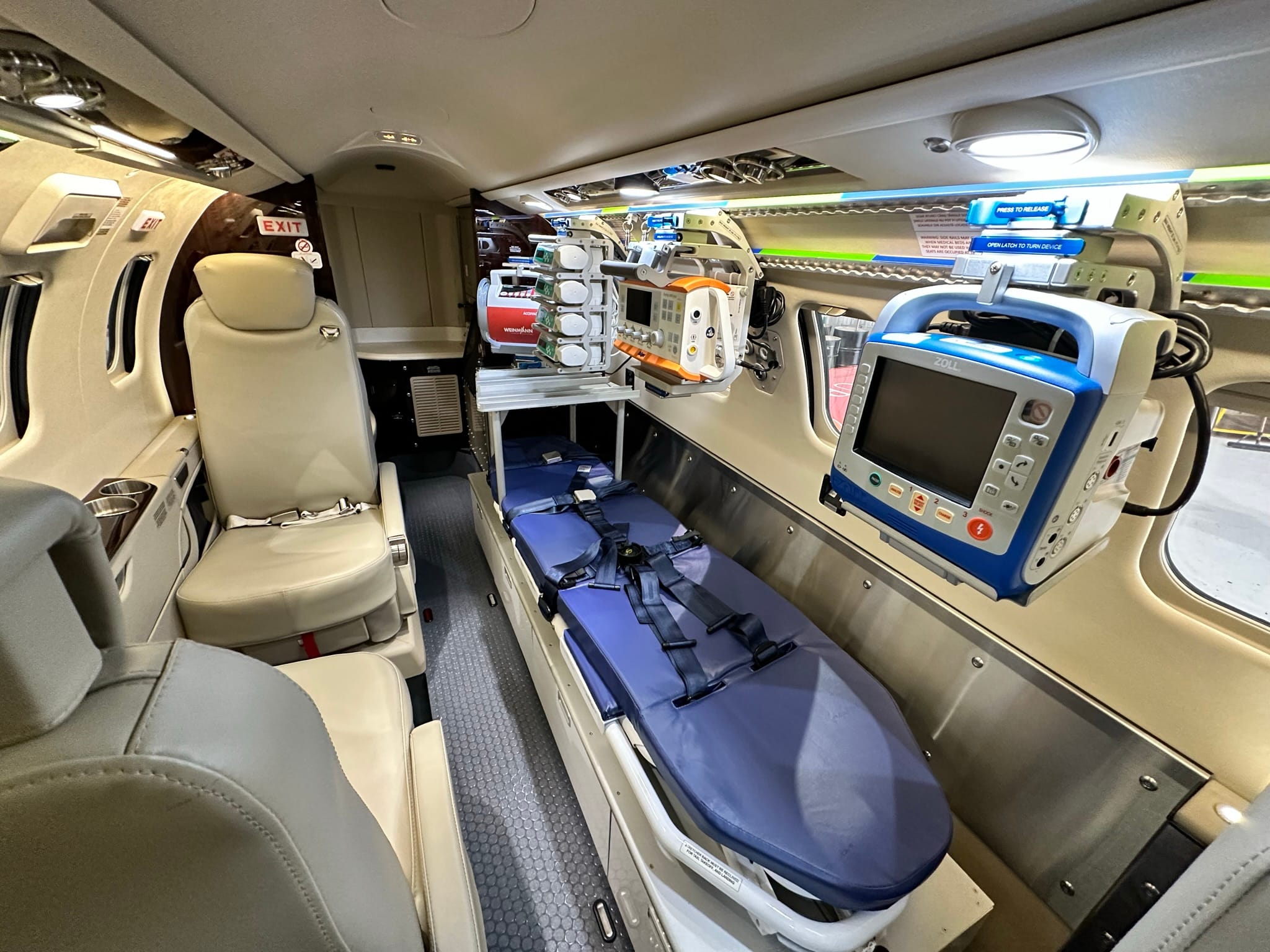

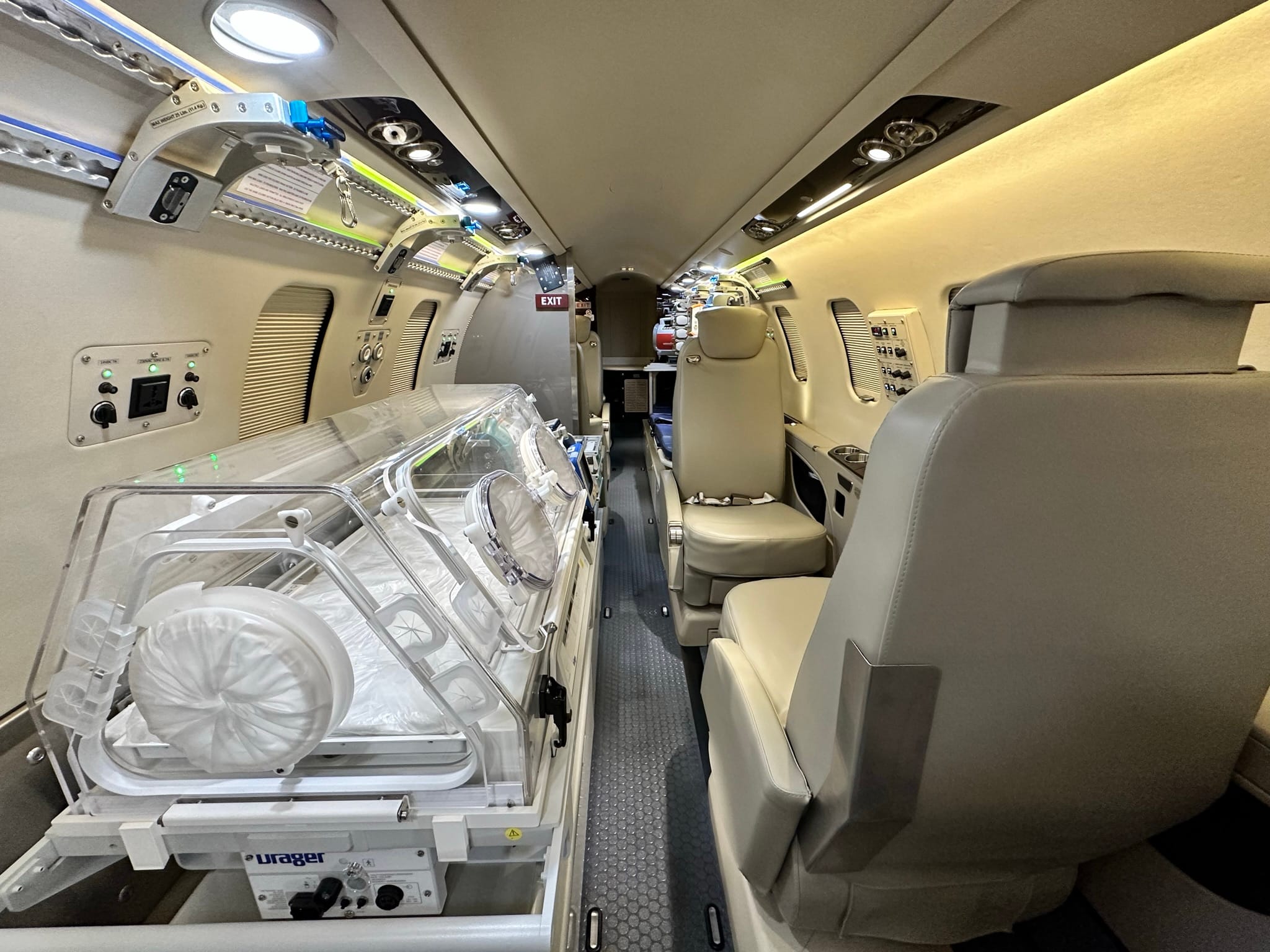

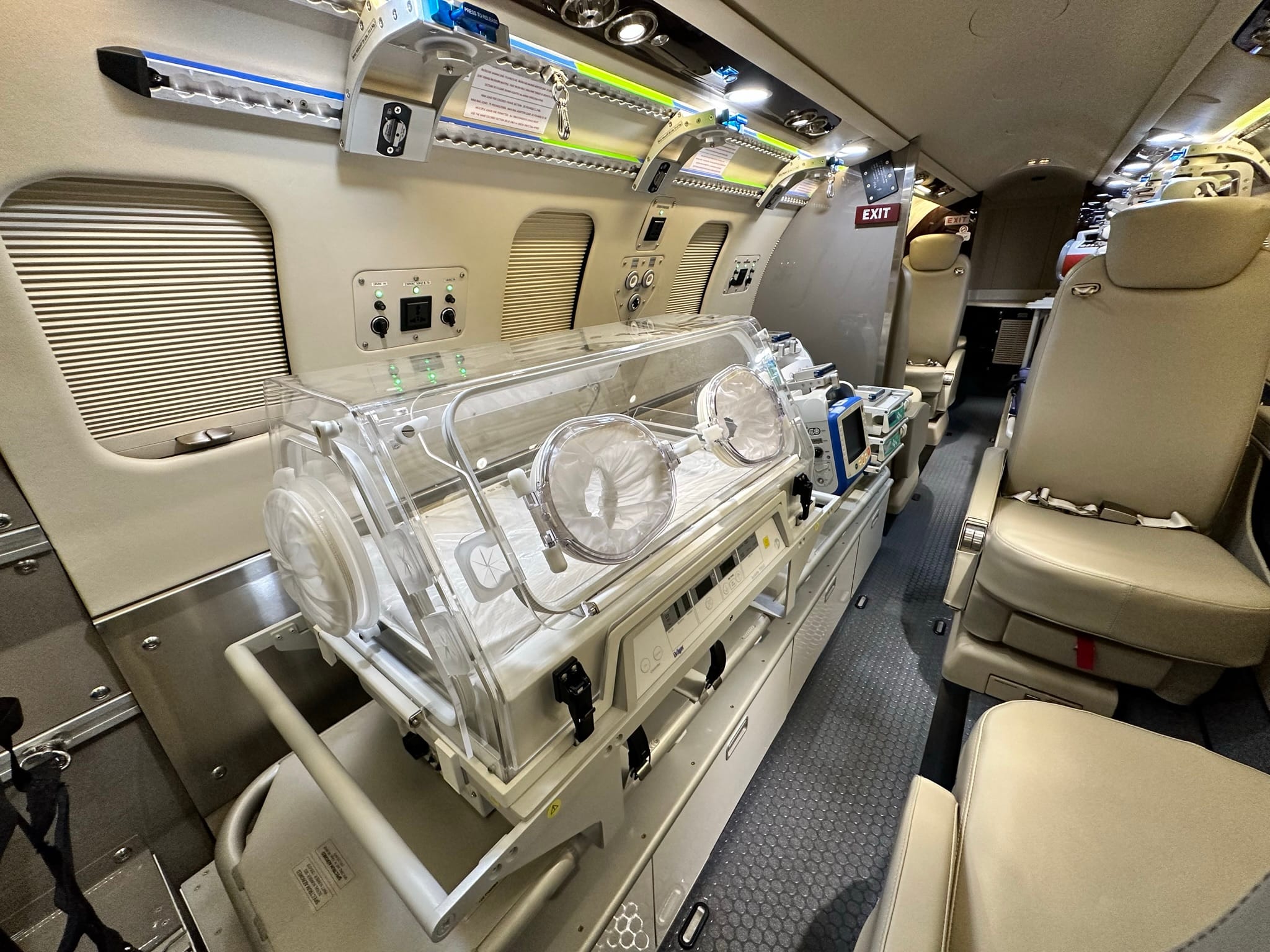

Cessna Citation CJ4 Air Medical Configuration - Single Bed + Neonatal

Aircraft Modifications & Performance Enhancements

  • Cabin intercom system with 2-way isolate and call functions
  • Ceiling Brownline track for medical mounts
  • Custom airshow logo
  • Customized cockpit/cabin USB charging station
  • Honeywell Sky Connect Tracker III Iridium Satcom system with MMU-II dialer
  • Loncoin medical flooring with foam backing
  • Seat covers with custom embroidery
  • Stainless steel partition covers
